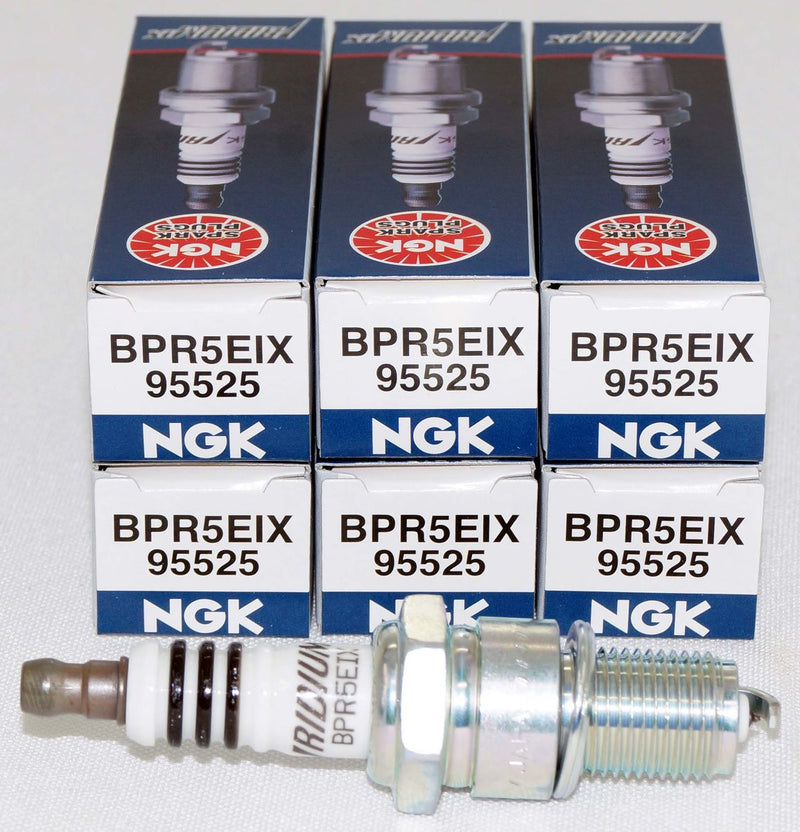

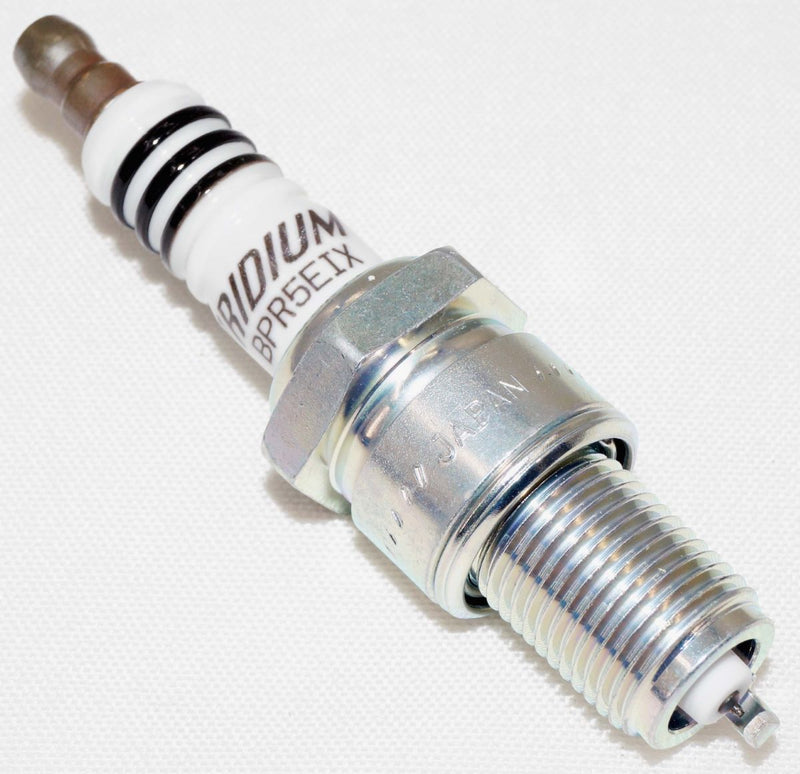

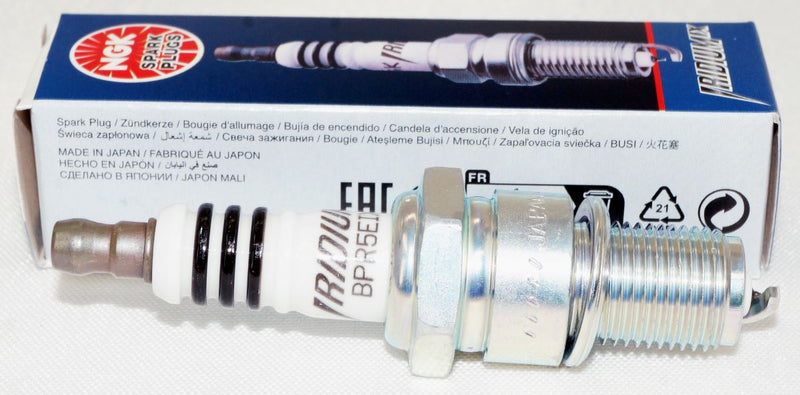

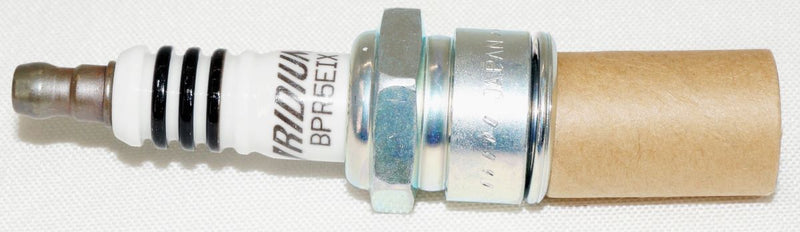

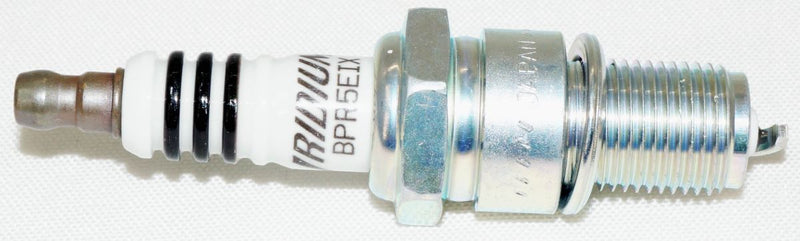

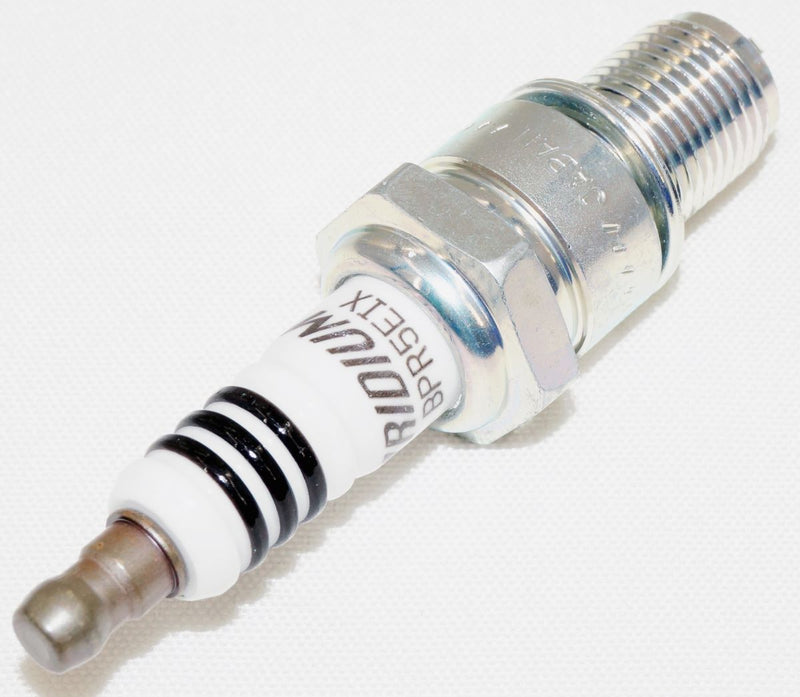

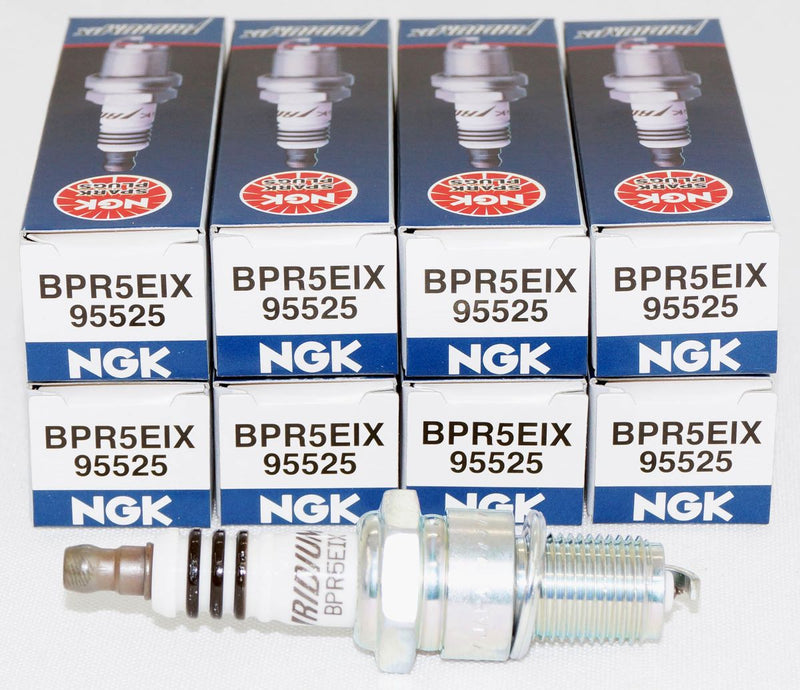

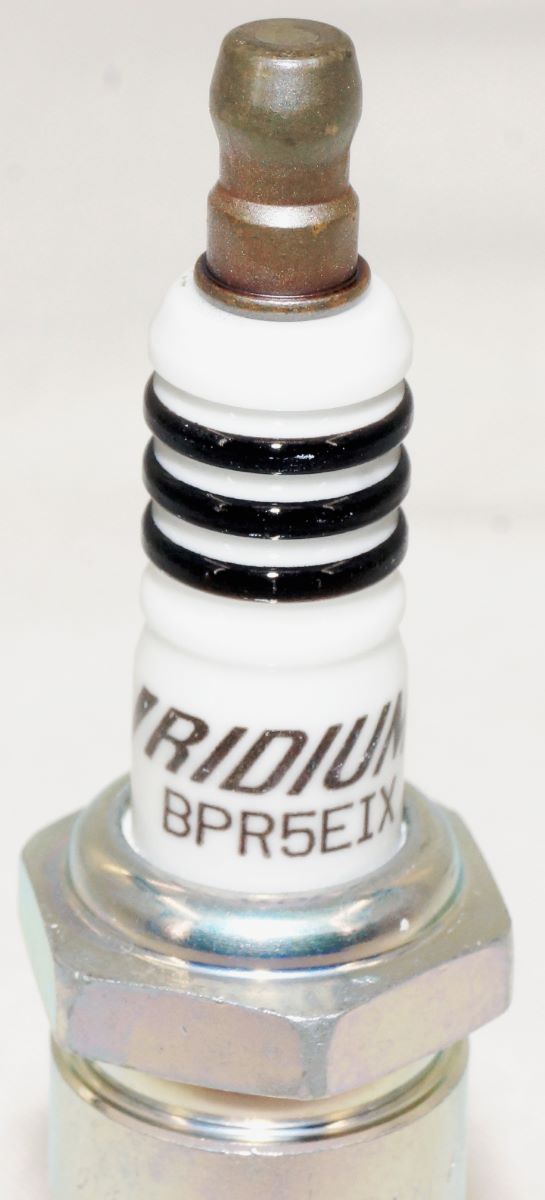

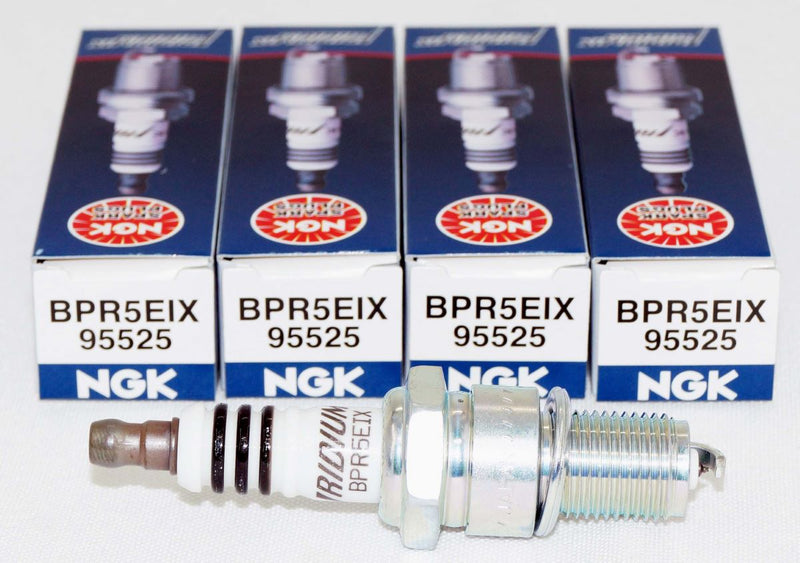

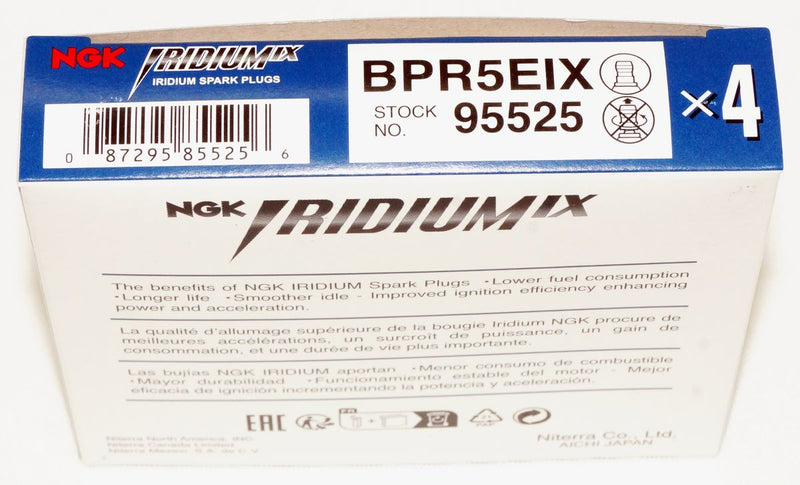

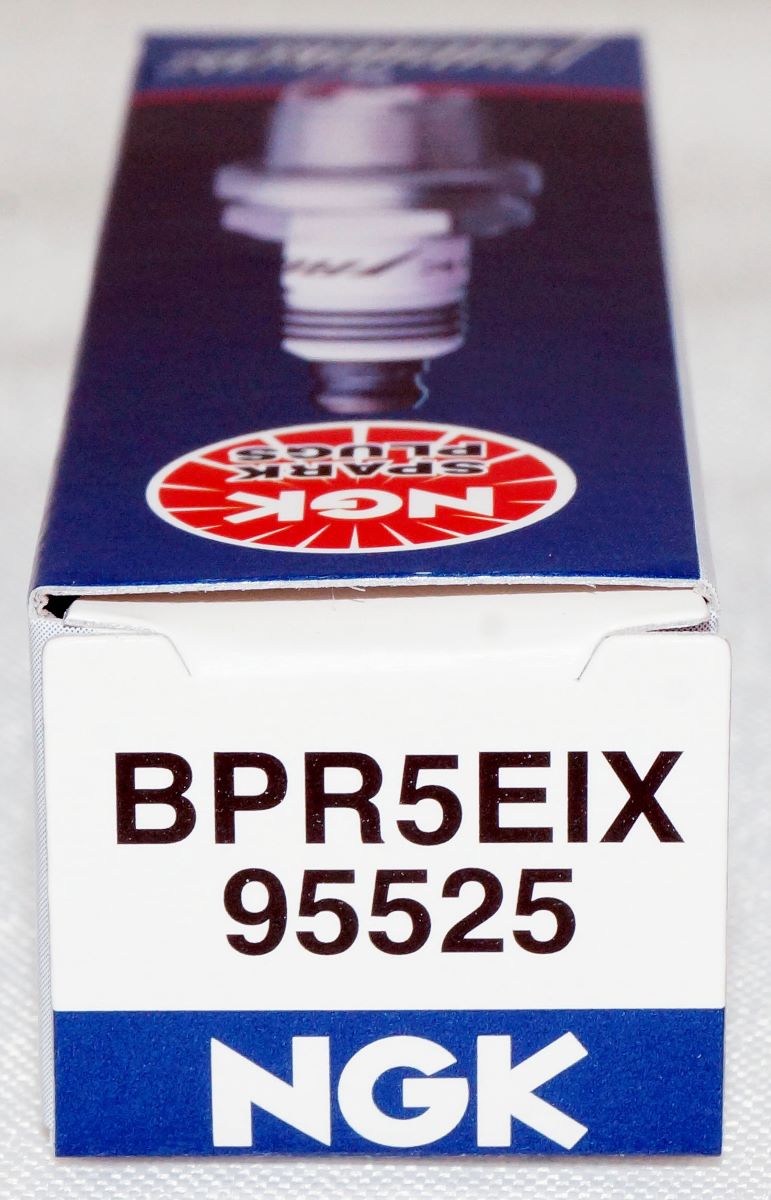

NGK 95525 BPR5EIX Iridium IX Spark Plug

NGK Iridium IX Spark Plug

NGK IX Iridium Series plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.

Trivalent metal plating provides superior anti-corrosion and anti-seizing properties

Corrugated ribs prevent flashover

Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer

Copper core aids in heat removal

Triple seals prevent leakage

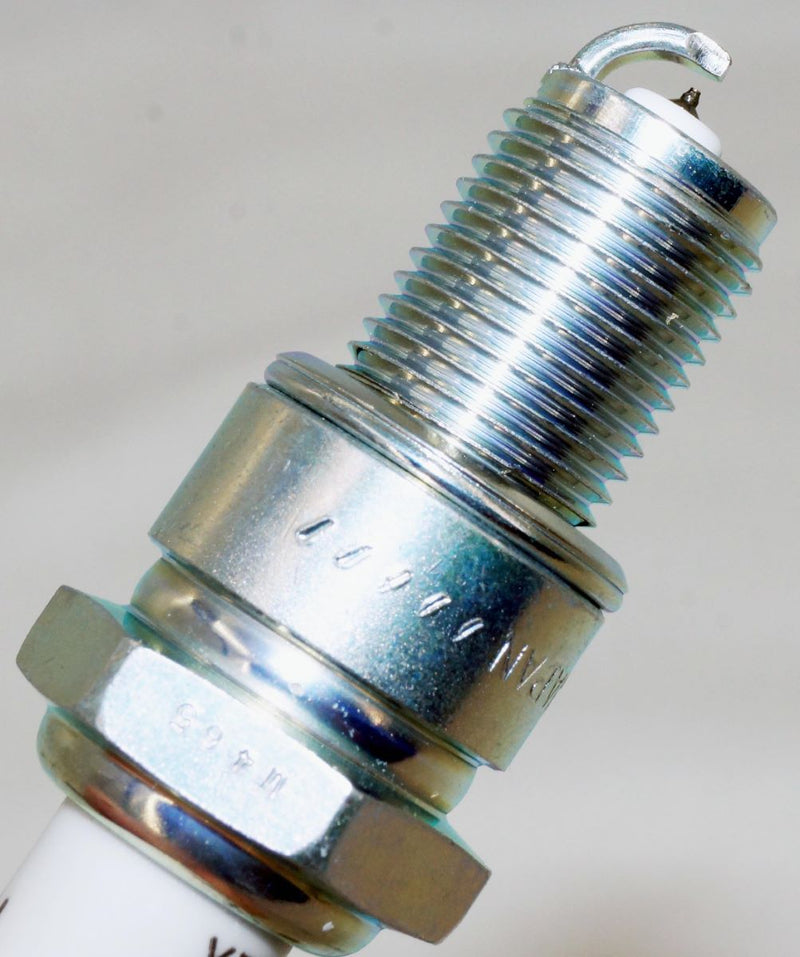

Shell
Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 19mm (3/4")
Hex Size: 13/16" (21mm)
Terminal Type: Solid
Gap: .031" (0.8mm)

Center Electrode
Material: Iridium
Type: Fine Wire
Size: 0.6mm
Projection: Projected

Ground Electrode
Material: Nickel
Type: Standard
Shape: Taper Cut
Quantity: 1

Specifications
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 5
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

• Mfg Part No: 95525 BPR5EIX-95525
• Related Part No: 95525 BPR5EIX-95525
