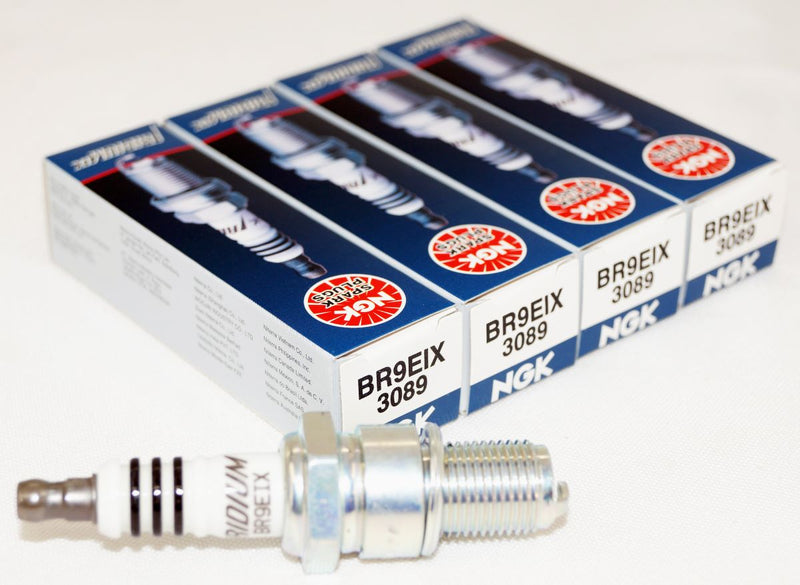

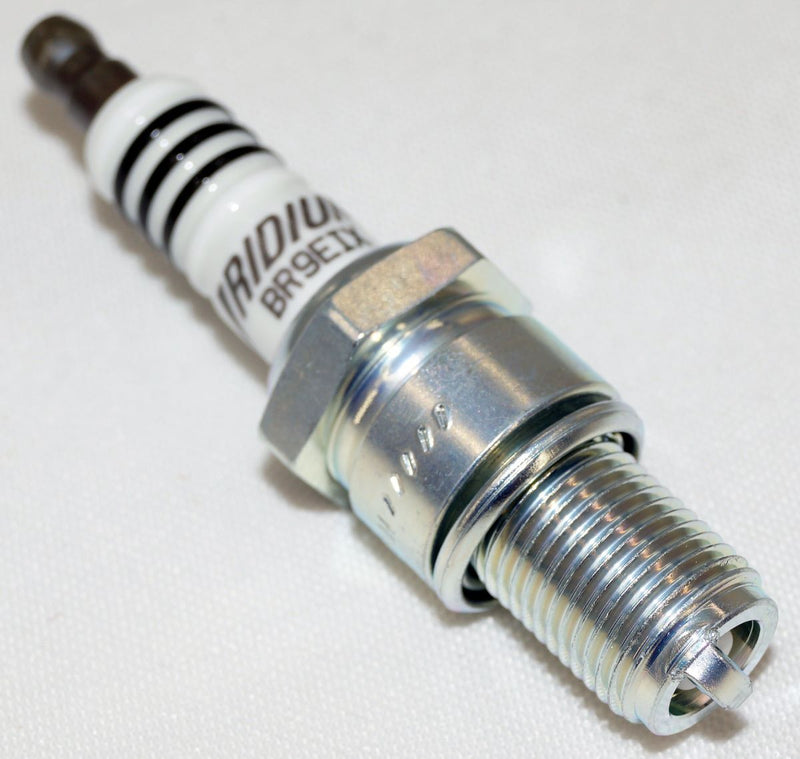

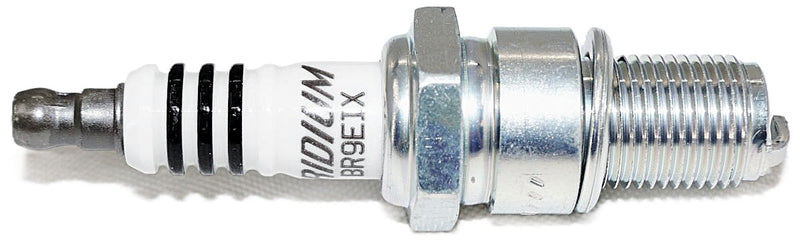

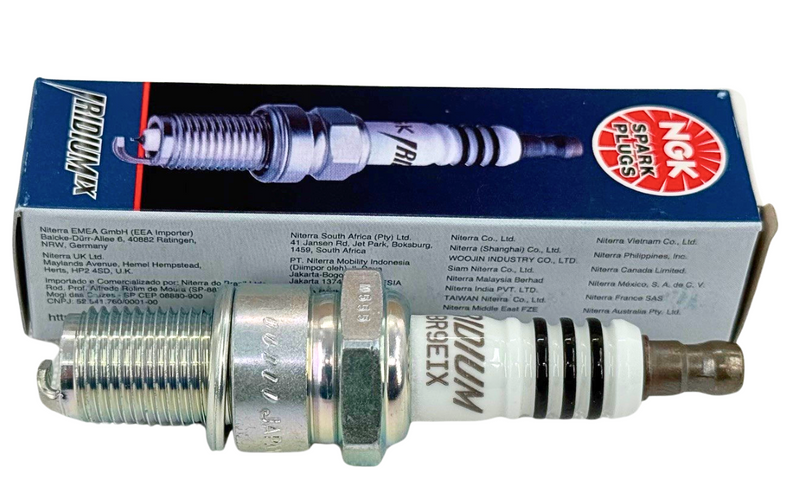

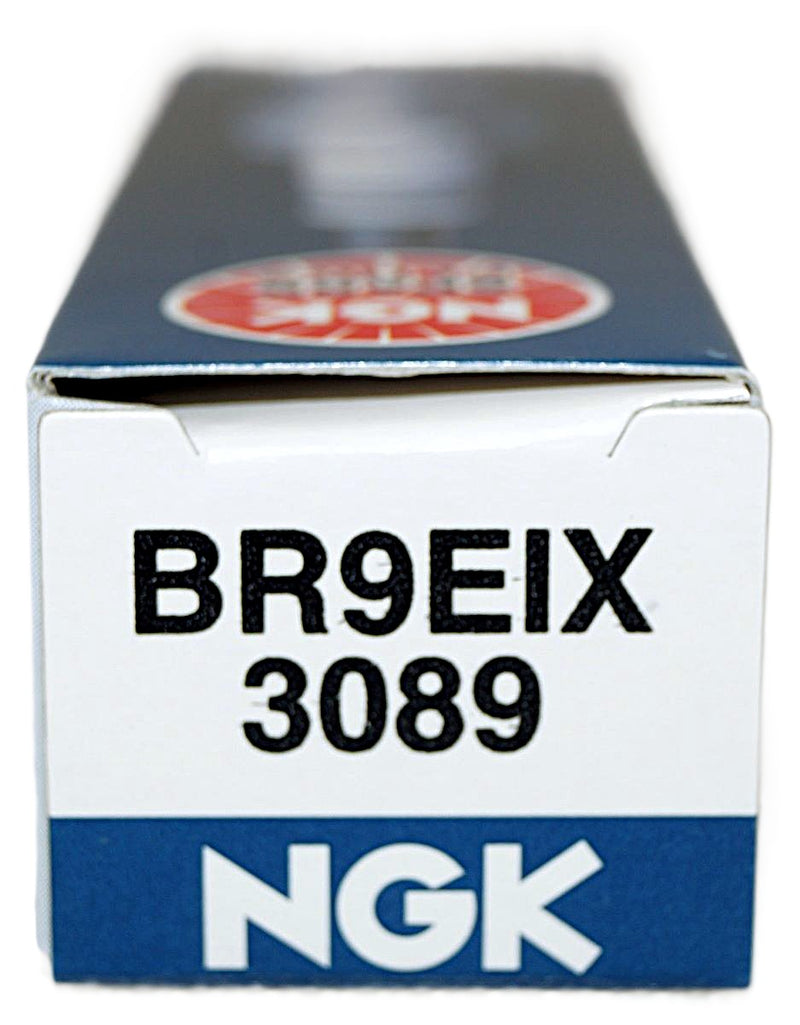

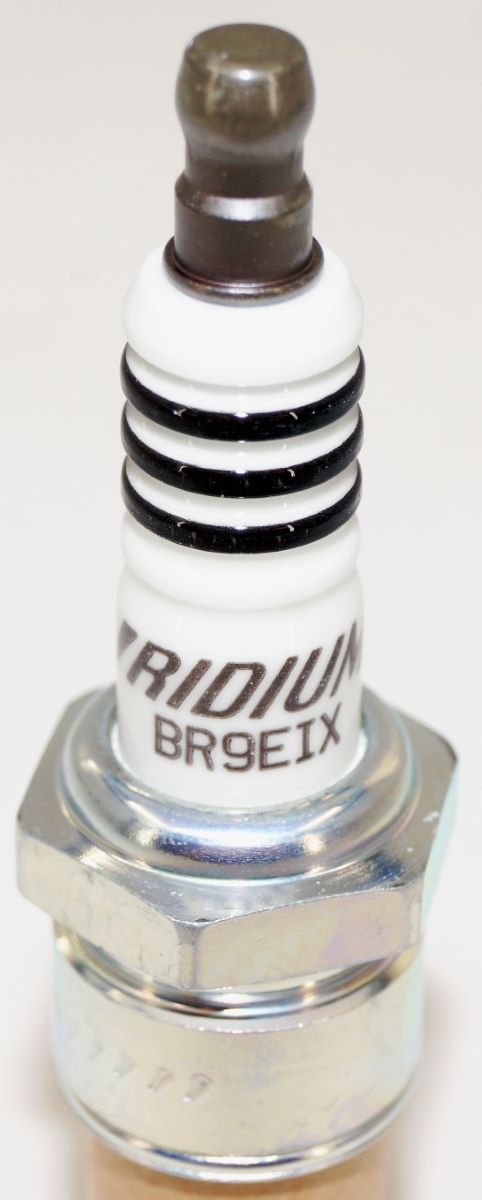

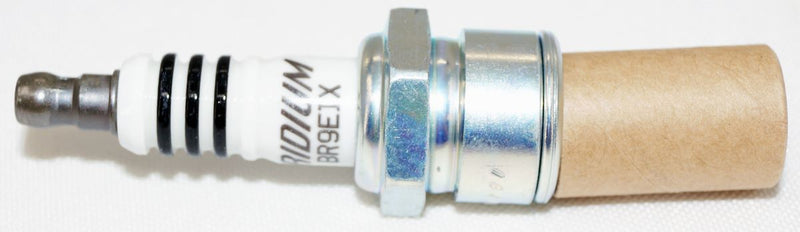

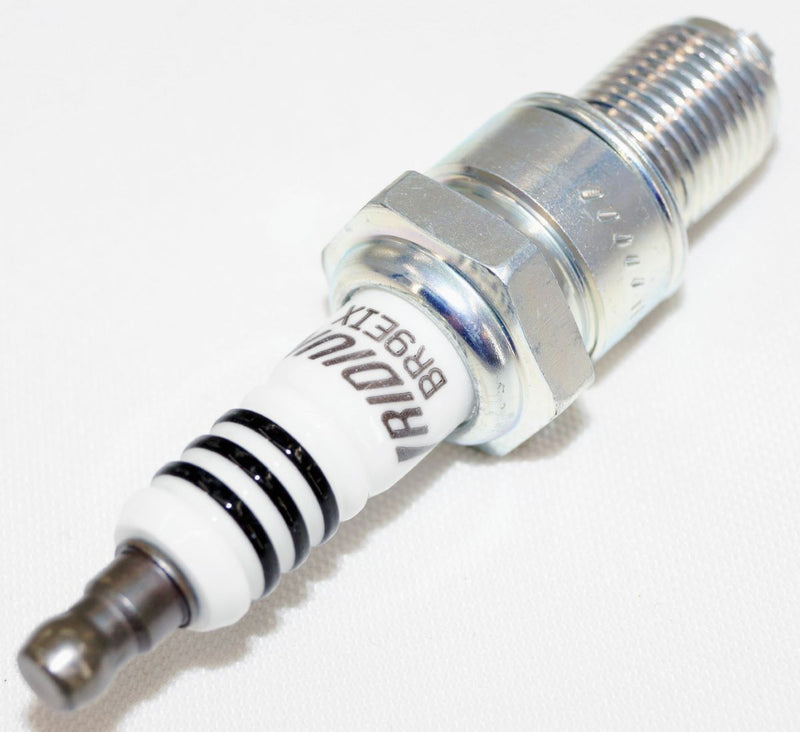

NGK 3089 Iridium Spark Plug Solid Tip BR9EIX Arctic Cat Polaris Yamaha

3089 / BR9EIX SOLID TIP - NGK IX Iridium Series plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Copper core aids in heat removal
Triple seals prevent leakage

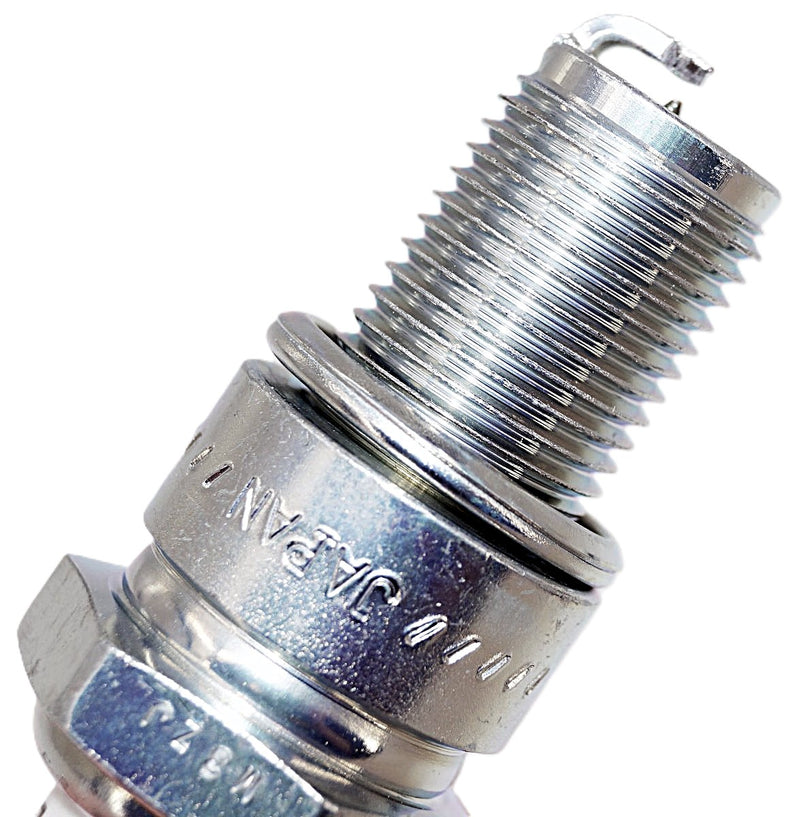

Shell
Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 19mm (3/4")
Hex Size: 13/16" (21mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .031" (0.8mm)

Center Electrode
Material: Iridium
Type: Fine Wire
Size: 0.6mm
Projection: Non-Projected

Ground Electrode
Material: Nickel
Type: Standard
Shape: Taper Cut

Specifications
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 9
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

• Mfg Part No: 3089 BR9EIX-SOLID
• Related Part No: BR9EIX 3089 BR9EIX-SOLID
