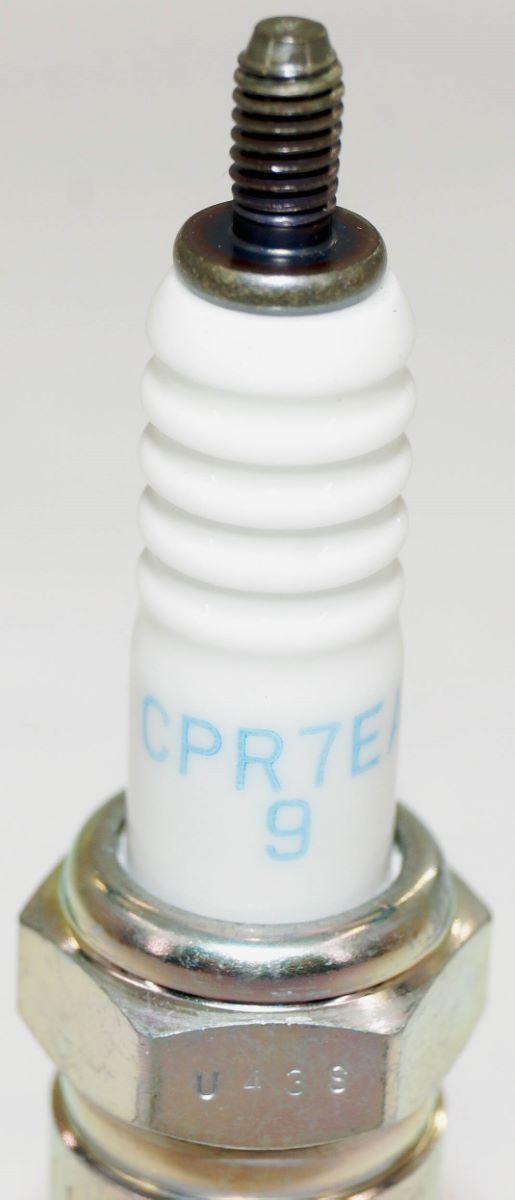

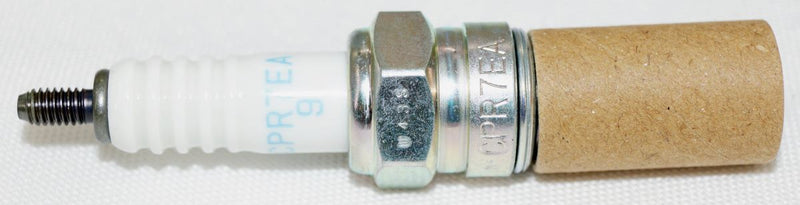

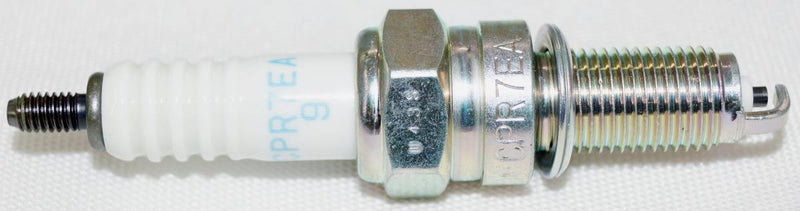

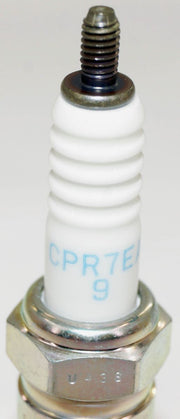

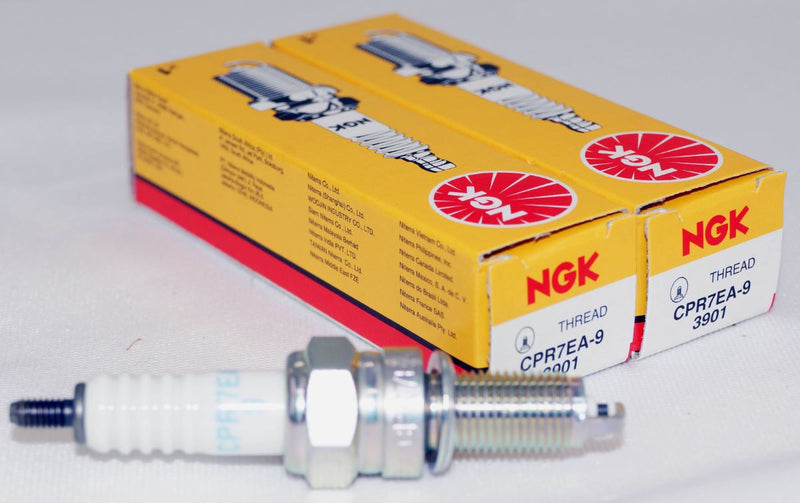

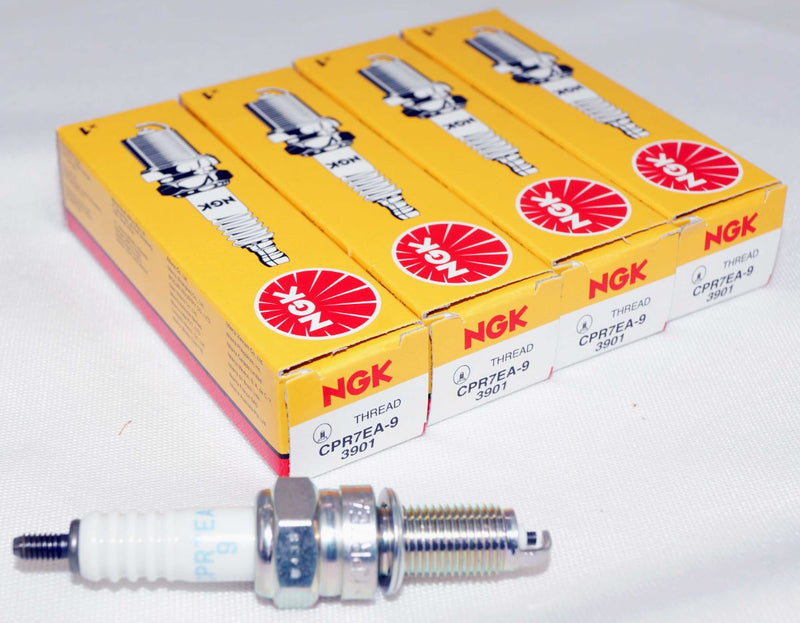

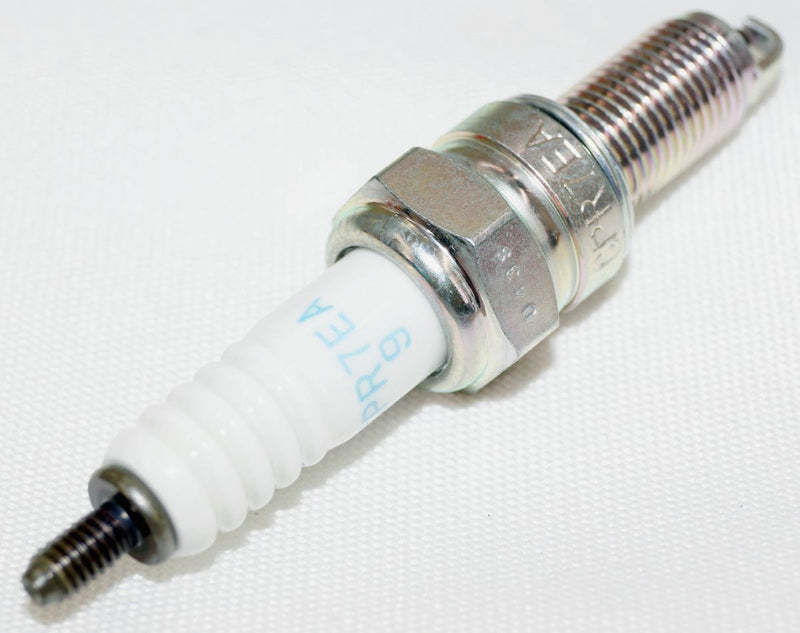

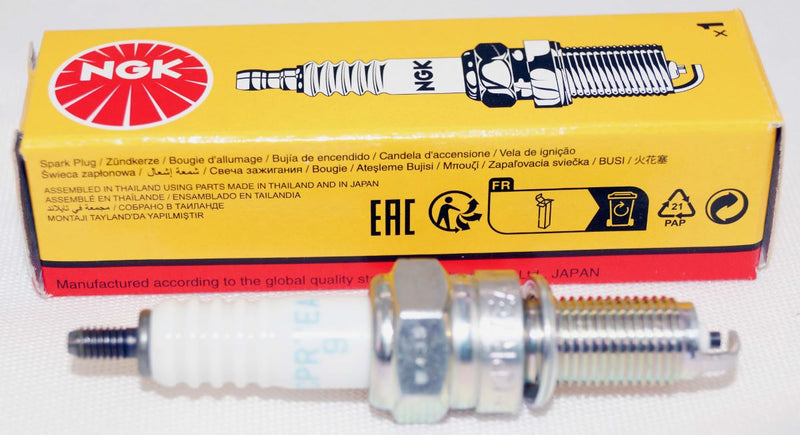

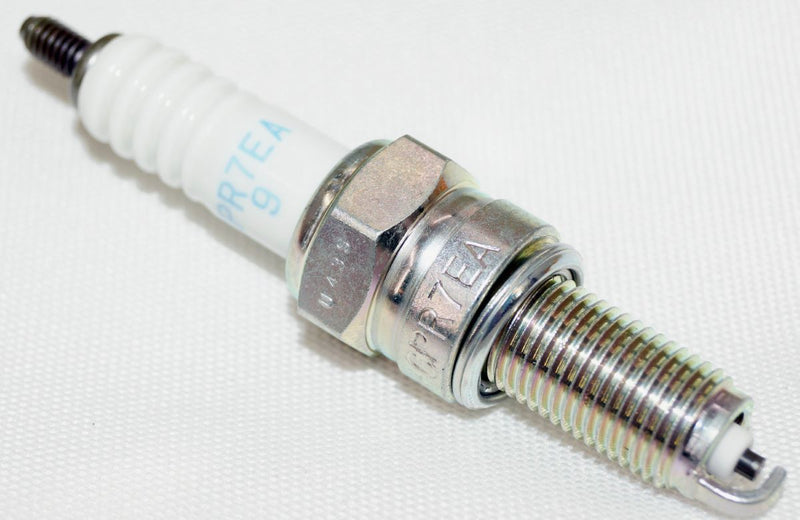

NGK 3901 Spark Plug CPR7EA9 Kawasaki Yamaha Honda

NGK standard plugs are constructed for longer life and optimum performance. Trivalent metal plating provides superior anti-corrosion and anti-seizing properties. Corrugated ribs prevent flashover. Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer. Copper core aids in heat removal. Triple seals prevent leakage.

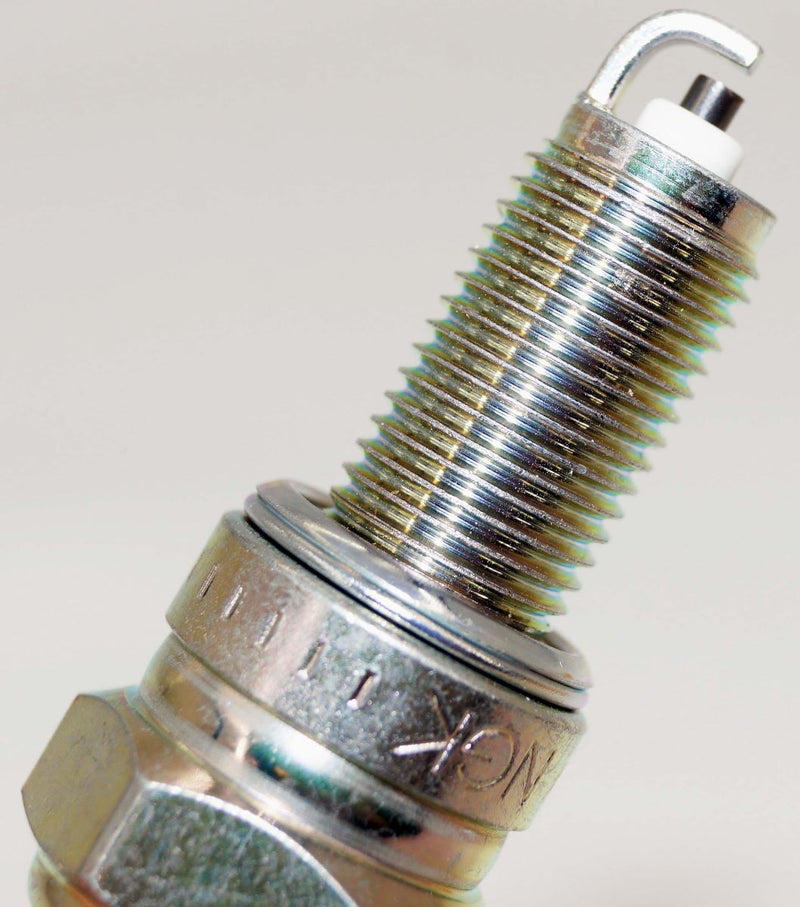

Shell
Thread Diameter: 10mm
Thread Pitch: 1.0mm
Seat Type: Gasket
Reach: 19mm (3/4")
Hex Size: 5/8" (16mm)
Terminal Type: Threaded Stud
Overall Height: ISO
Gap: .035" (0.9mm)

Center Electrode
Material: Nickel
Type: Standard
Size: 2.5mm
Projection: Projected

Ground Electrode
Material: Nickel
Type: Standard

Specifications
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 7
Torque Specs: Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.

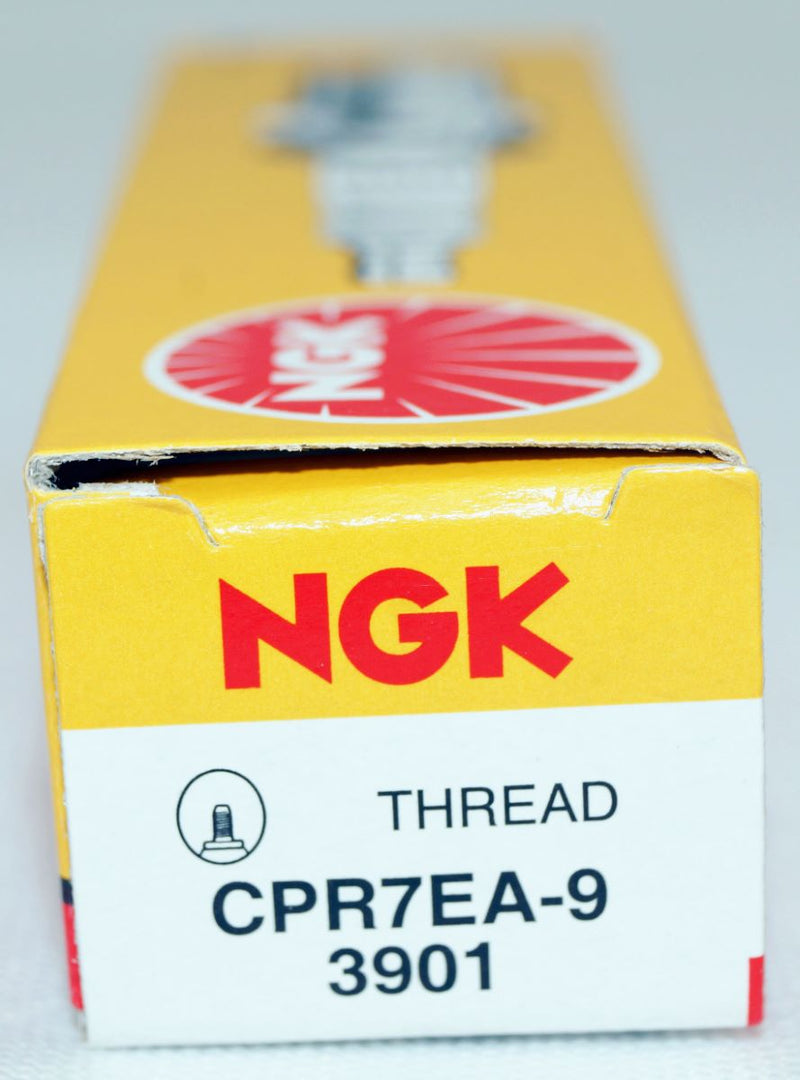

• Mfg Part No: 3901 CPR7EA9
• Related Part No: 3901 CPR7EA9
