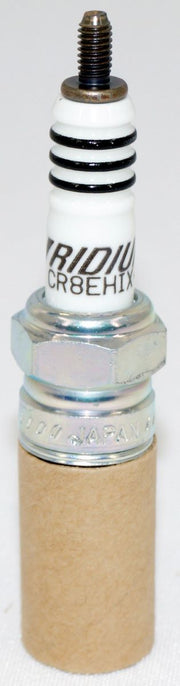

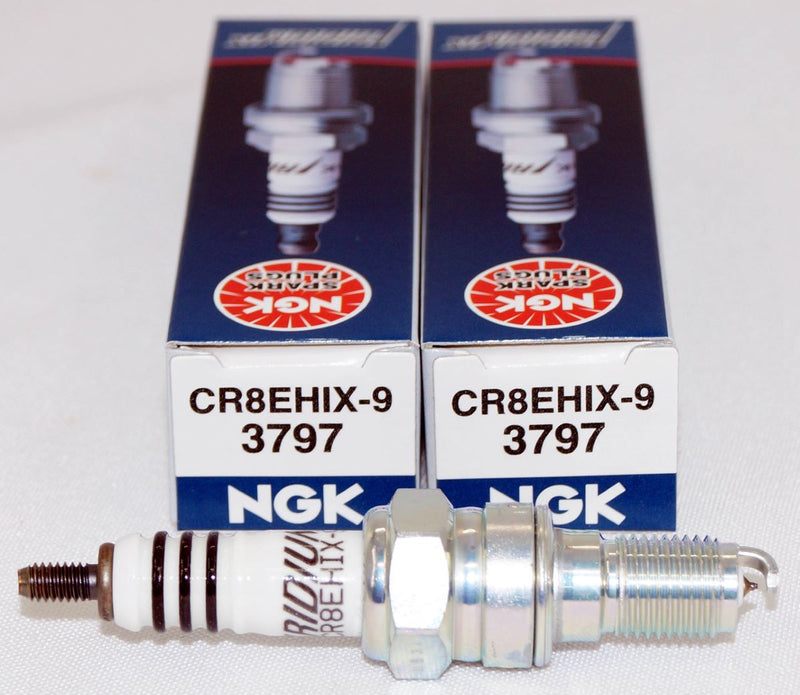

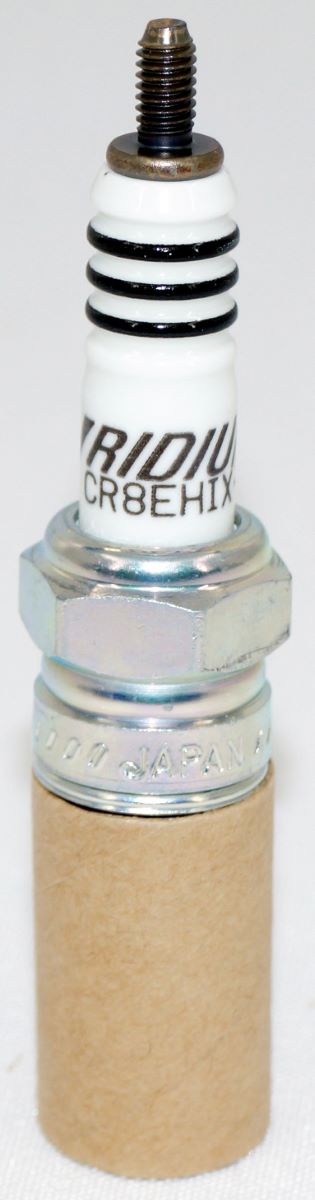

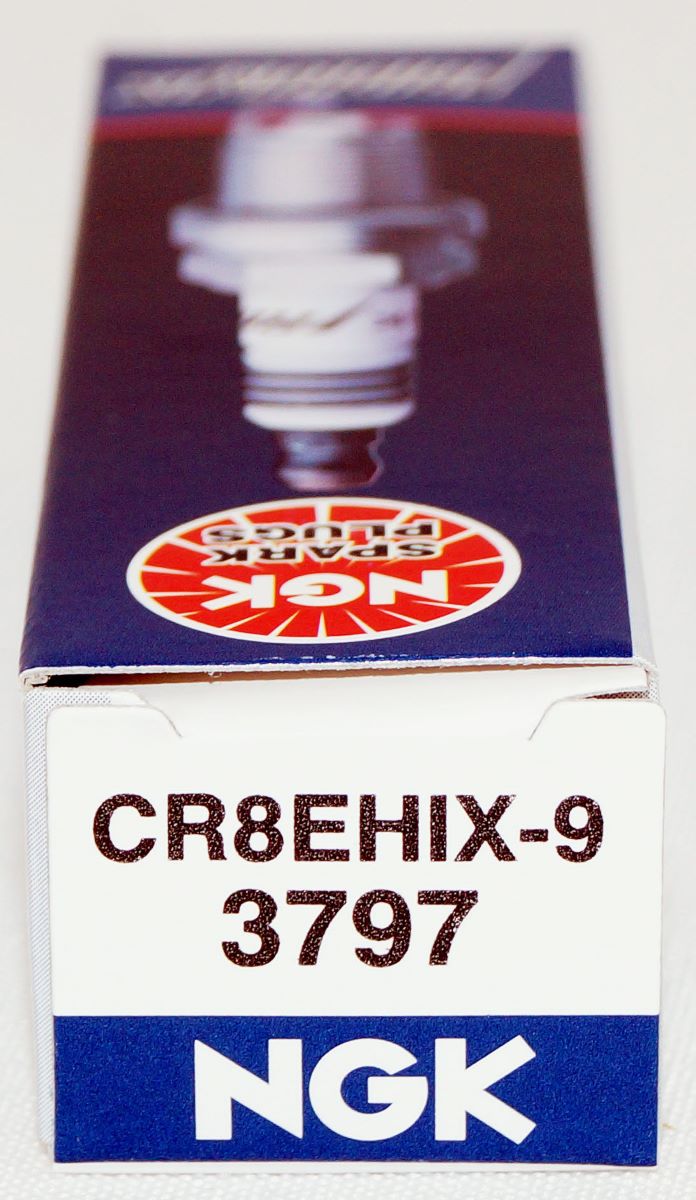

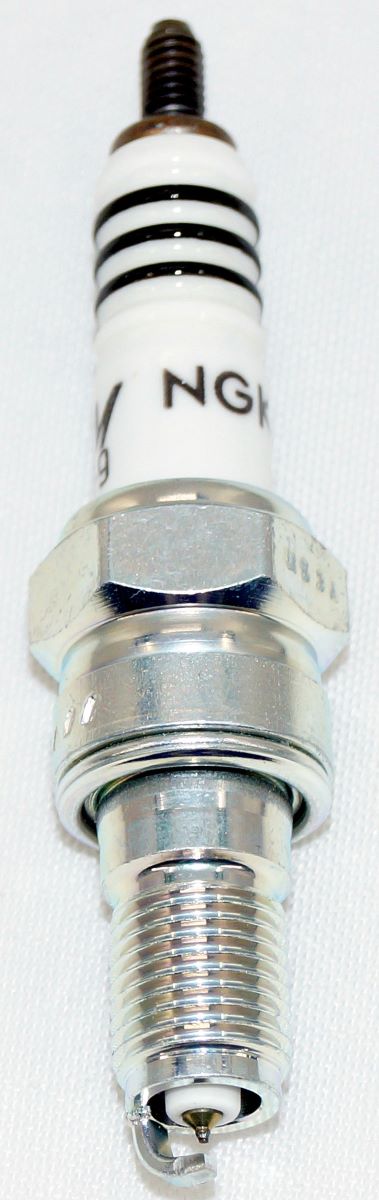

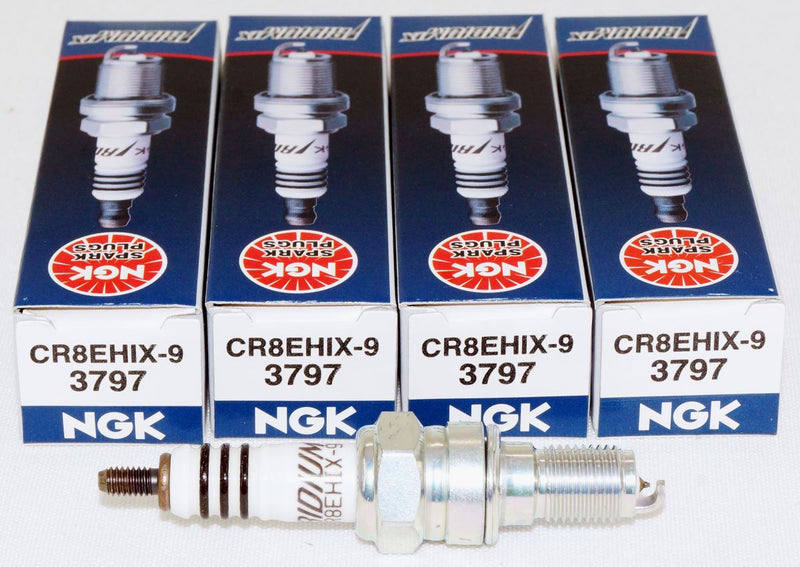

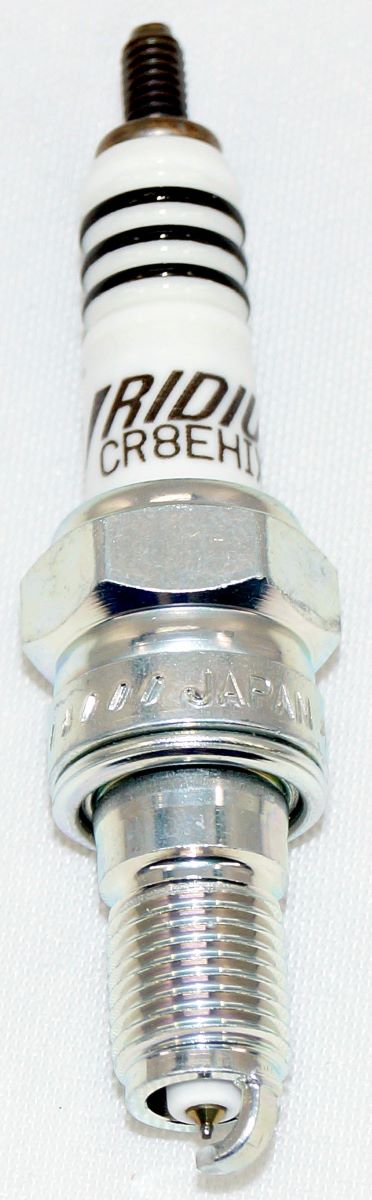

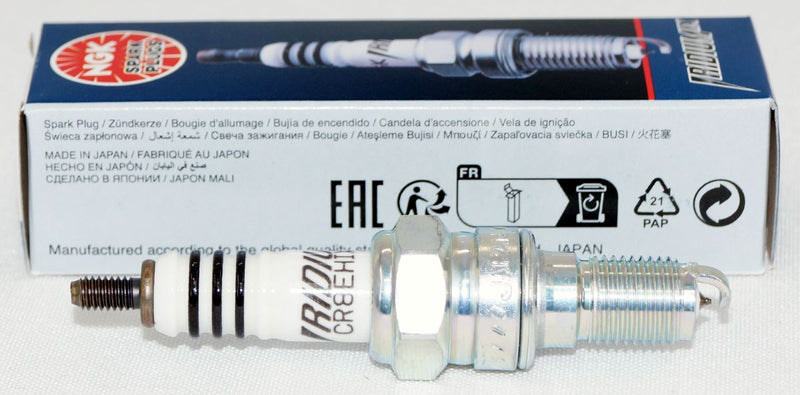

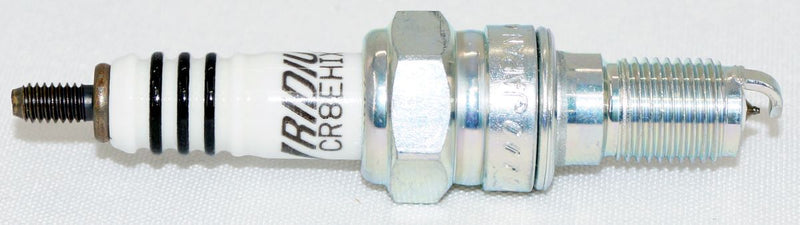

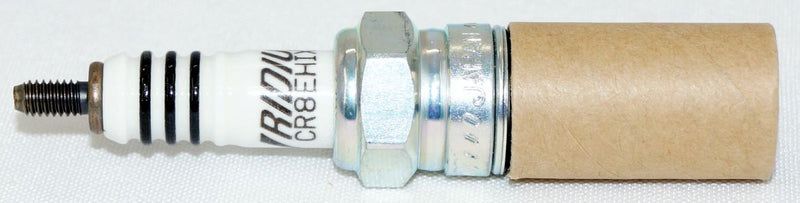

NGK 3797 Iridium Spark Plug CR8EHIX9 fits some Honda Motorcycles

3797 CR8EHIX9 - NGK IX Iridium Series plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Copper core aids in heat removal
Triple seals prevent leakage

Shell
• Thread Diameter: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Reach: 19mm (3/4")
• Hex Size: 5/8" (16mm)
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: .035" (0.9mm)

Center Electrode
• Material: Iridium
• Type: Fine Wire
• Size: 0.6mm

Ground Electrode
• Material: Nickel
• Type: Standard
• Shape: Taper Cut

Specifications
• Resistor: Yes
• Resistor Value: 5k Ohm
• Heat Range: 8
• Features: 12.7mm Threaded Reach
• Torque Specs: Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.

• Mfg Part No: 3797 CR8EHIX9
• Related Part No: 3797 CR8EHIX9
