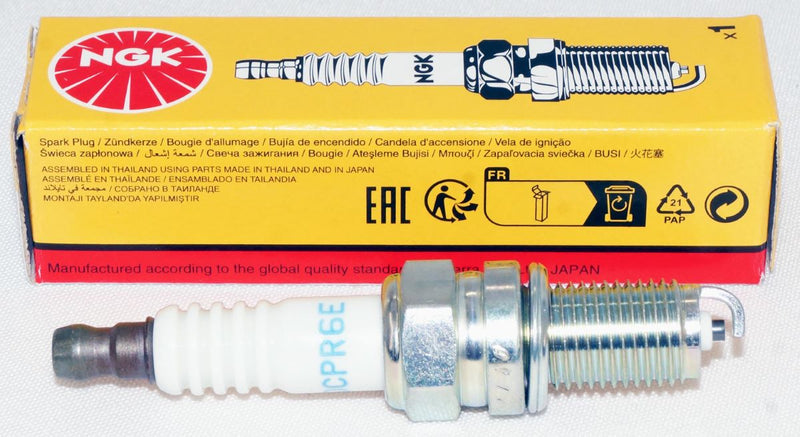

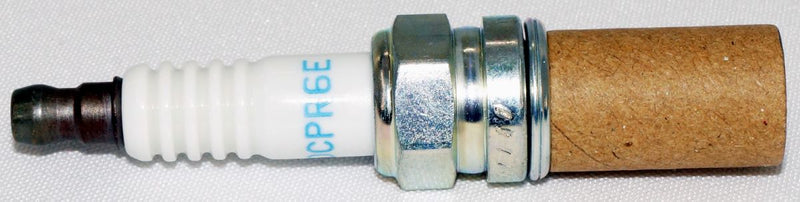

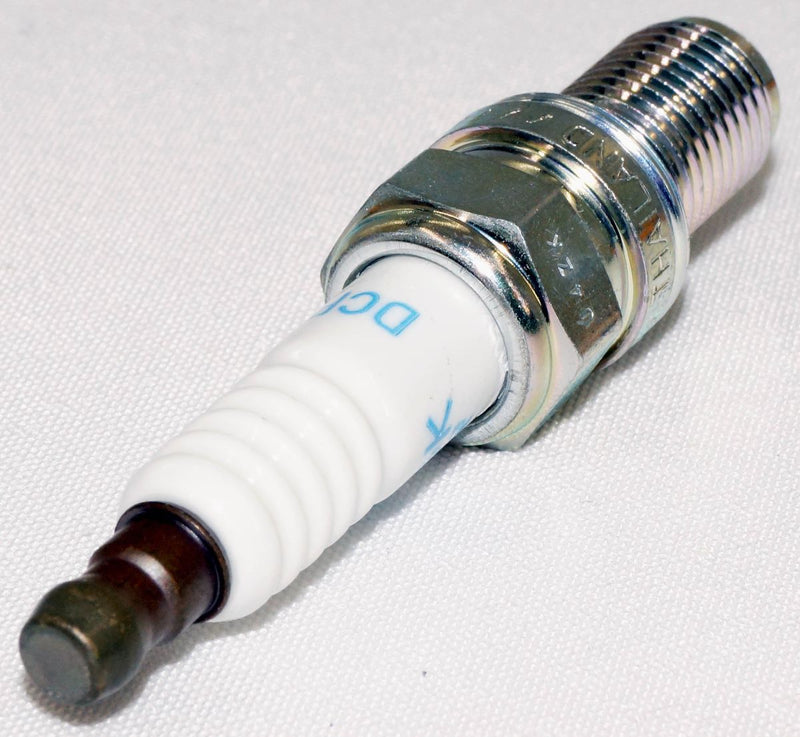

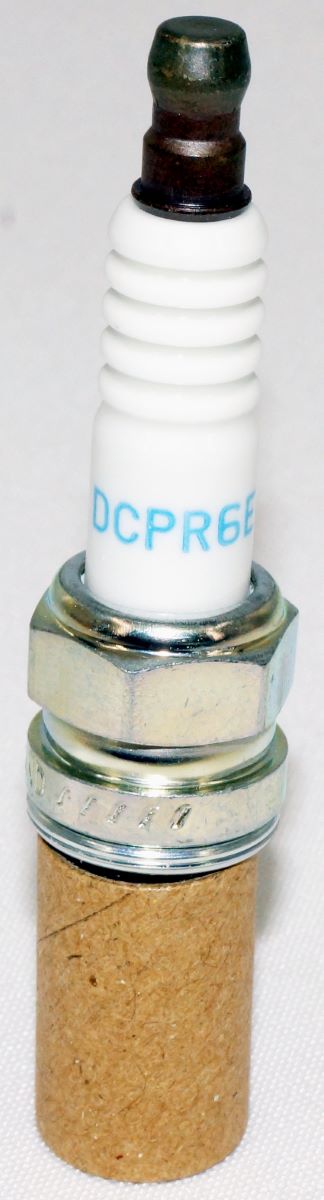

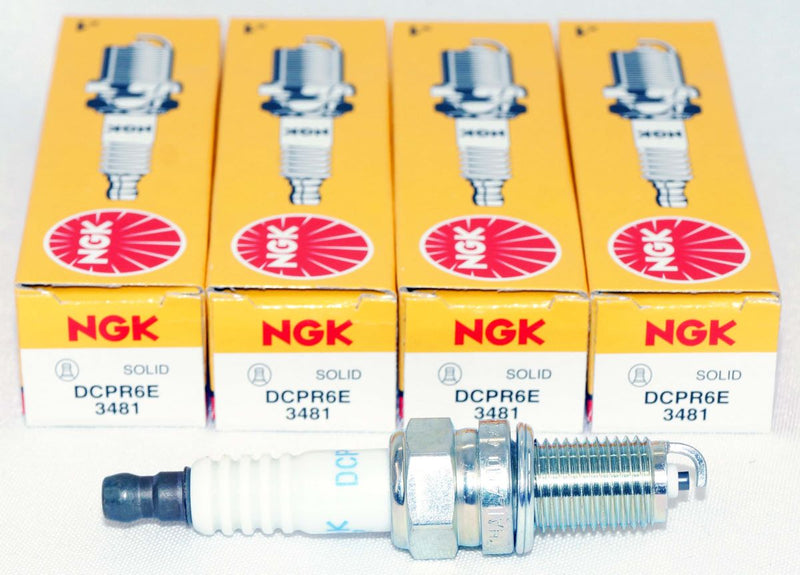

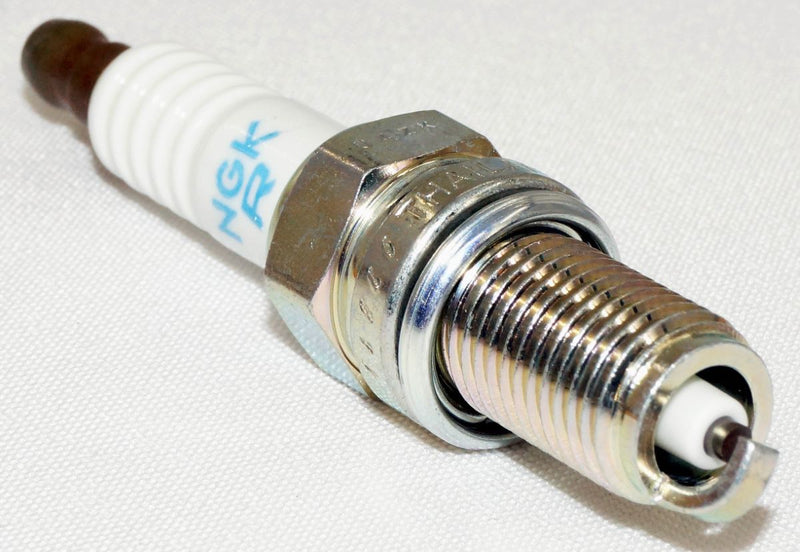

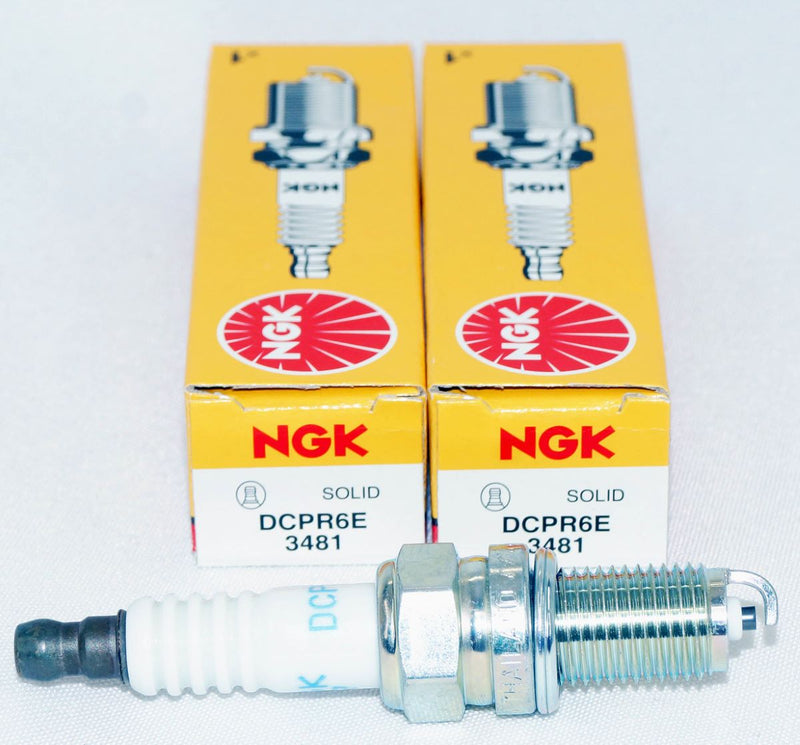

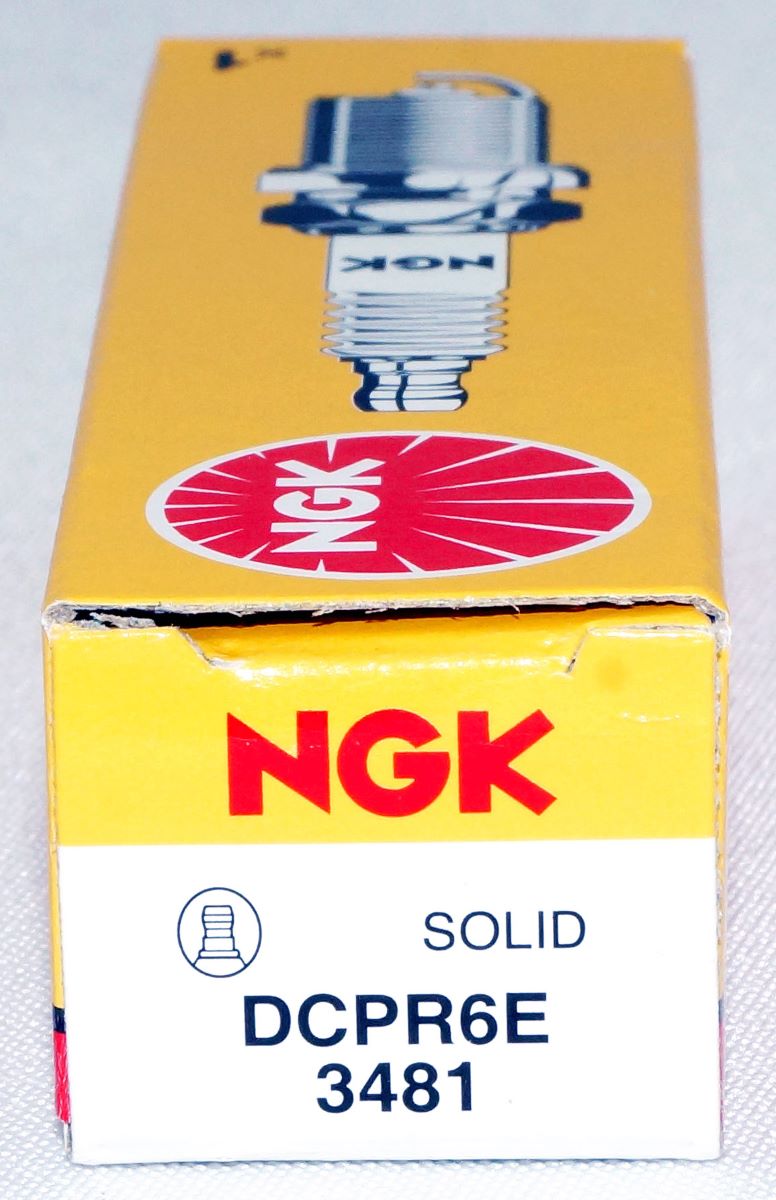

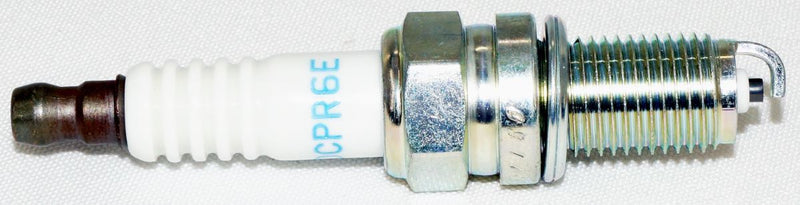

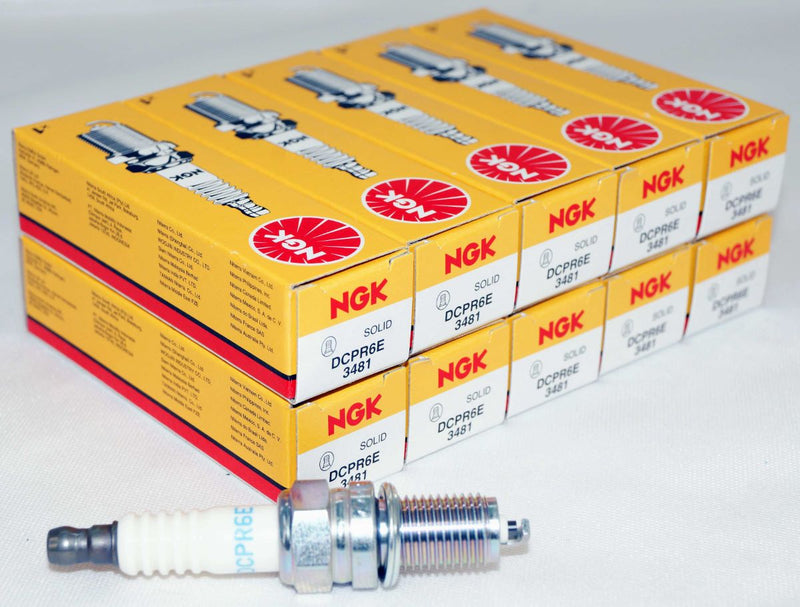

NGK 3481 Nickel Spark Plug DCPR6E Solid Tip

3481 / DCPR6E Solid Tip - NGK standard plugs are constructed for longer life and optimum performance.
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Copper core aids in heat removal
Triple seals prevent leakage

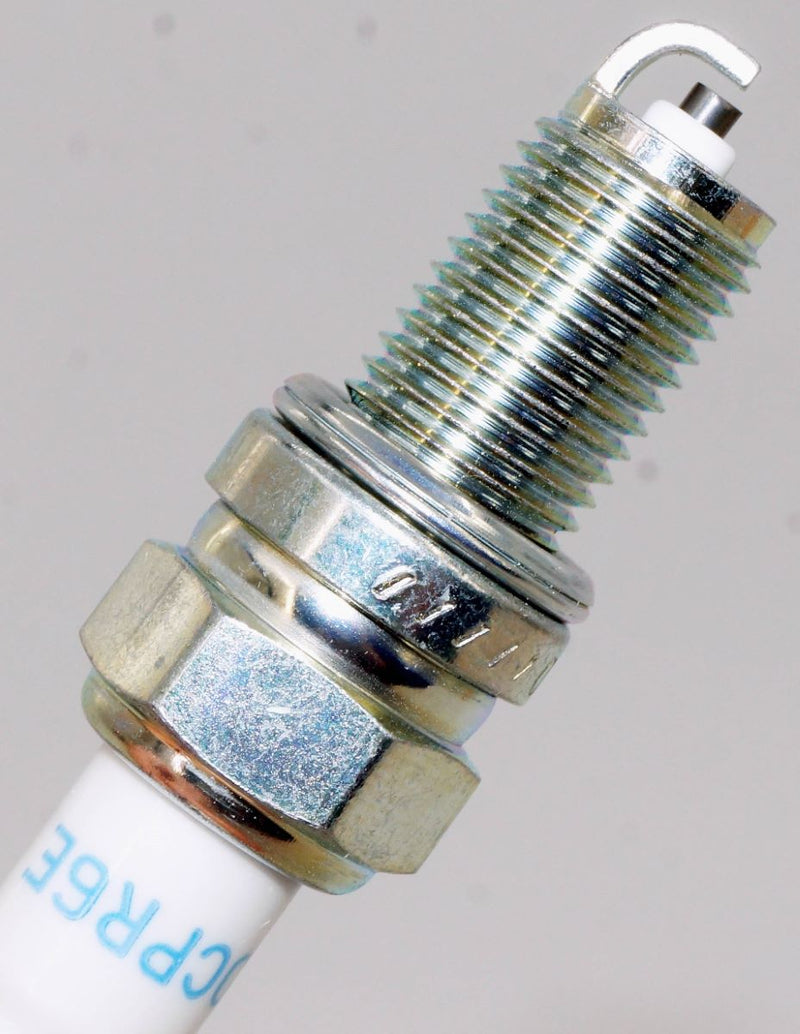

Shell
• Thread Diameter: 12mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Reach: 19mm (3/4")
• Hex Size: 5/8" (16mm)
• Terminal Type: Solid
• Overall Height: JIS:
• Gap: .035" (0.9mm)

Center Electrode
• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Projected

Ground Electrode
• Material: Nickel
• Type: Standard

Specifications
• Resistor: Yes
• Resistor Value: 5k Ohm
• Heat Range: 6

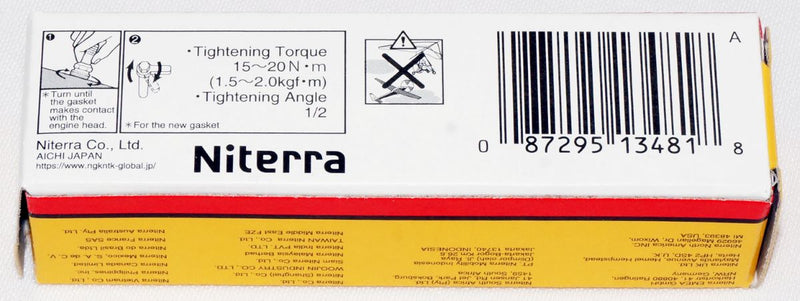

• Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.

• Mfg Part No: 3481 DCPR6E-3481
• Related Part No: DCPR6E 3481 DCPR6E-3481
