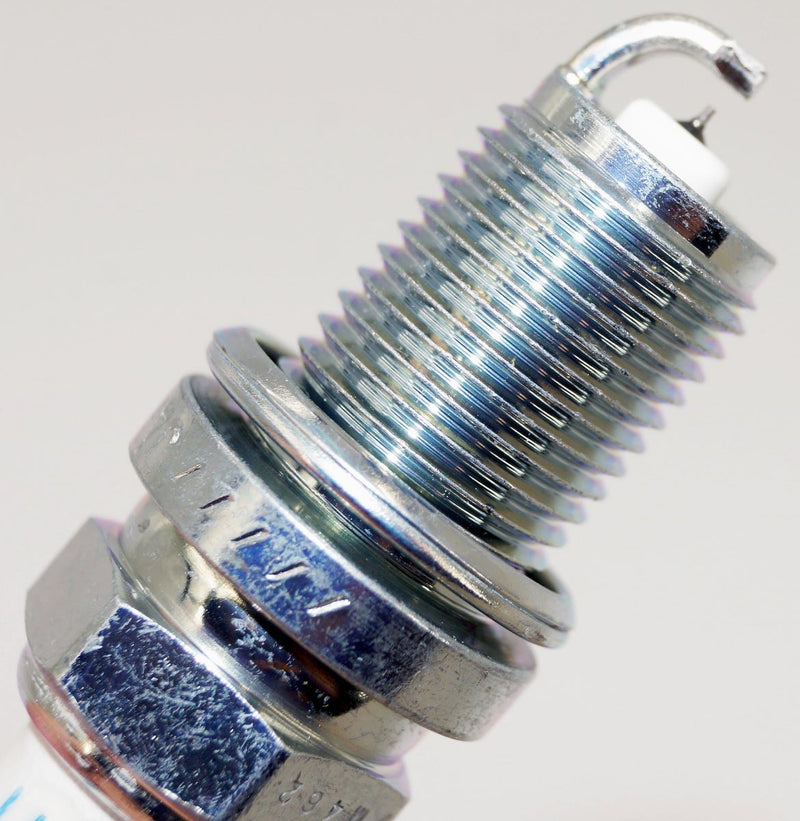

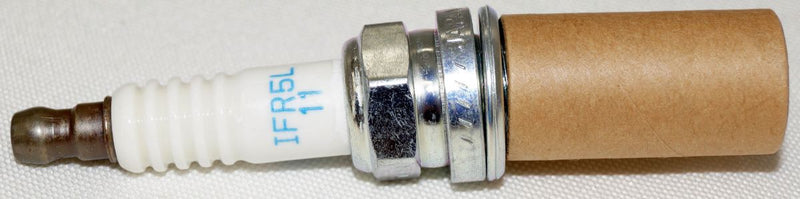

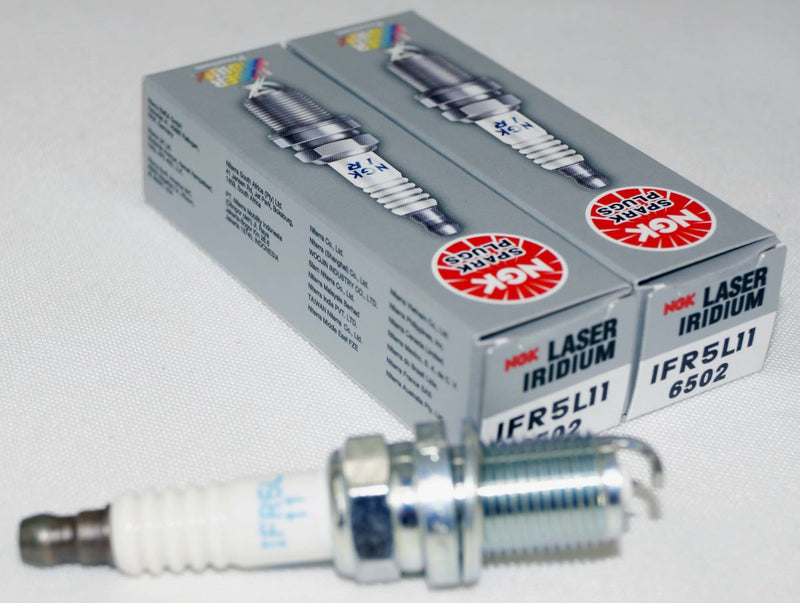

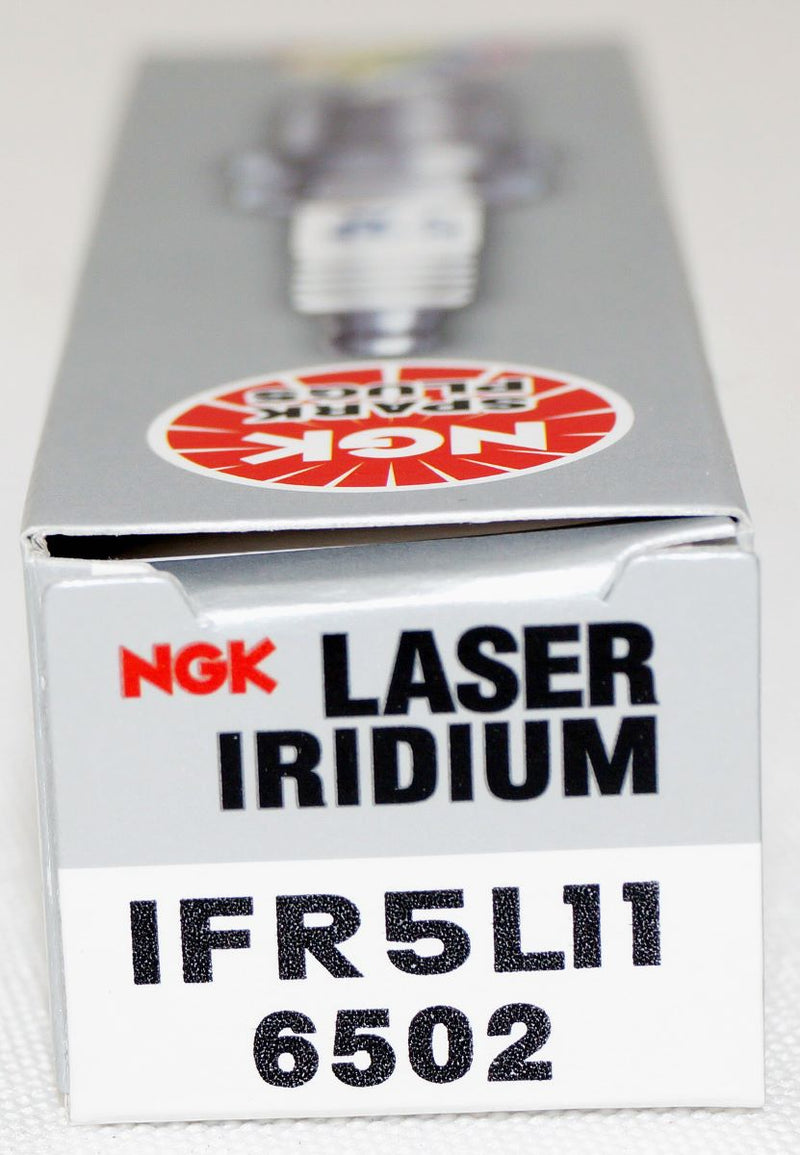

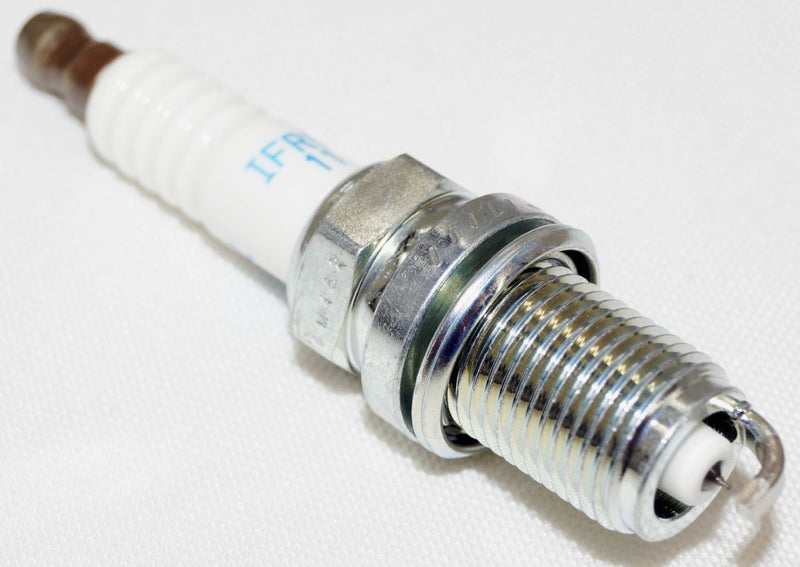

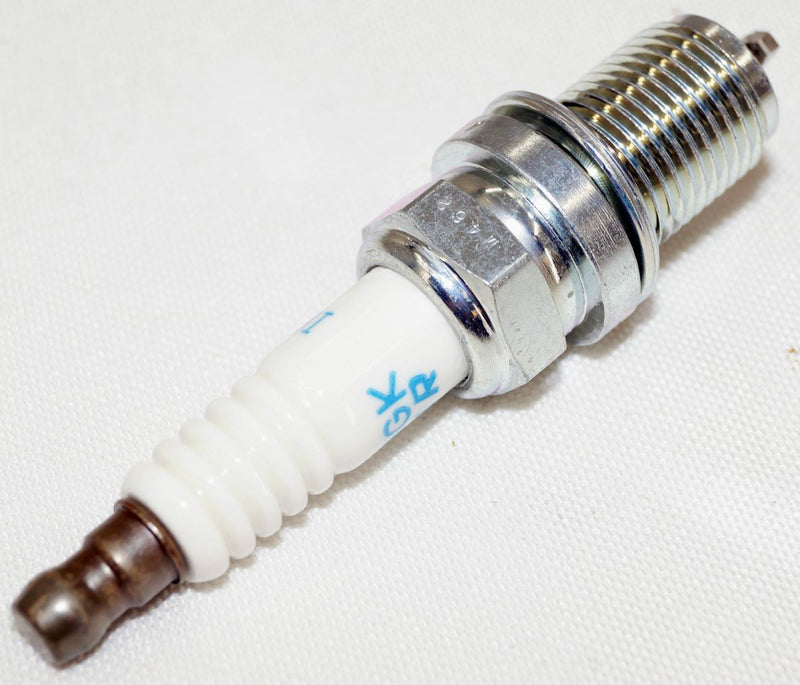

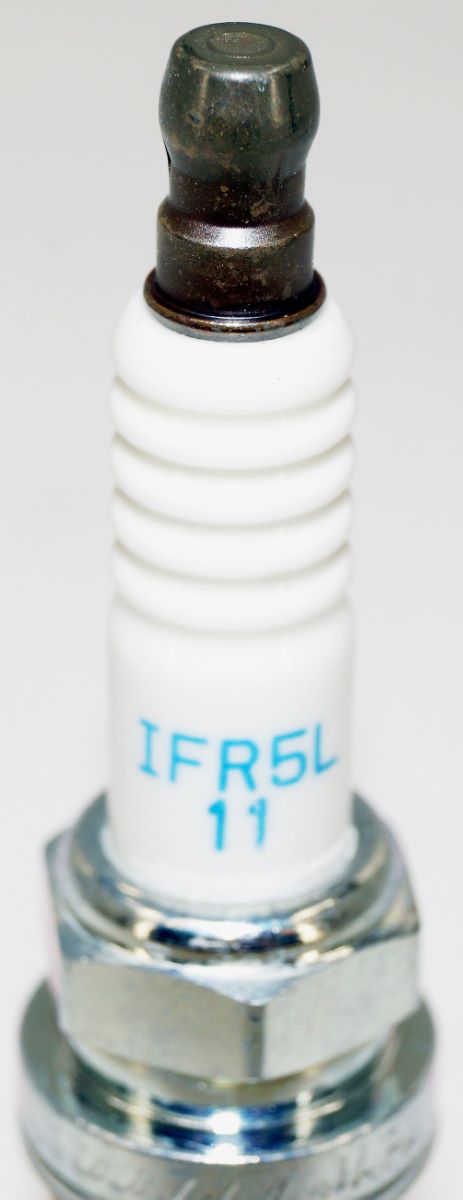

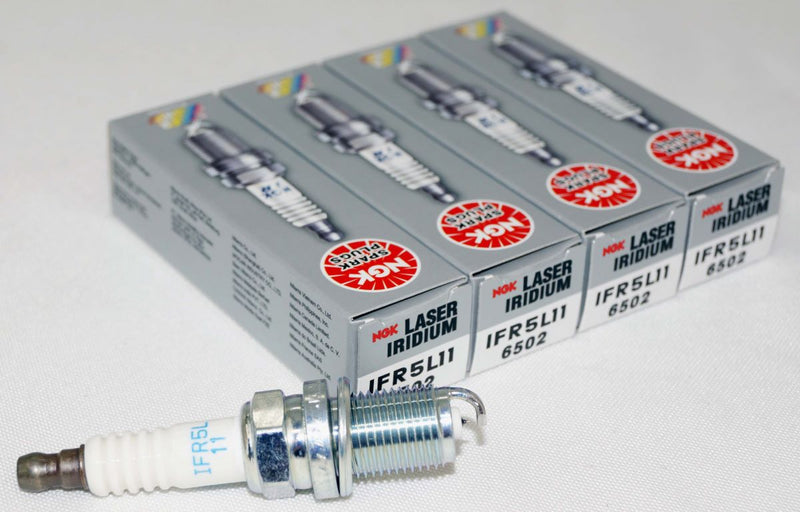

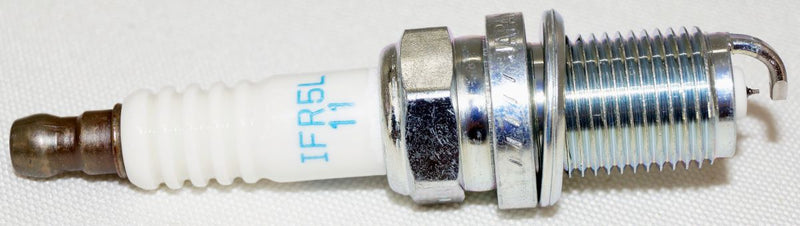

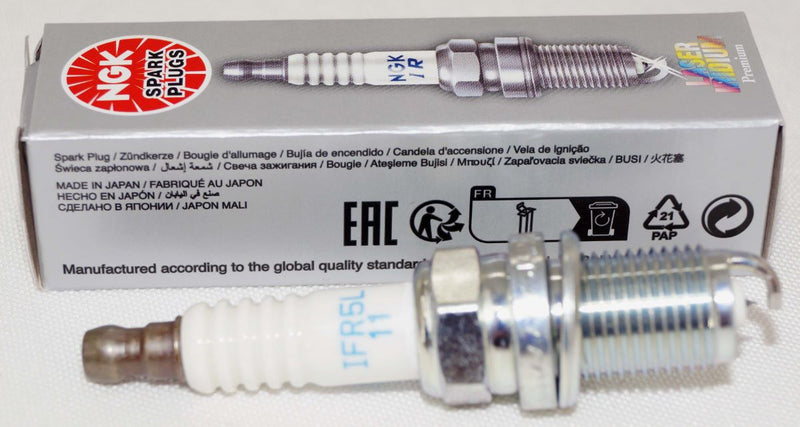

NGK 6502 Laser Iridium Spark Plug IFR5L11 Honda TRX650 FourTrax Rincon

6502 / IFR5L11 - NGK single iridium plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.

Shell
Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 19mm (3/4")
Hex Size: 5/8" (16mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .043" (1.1mm)

Center Electrode
Material: Iridium
Type: Fine Wire
Size: 0.6mm
Projection: Projected

Ground Electrode
Material: Platinum
Type: Standard
Shape: Taper Cut

Specifications
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 5
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

• Mfg Part No: 6502 IFR5L11
• Related Part No: 6502 IFR5L11
