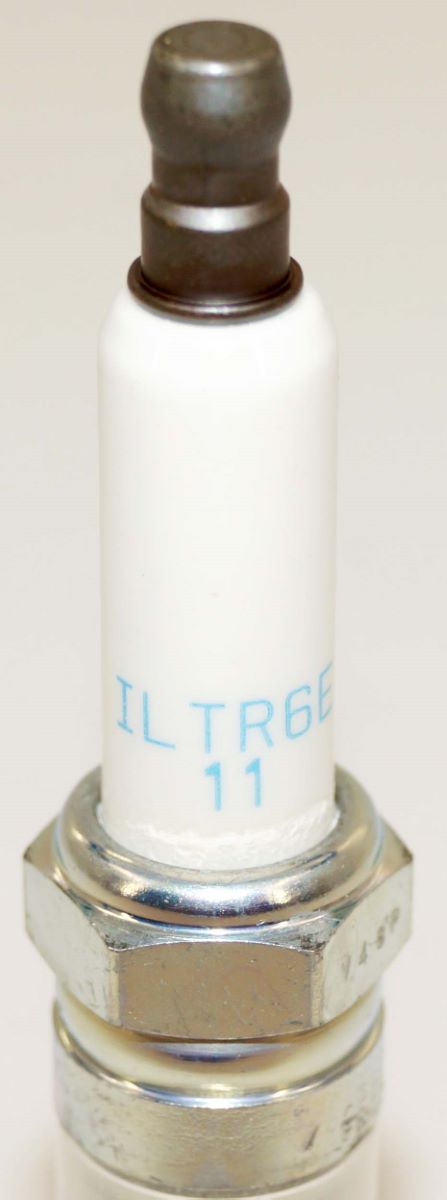

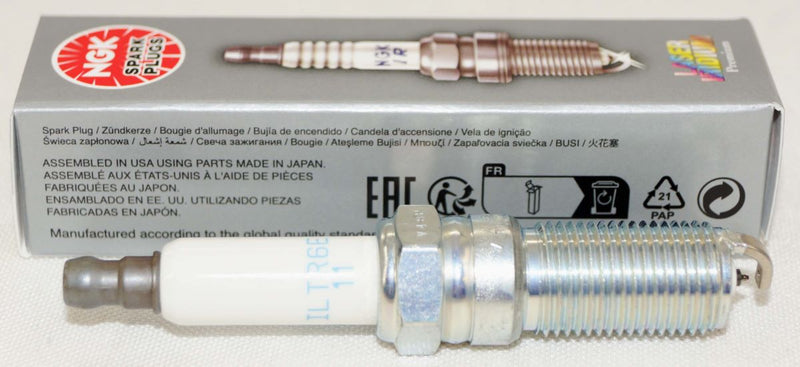

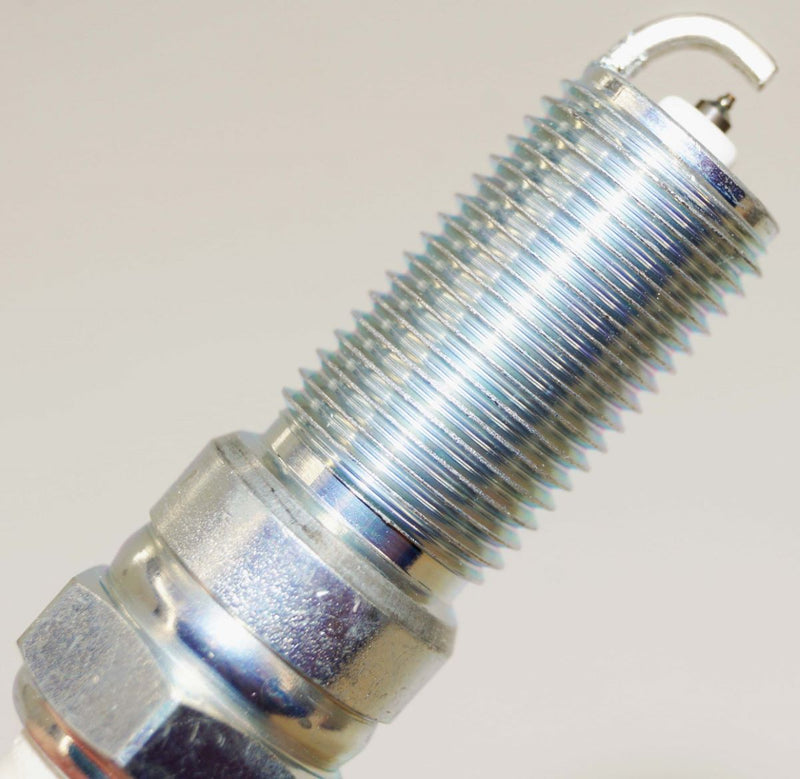

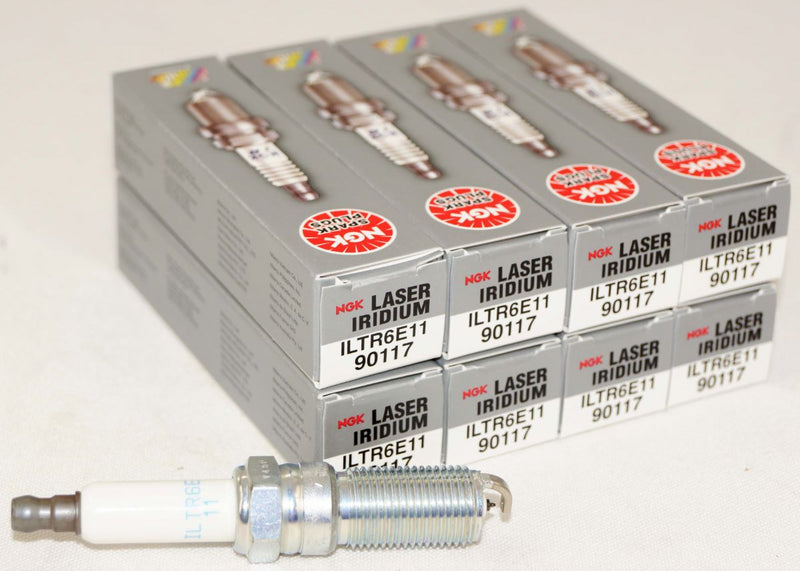

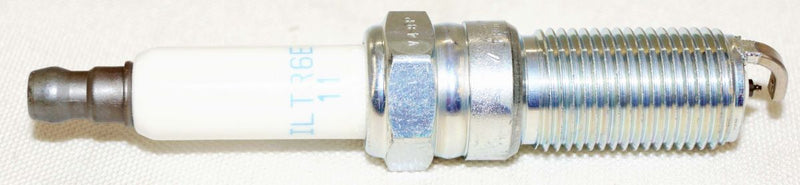

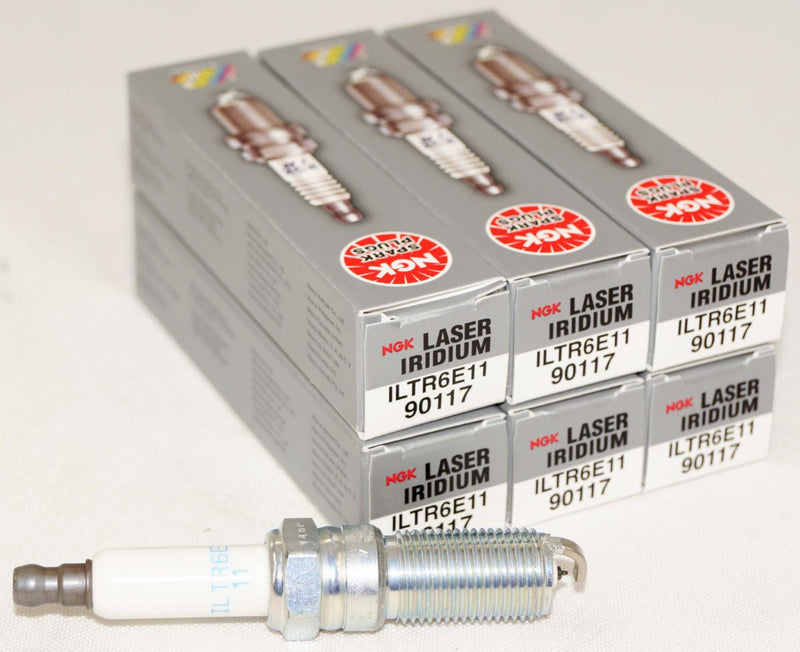

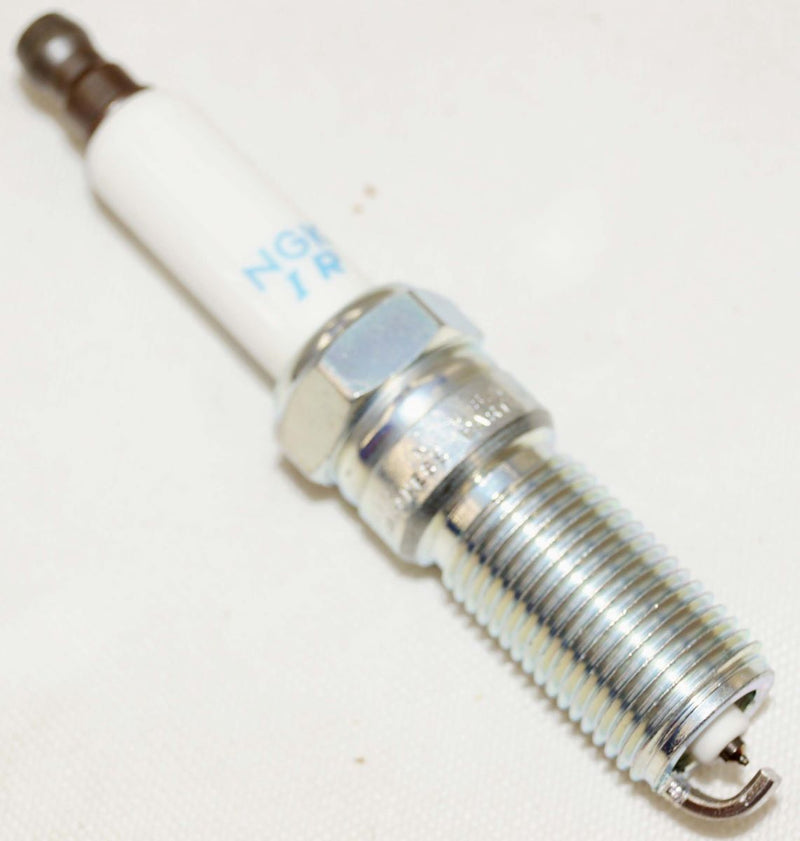

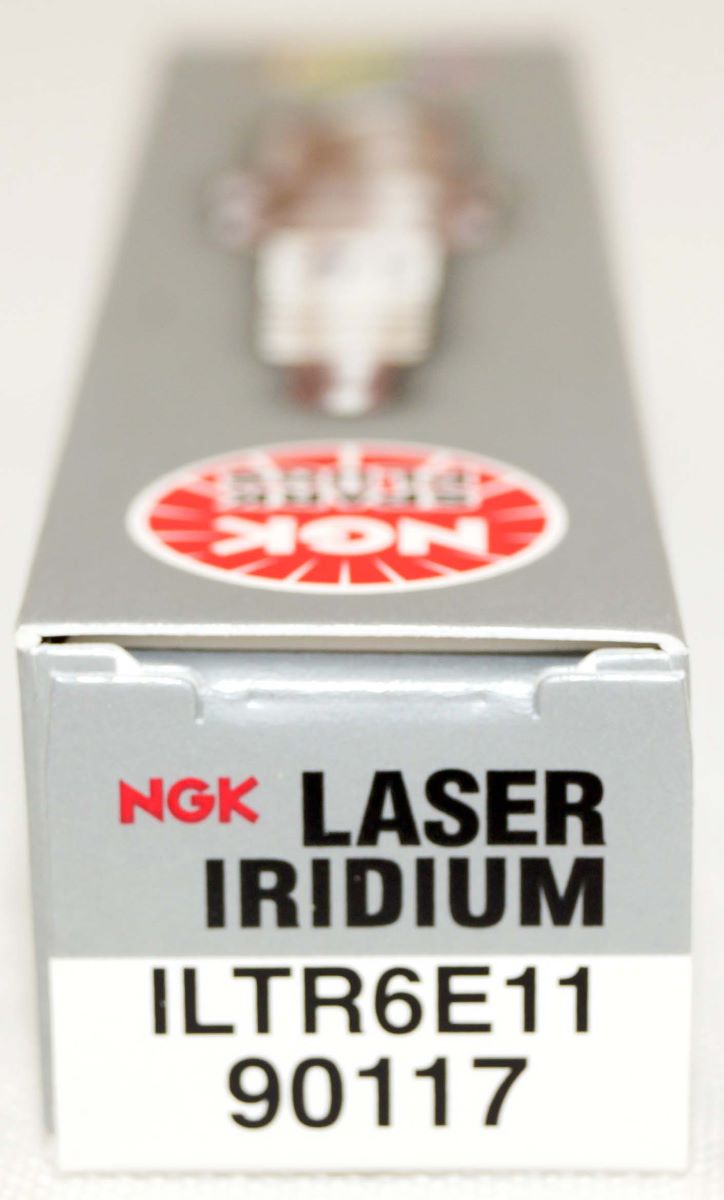

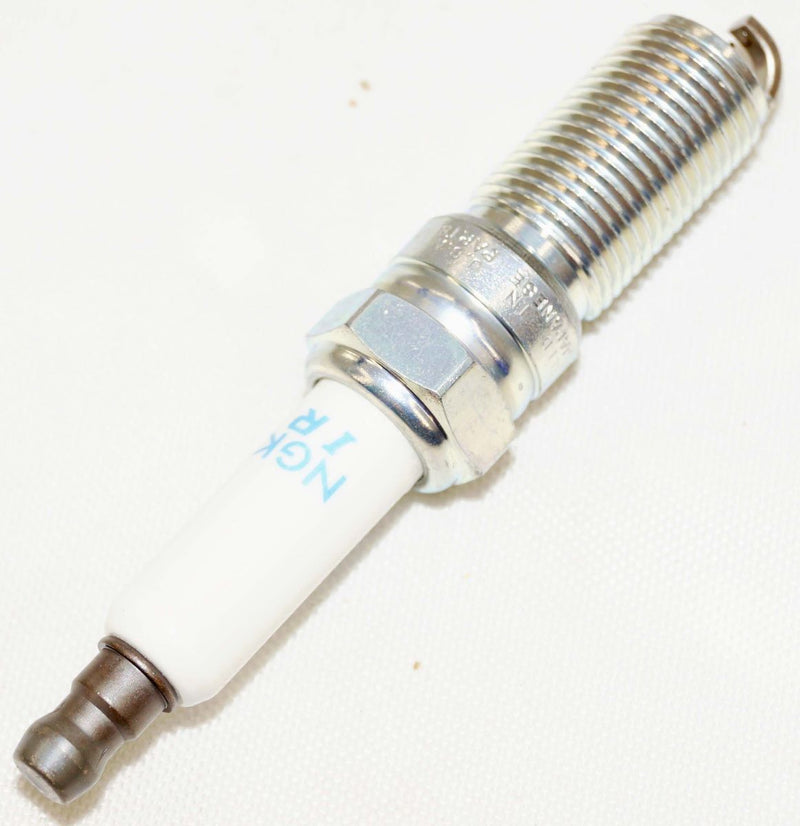

NGK 90117 Spark Plug-Laser Iridium ILTR6E11 Ford GMC

Laser Iridium Spark Plug (90117) by NGK. OE Equivalent Design. Often specified as original equipment, NGK Laser Iridium spark plugs are the best combination of performance and longevity. Iridium tip is six (6) times harder than platinum providing the strongest ignitability and the longest life possible. Most Laser Iridium spark plugs feature a platinum pad on the ground electrode for even wear in DIS ignition systems. OE engineered for specific vehicle applications.

Thread Diameter: 14 mmThread Pitch: 1.25 mmSeat Type: TaperedReach: 25 mm (1")Hex Size: 5/8" (16 mm)Terminal Type: SolidOverall Height: JISGap: .043" (1.1 mm)Center Electrode Core Material: CopperCenter Electrode Tip Material: IridiumType: Fine WireSize: 0.6 mmProjection: ProjectedGround Electrode Core Material: NickelType: StandardQuantity: 1Resistor: YesResistor Value: 5k OhmHeat Range: 6Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 7.2-14.5 lb. ft.Electrical Terminal Type: Non-Removable NutInsulator Height: 53.00 mmElectrode Material: IridiumNominal Gap: 1.1 mm

• Mfg Part No: 90117 ILTR6E11
• Related Part No: 90117 ILTR6E11
