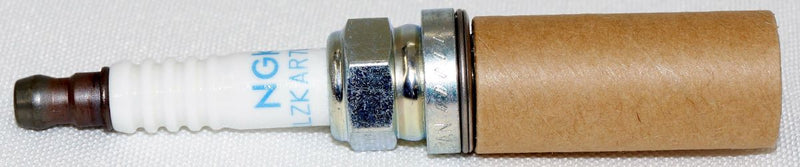

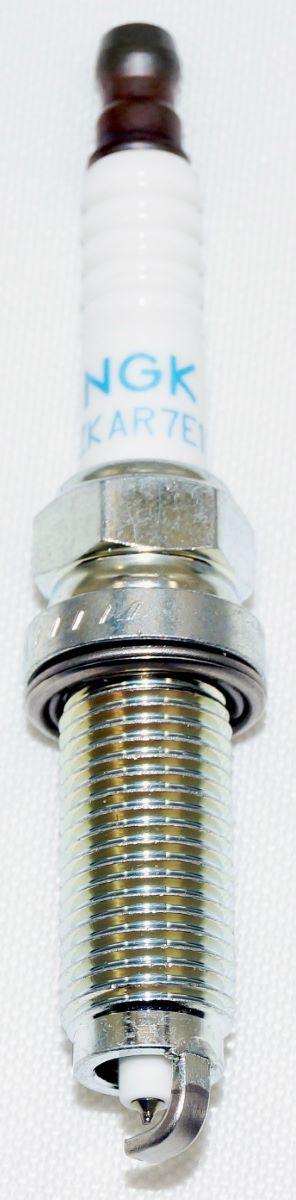

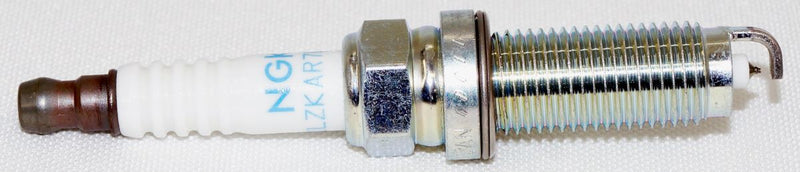

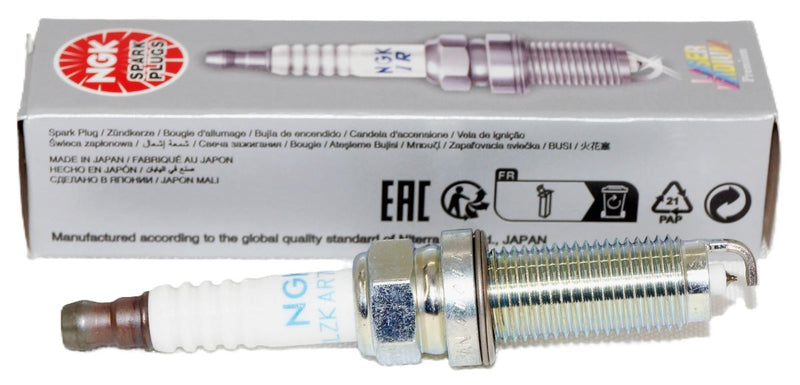

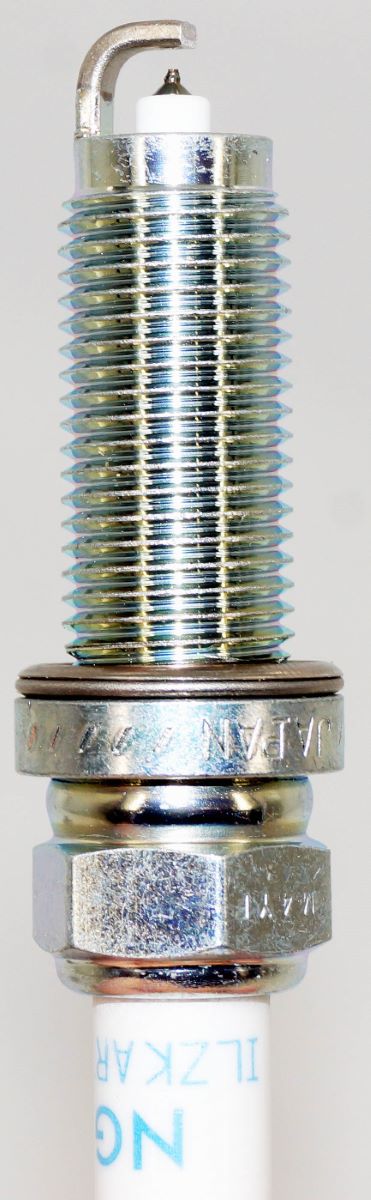

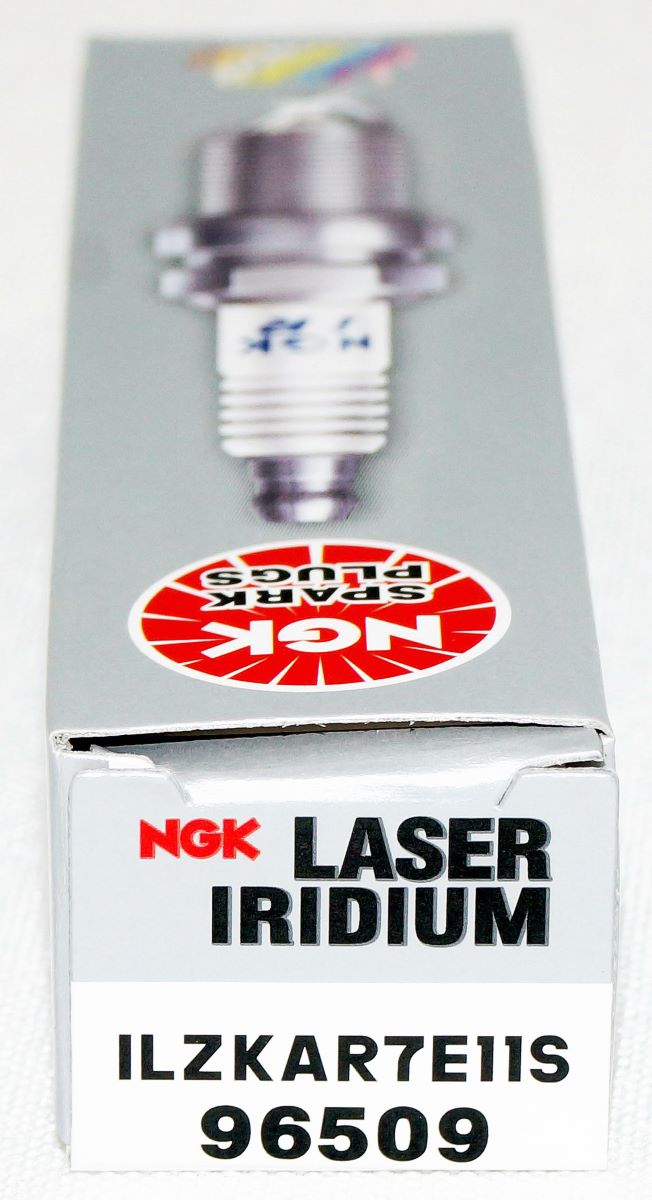

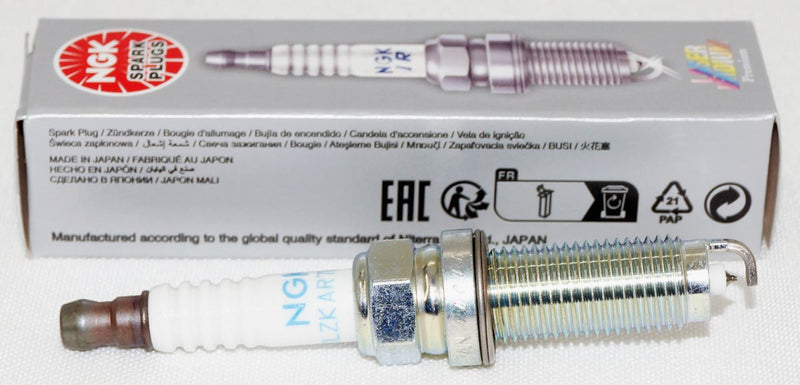

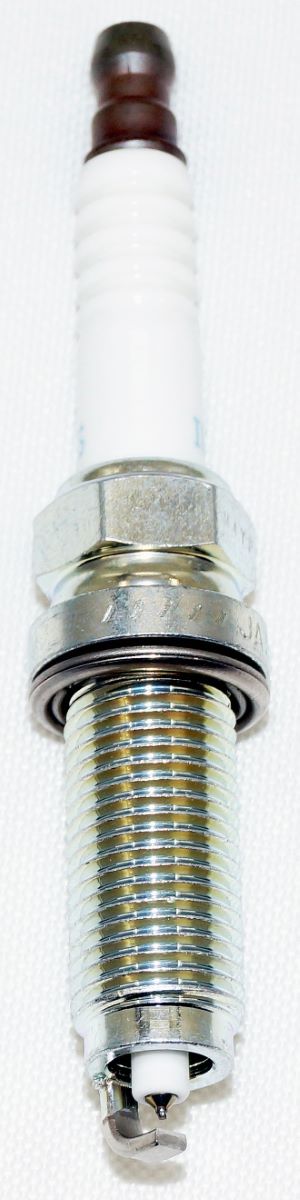

NGK 96509 ILZKAR7E11S Laser Iridium Spark Plug

NGK 96509 ILZKAR7E11S Laser Iridium Spark Plug. Often specified as original equipment, NGK Laser Iridium spark plugs are the best combination of performance and longevity. Iridium tip is six (6) times harder than platinum providing the strongest ignitability and the longest life possible. Most Laser Iridium spark plugs feature a platinum pad on the ground electrode for even wear in DIS ignition systems. OE engineered for specific vehicle applications.

Thread Diameter-12 mm
Thread Pitch-1.25 mm
Seat Type-Gasket
Reach-26.5 mm (1.04")
Hex Size-9/16" (14 mm)
Terminal Type -Solid
Overall Height-ISO
Gap-.043" (1.1 mm)
Material-Iridium
Type-Fine Wire
Size-0.6 mm
Projection-Extended Projection
Material-Platinum
Type-Standard
Resistor-Yes
Resistor Value-5k Ohm
Heat Range-7
Features-Extended Shell; Special Gasket
Torque Specs-Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.
Electrode Material-Iridium
Insulator Type-Long Projection
Nominal Gap-1.1 mm

• Mfg Part No: 96509 ILZKAR7E11S
• Related Part No: 96509 ILZKAR7E11S
