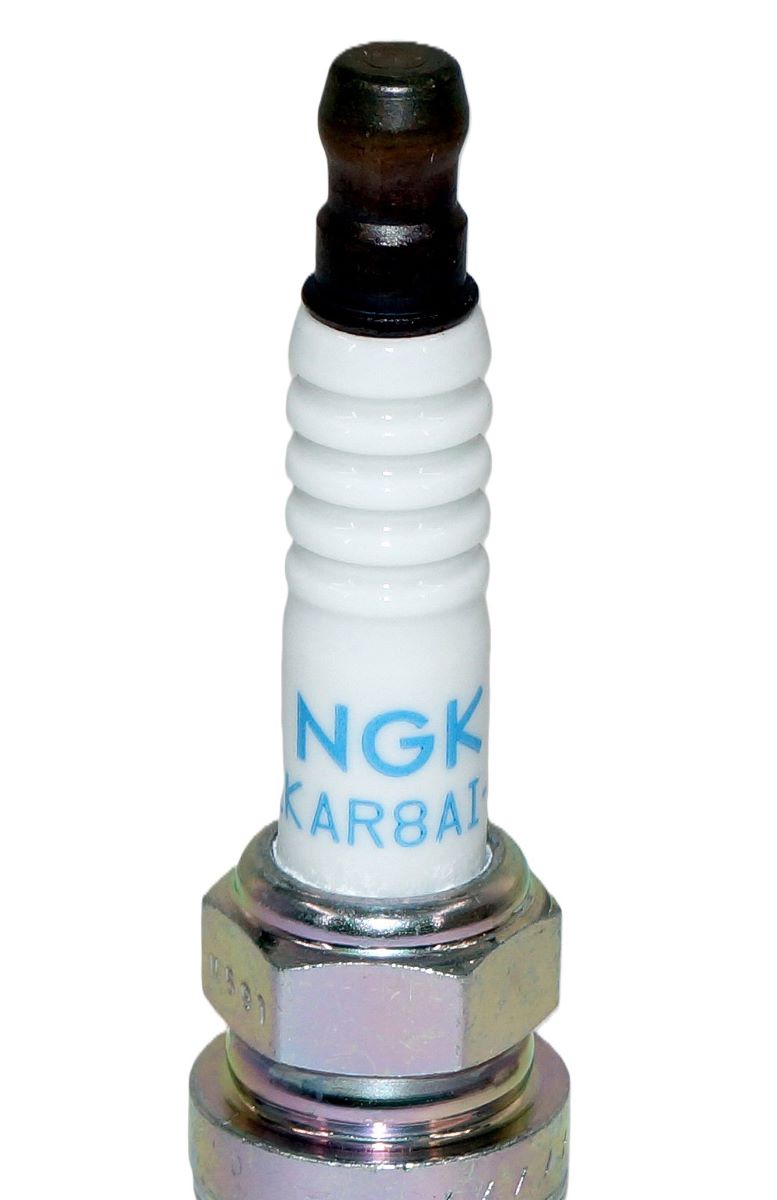

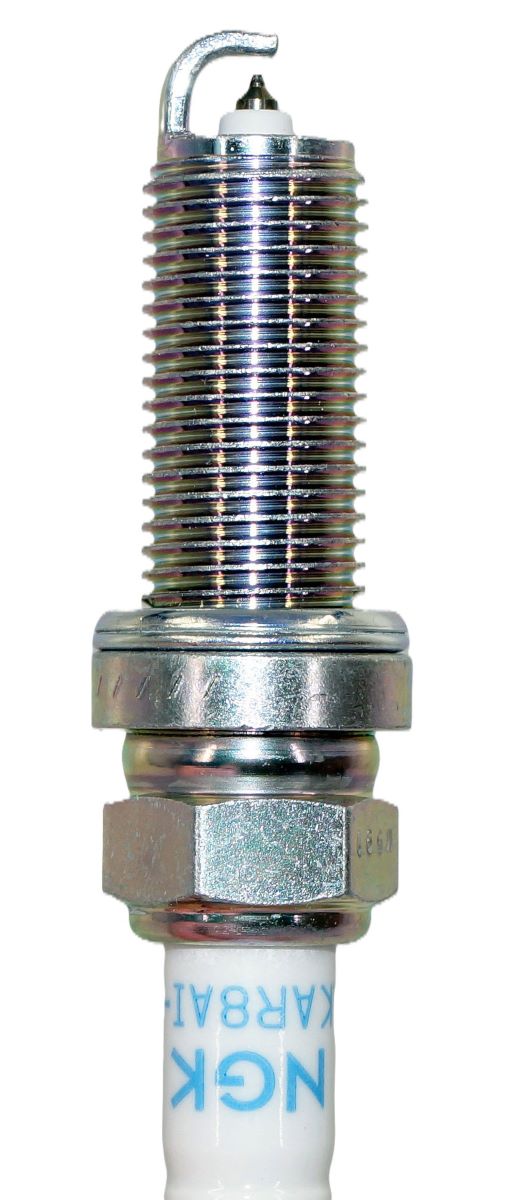

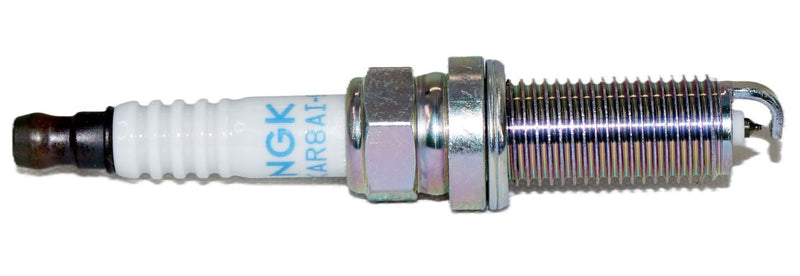

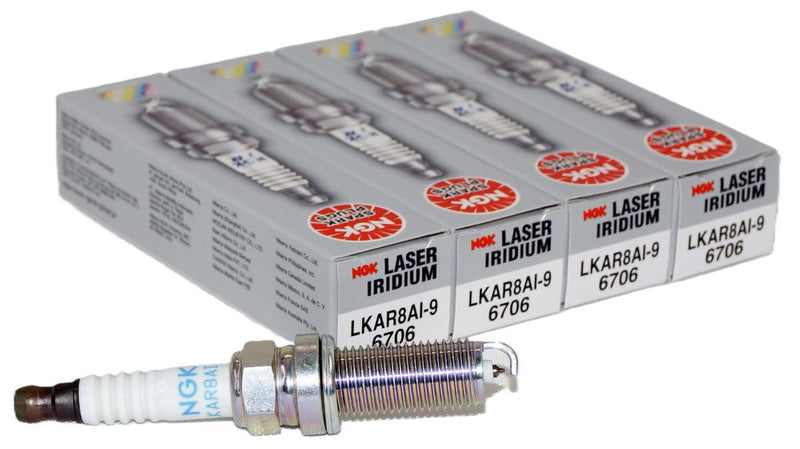

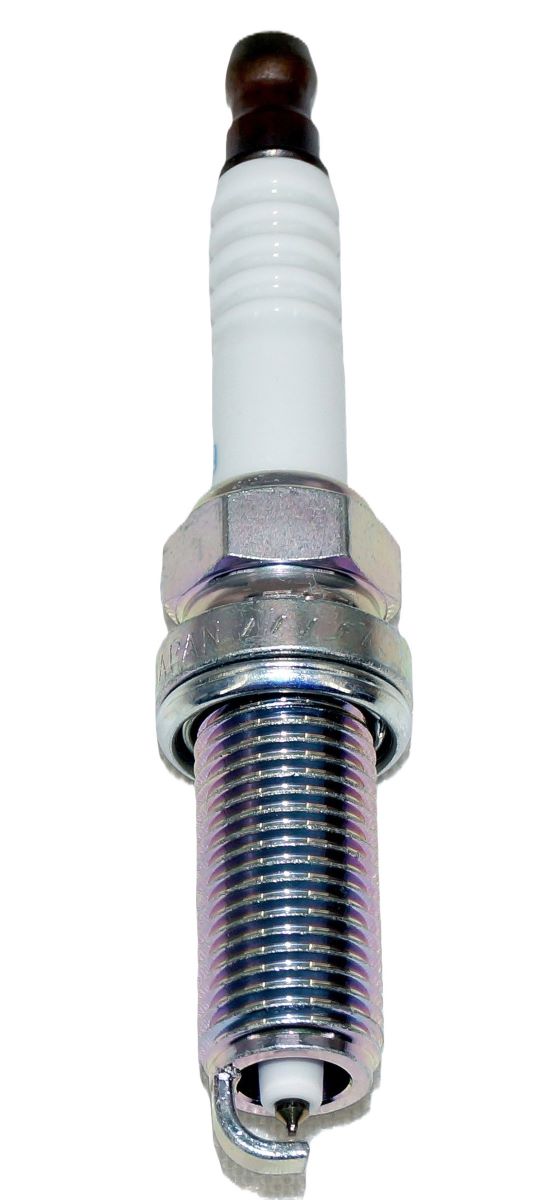

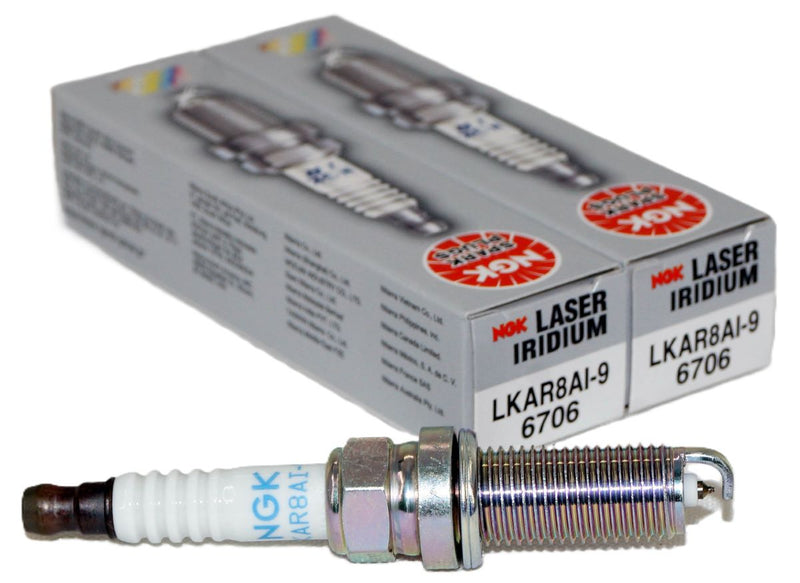

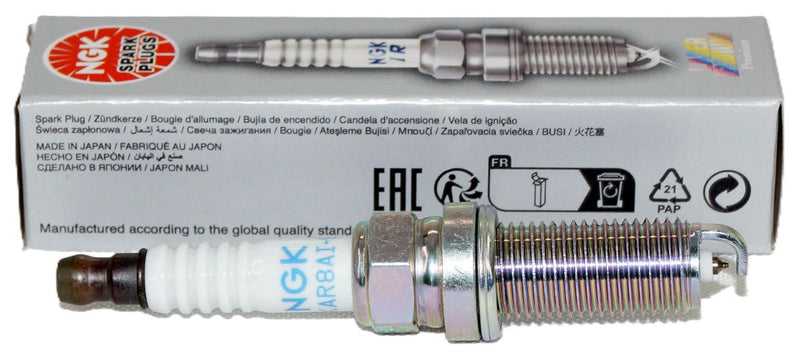

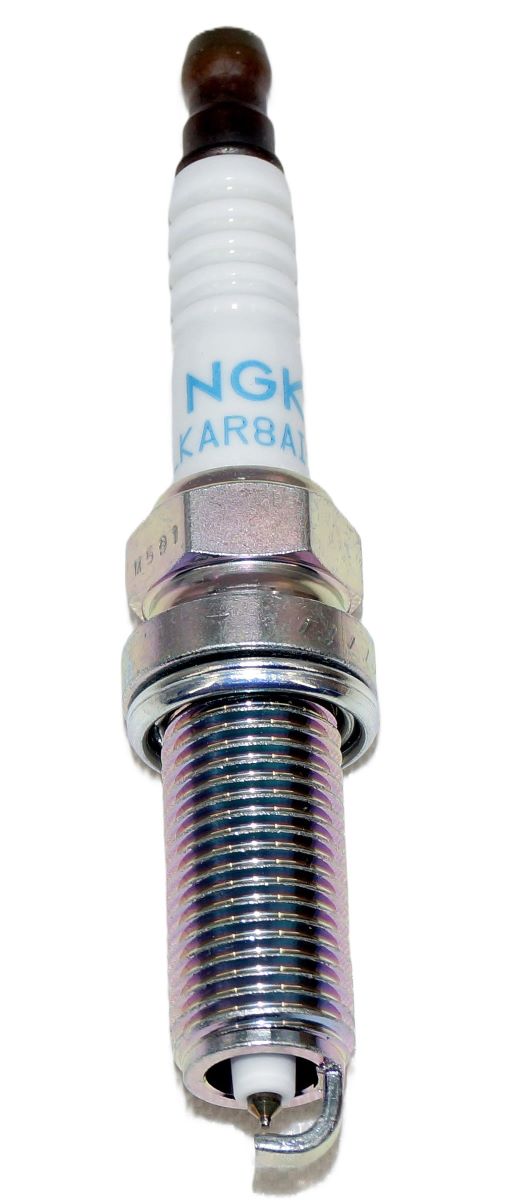

NGK 6706 Laser Iridium Spark Plug LKAR8AI9

NGK 6706 Laser Iridium Spark Plug LKAR8AI9

Part Number: LKAR8AI-9

Stock Number: 6706

Material Grade: Iridium

Resistance (Ohms): 5000.0

Ground Electrode Tip Design: Standard

Ground Configuration: J-Gap

Ground Electrode Core Material: Nickel

Washer Included: Yes

Grade Type: Performance

Electrical Terminal Type: Non-Removable Nut

Center Electrode Core Material: Copper

Center Electrode Tip Material: Iridium

Pre-Gap Size (IN): .036

Pre-Gap Size (MM): 0.9

Ground Electrode Quantity: 1

Hex Size: 14mm

Insulator Height (IN): 2.01

Insulator Height (MM): 51.0

Manufacturer Heat Range: 8

Seat Type: Flat

Reach (IN): 1.043

Reach (MM): 26.5

Thread Diameter (IN): 0.472

Thread Diameter (MM): 12.0

Insulator Material: Ceramic

Resistor Type: Yes

Ground Electrode Tip Material: Nickel

Skirt: No

Center Electrode Insulator Tip Projection (IN): 0.14

Center Electrode Insulator Tip Projection (MM): 3.5

Center Electrode Design: Fine Wire

Washer Type: Crush

Center Electrode Projection: Mid Projection

• Mfg Part No: 6706 LKAR8AI9
• Related Part No: 6706 LKAR8AI9
