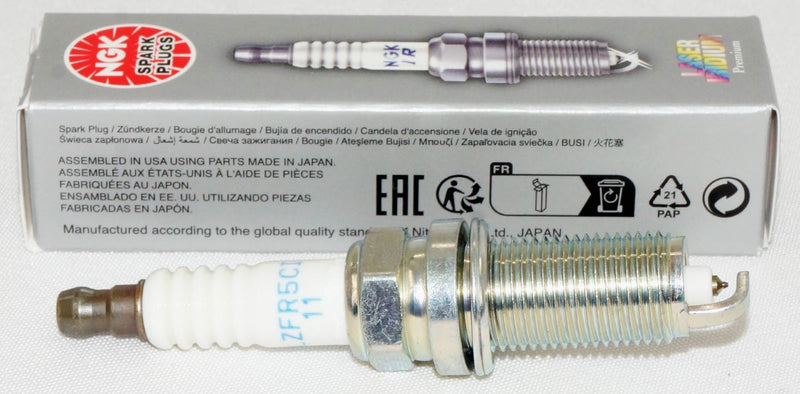

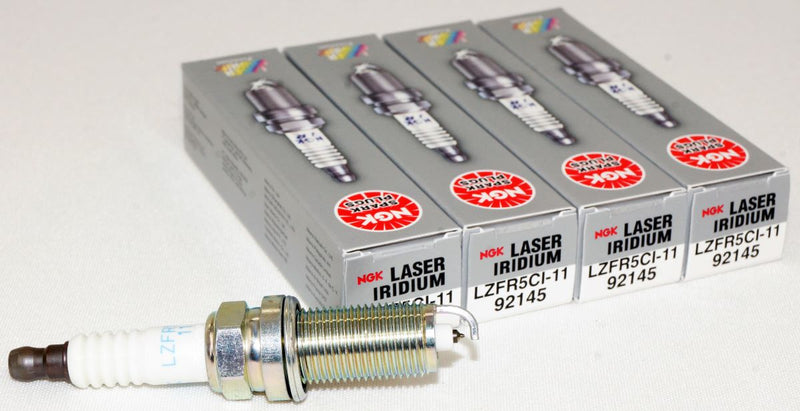

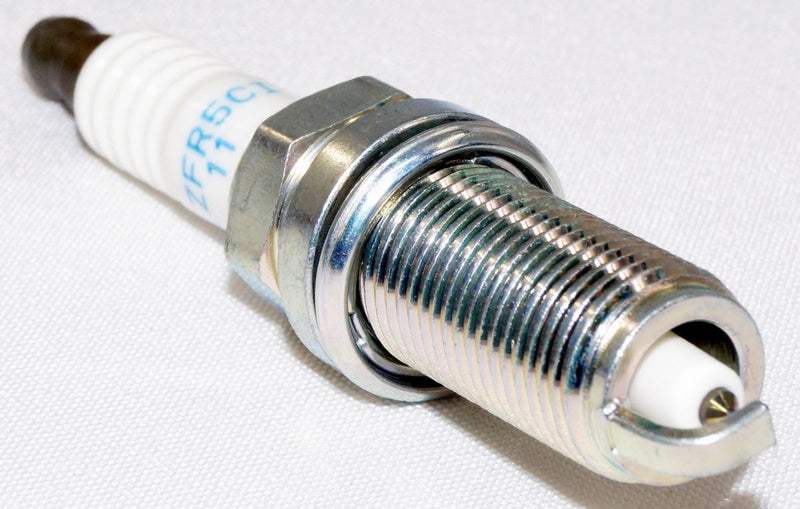

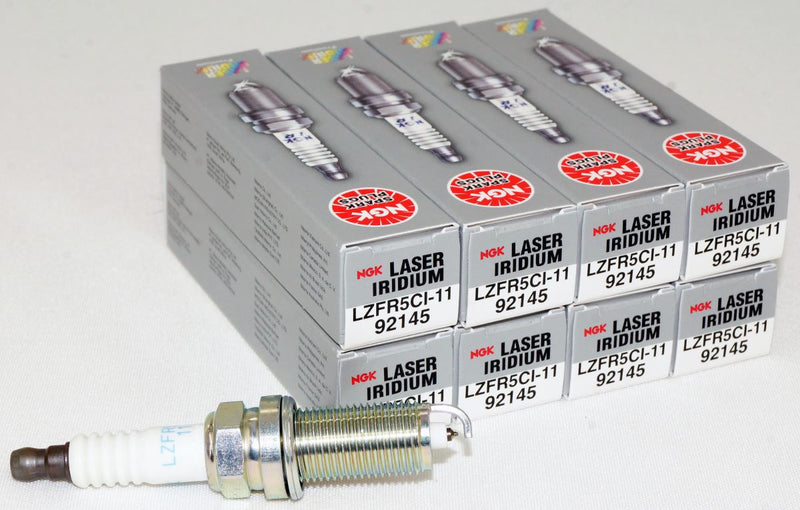

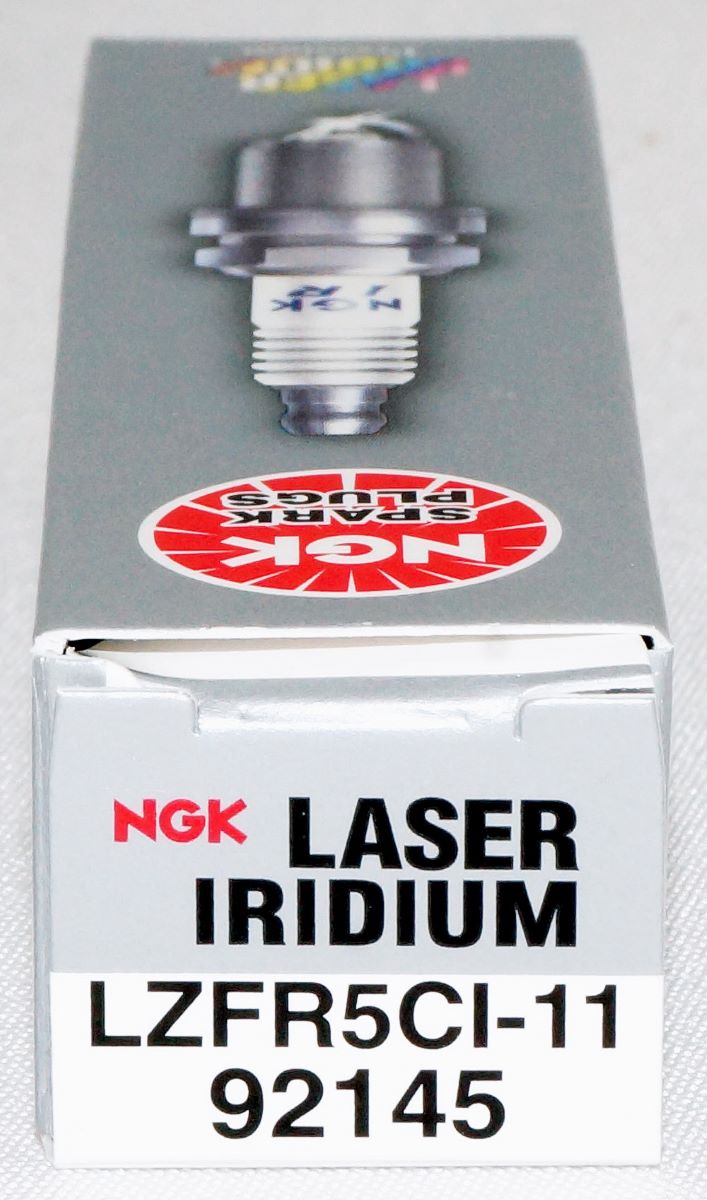

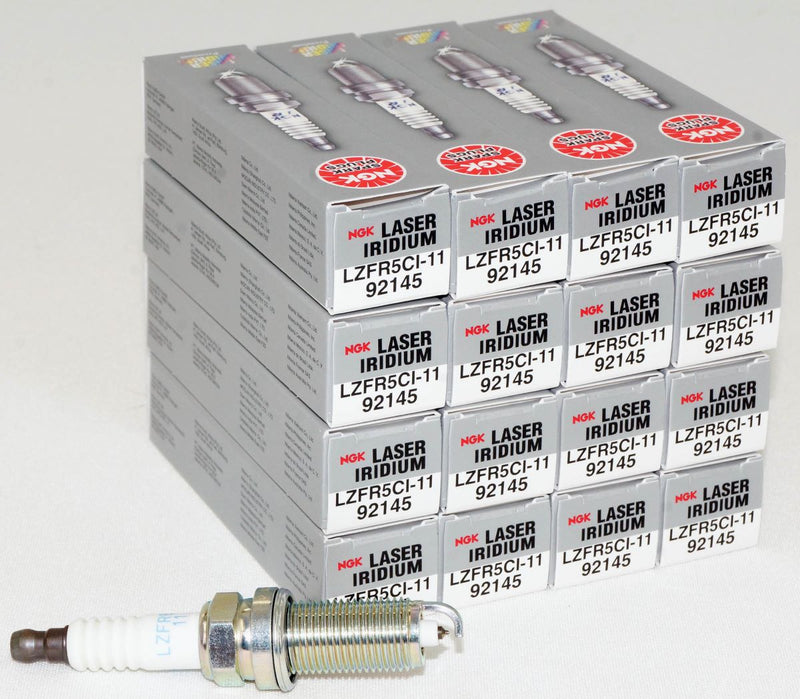

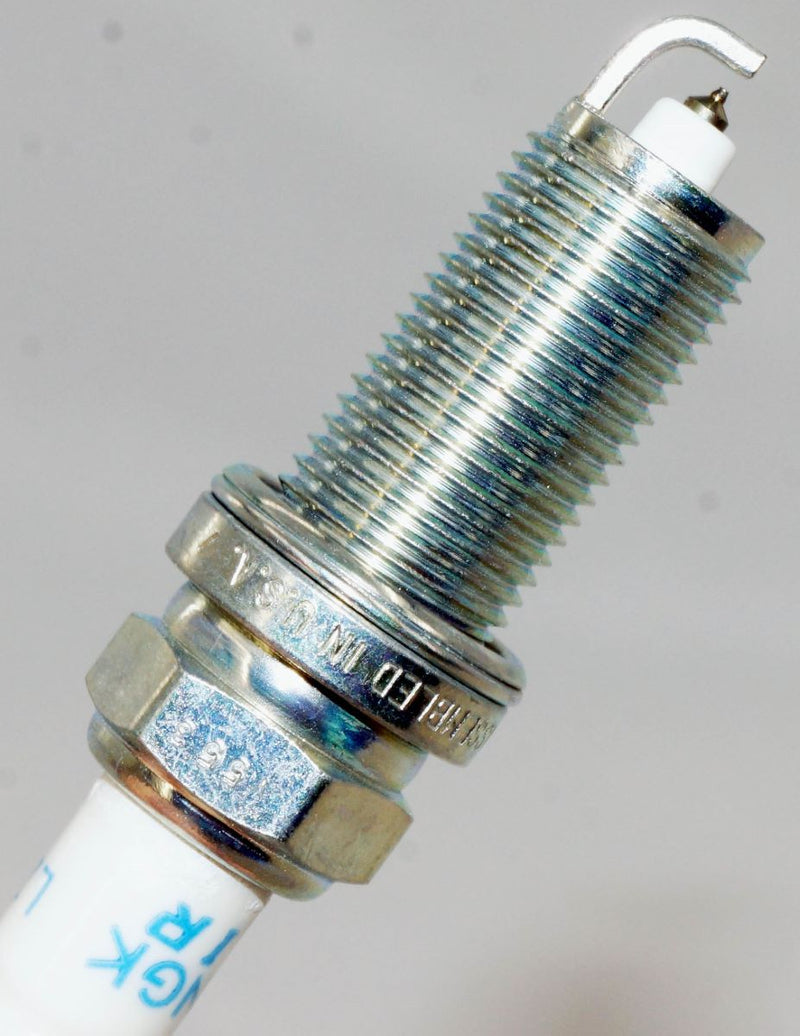

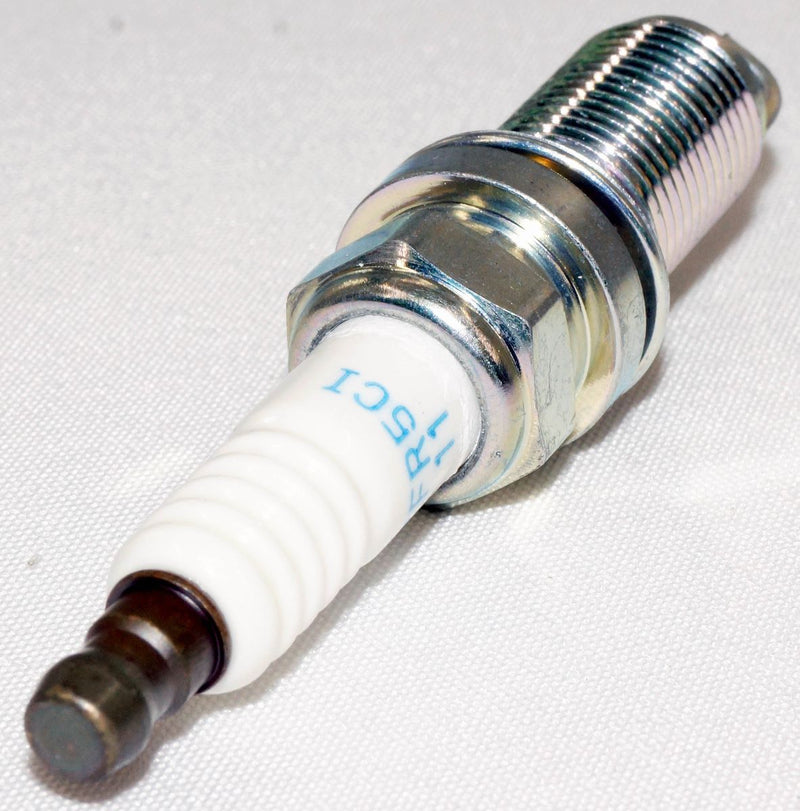

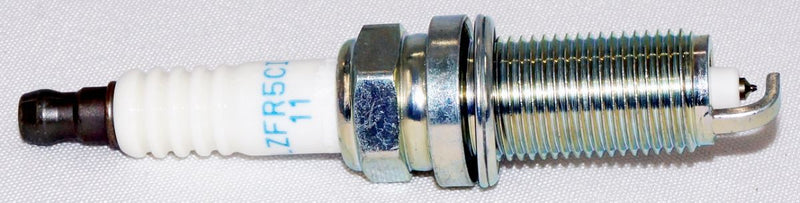

NGK 92145 Laser Iridium Spark Plug

Laser Iridium Spark Plug (92145) by NGK. Often specified as original equipment, NGK Laser Iridium spark plugs are the best combination of performance and longevity. Iridium tip is six (6) times harder than platinum providing the strongest ignitability and the longest life possible. Most Laser Iridium spark plugs feature a platinum pad on the ground electrode for even wear in DIS ignition systems. OE engineered for specific vehicle applications.

Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 26.5mm (1.04")
Hex Size: 5/8" (16mm)
Terminal Type: Solid
Gap: .043" (1.1mm)
Center Electrode
Material: Iridium
Type: Fine Wire
Size: 0.6mm
Projection: Extended Projection
Ground Electrode
Material: Platinum
Type: Standard
Quantity: 1
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 5
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
Electrode Material: Iridium
Insulator Type: Long Projection
Nominal Gap: 1.1 mm

• Mfg Part No: 92145 LZFR5CI11
• Related Part No: 92145 LZFR5CI11
