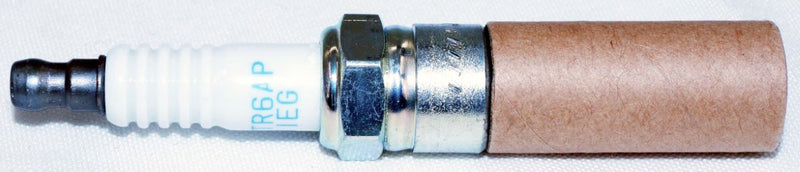

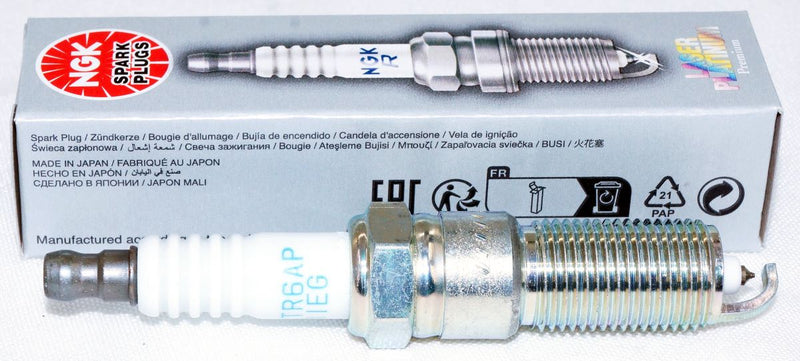

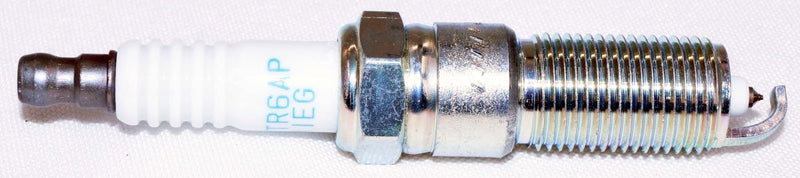

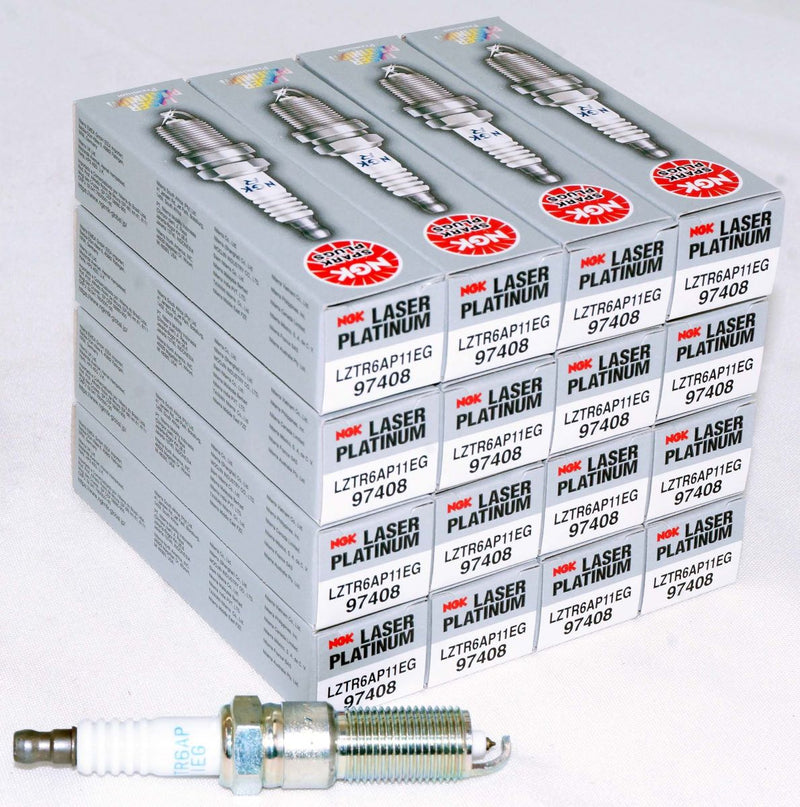

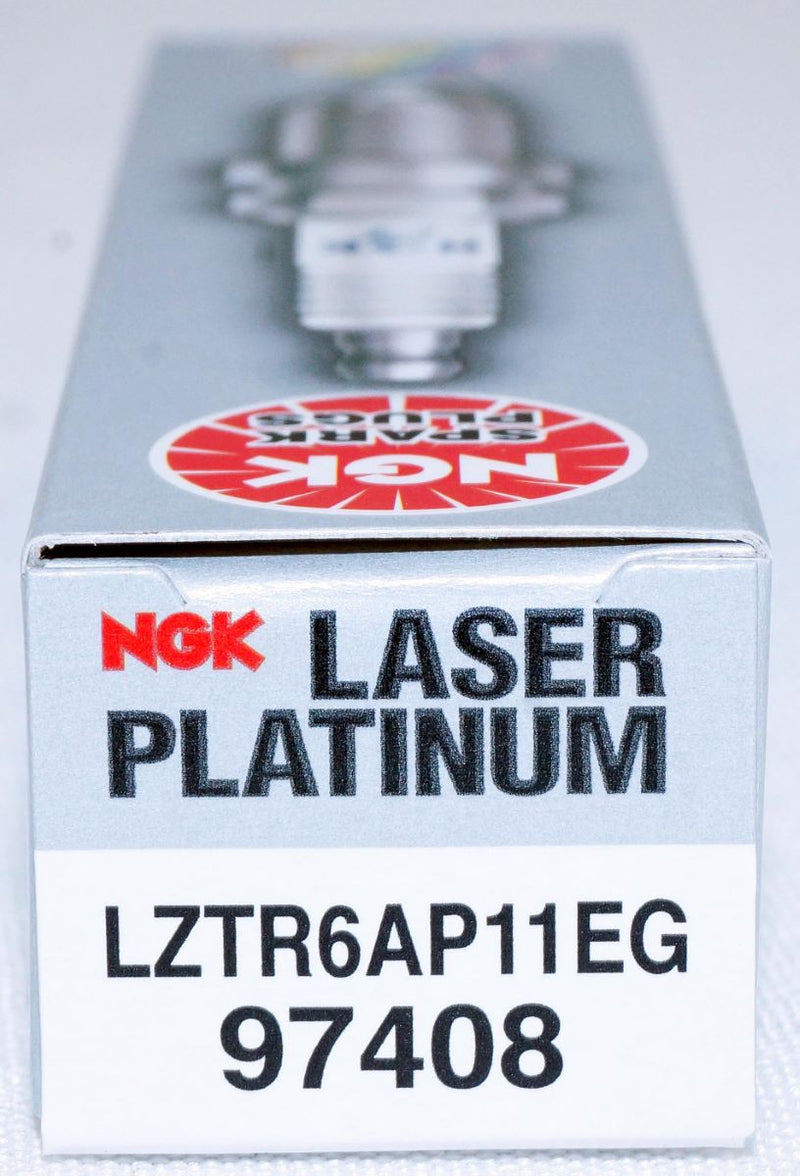

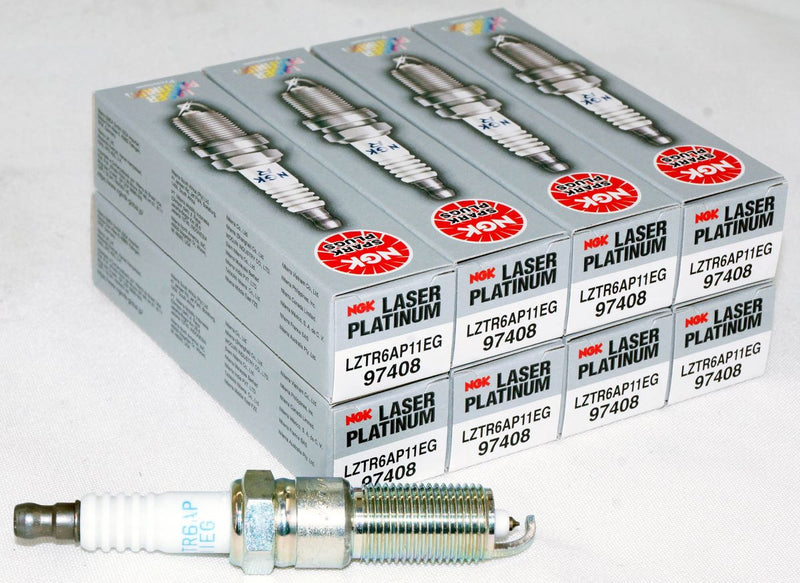

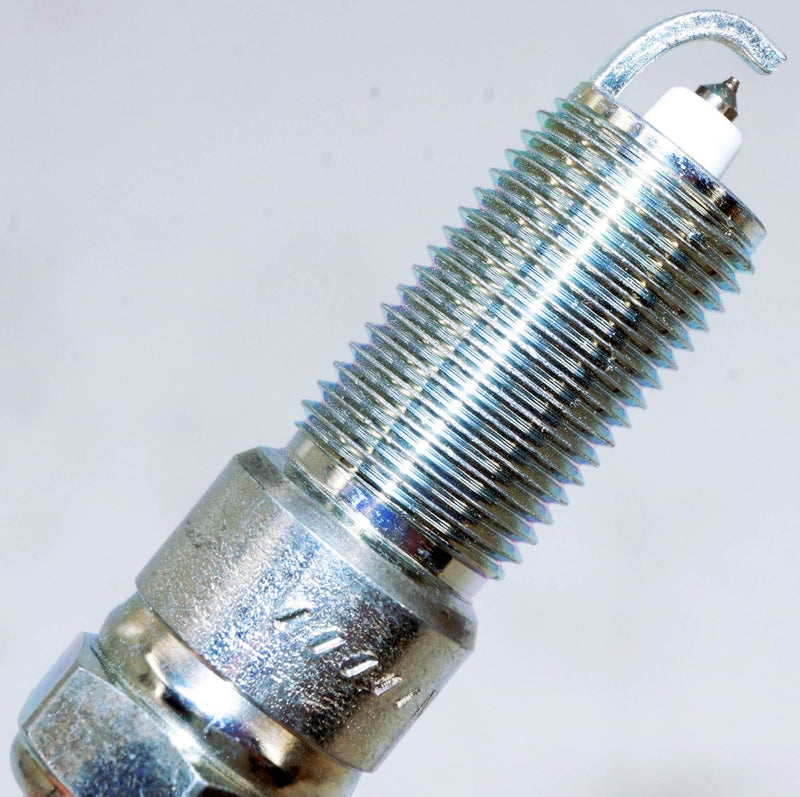

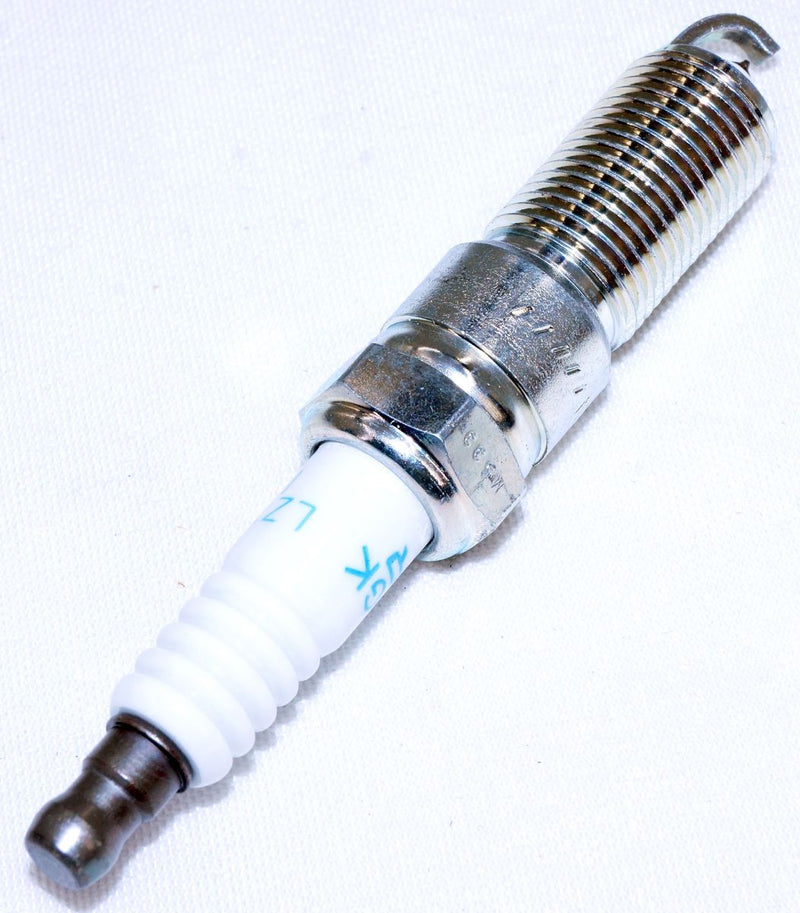

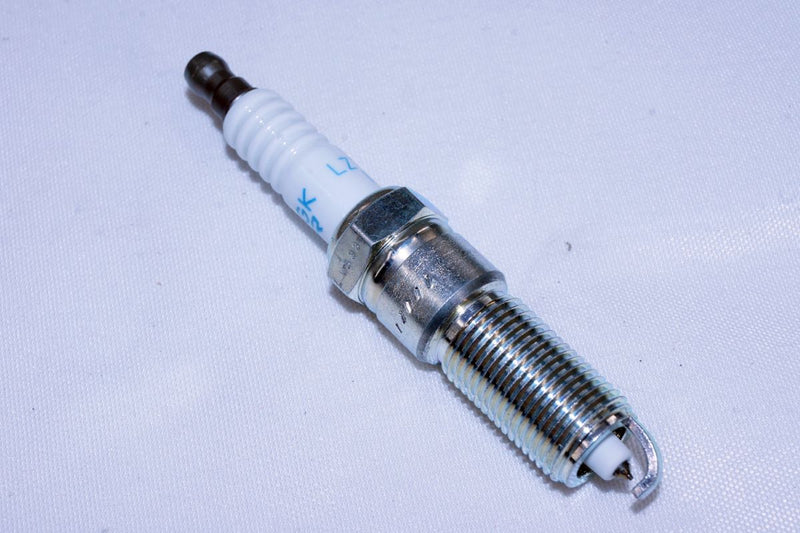

NGK 97408 LZTR6AP11EG Laser Platinum Spark Plug

NGK Laser Platinum Series plugs provide high ignitability and longer service life. Laser welded dual platinum surfaces ensure slow wear rate providing stable idle, superior anti fouling, improved fuel efficiency and lower emissions.
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties

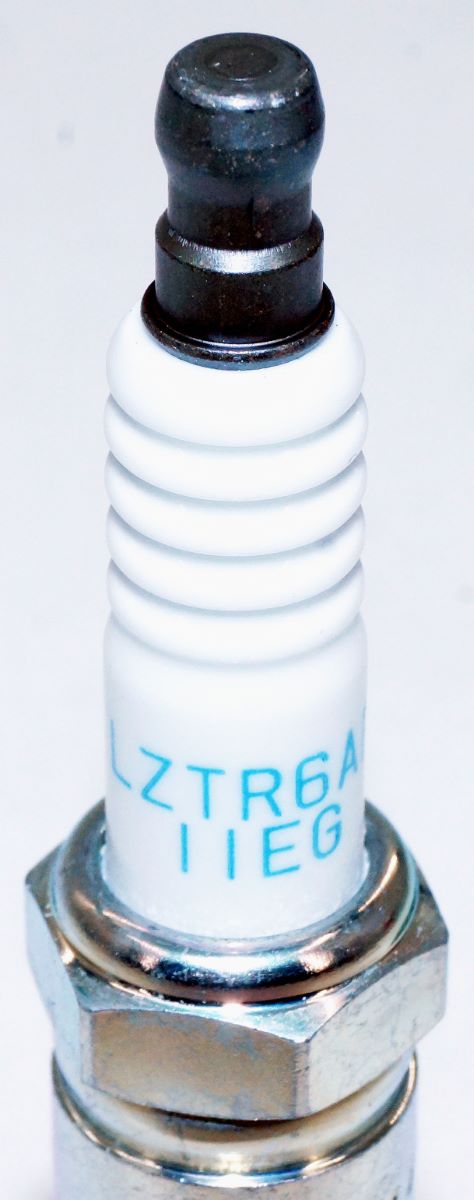

Corrugated ribs prevent flashover
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Copper core aids in heat removal
Triple seals prevent leakage

Shell

Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Tapered
Reach: 25mm (1")
Hex Size: 5/8" (16mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .043" (1.1mm)

Center Electrode

Material: Platinum
Type: Fine Wire
Size: 1.0mm
Projection: Extended Projection

Ground Electrode

Material: Nickel
Type: Standard

Specifications

Resistor: Yes
Resistor Value: 10k Ohm
Heat Range: 6
Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 7.2-14.5 lb. ft.

• Mfg Part No: 97408 LZTR6AP11EG
• Related Part No: 97408 LZTR6AP11EG
