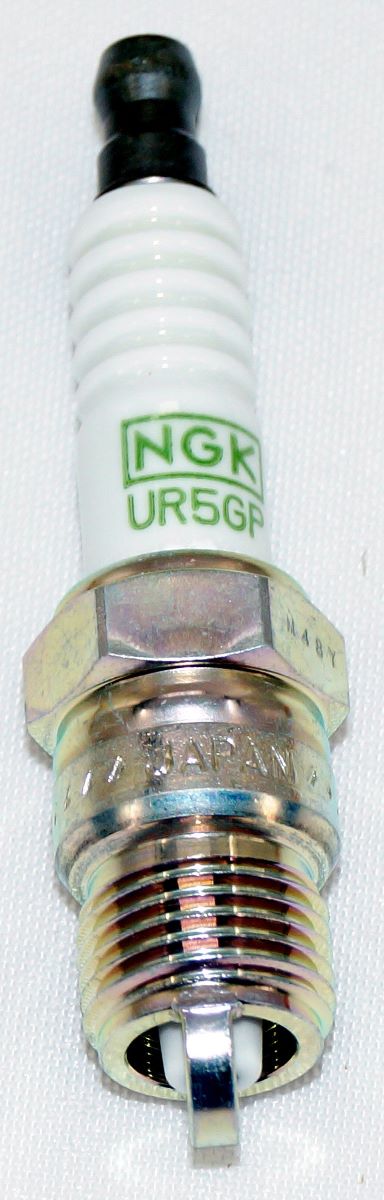

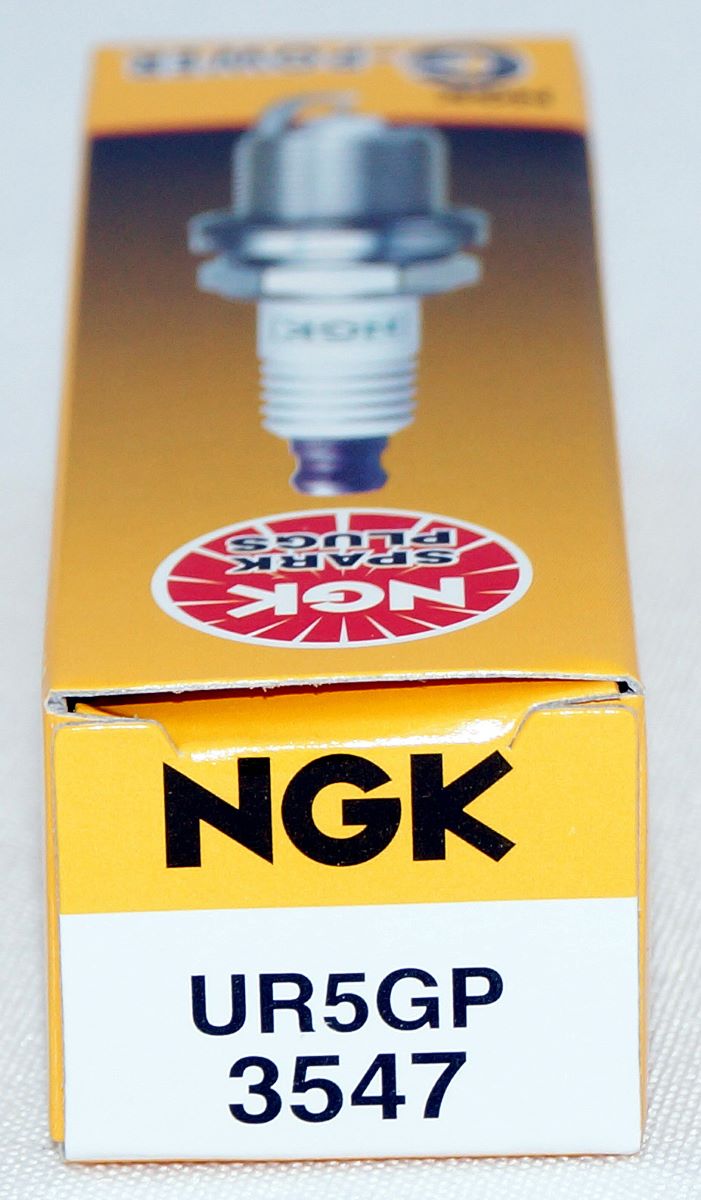

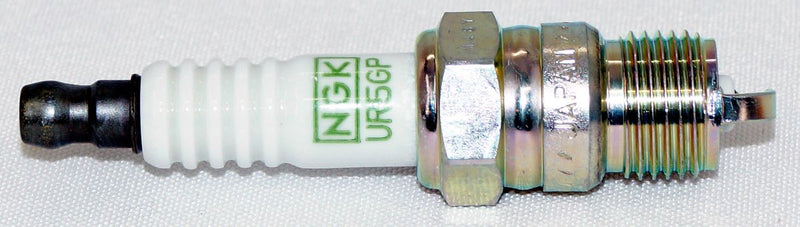

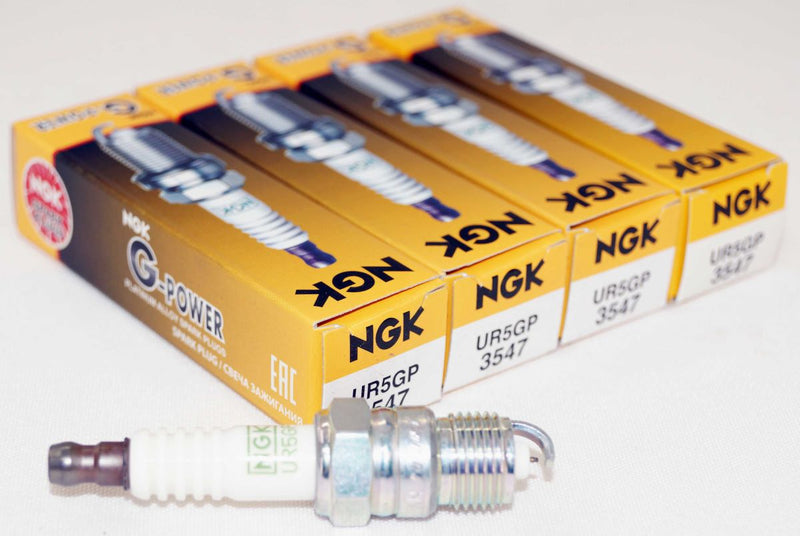

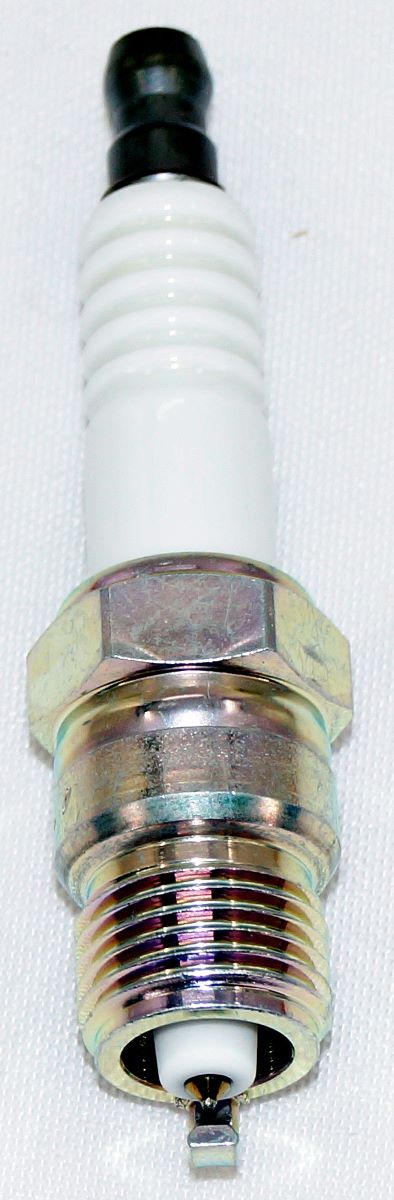

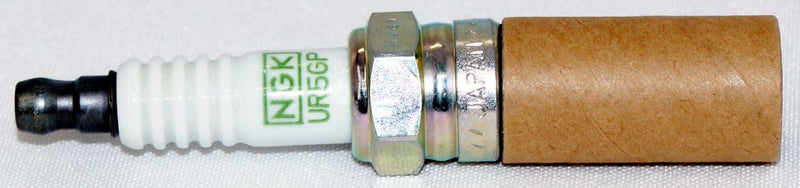

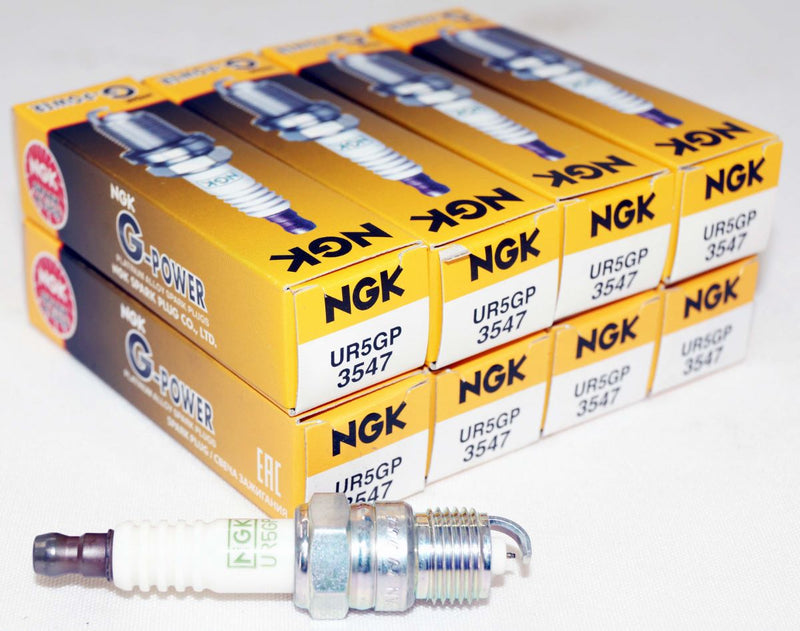

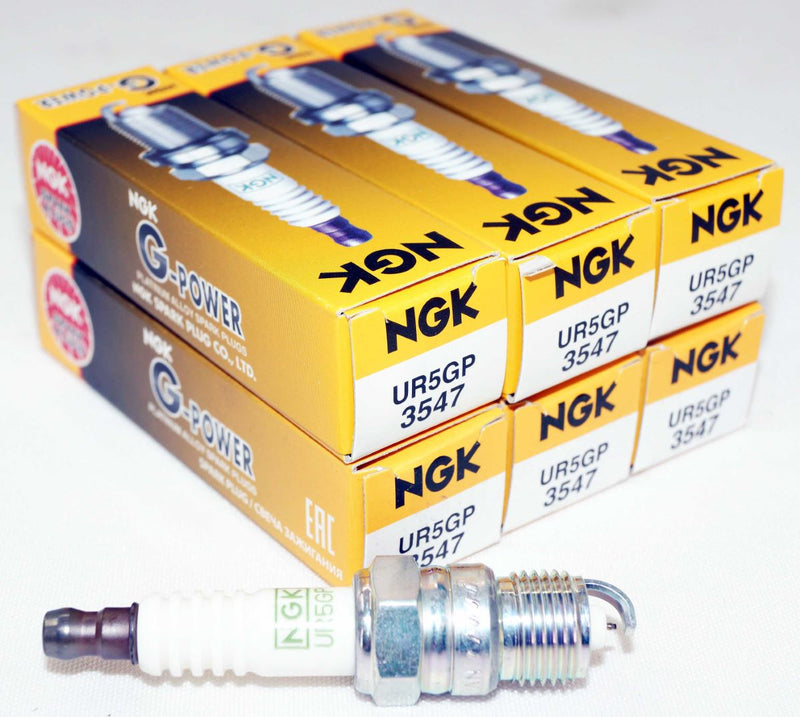

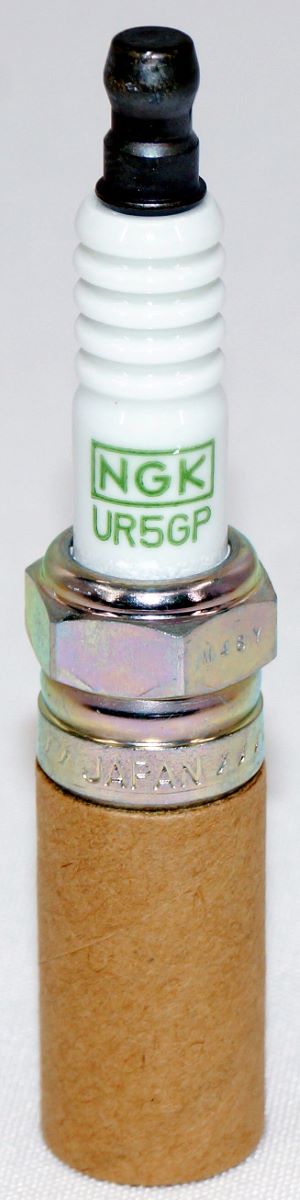

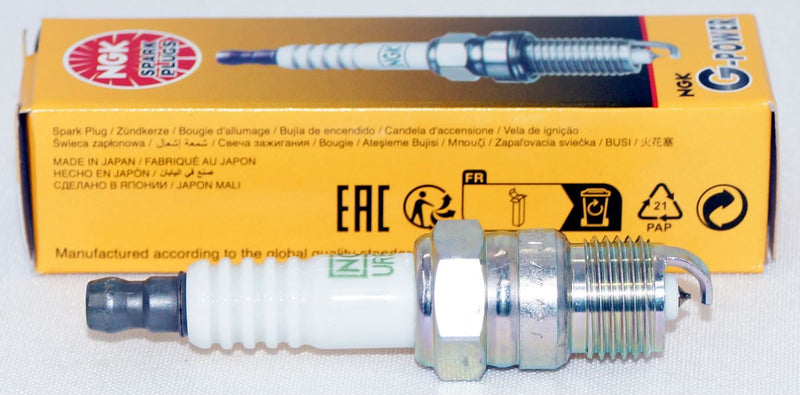

NGK 3547 G-Power Platinum Spark Plug UR5GP

3547 / UR5GP - G-Power Platinum Spark Plug by NGK, Platinum spark plugs by NGK are designed to improve fuel efficiency, lower emissions, and provide quicker starts while remaining durable under high heat. With 0.6 mm platinum alloy tip laser welded to the center electrode, platinum spark plugs provide maximum spark with minimal voltage required and ensure precise gap during the life of the plug.

Thread Diameter: 14 mm
Thread Pitch: 1.25 mm
Seat Type: Tapered
Reach: 11.6 mm (.460")
Hex Size: 5/8" (16 mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .039" (1.0 mm)
Center Electrode
Material: Platinum
Type: Fine Wire
Size: 0.6 mm
Projection: Projected
Ground Electrode
Material: Nickel
Type: Standard
Shape: Trapezoid
Quantity: 1
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 5
Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 7.2-14.5 lb. ft.
Electrode Material: Platinum
Nominal Gap: 1 mm

• Mfg Part No: 3547 UR5GP
• Related Part No: 3547 UR5GP
