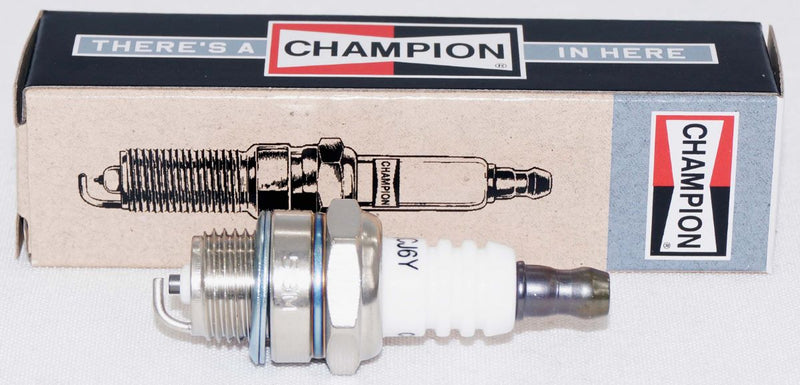

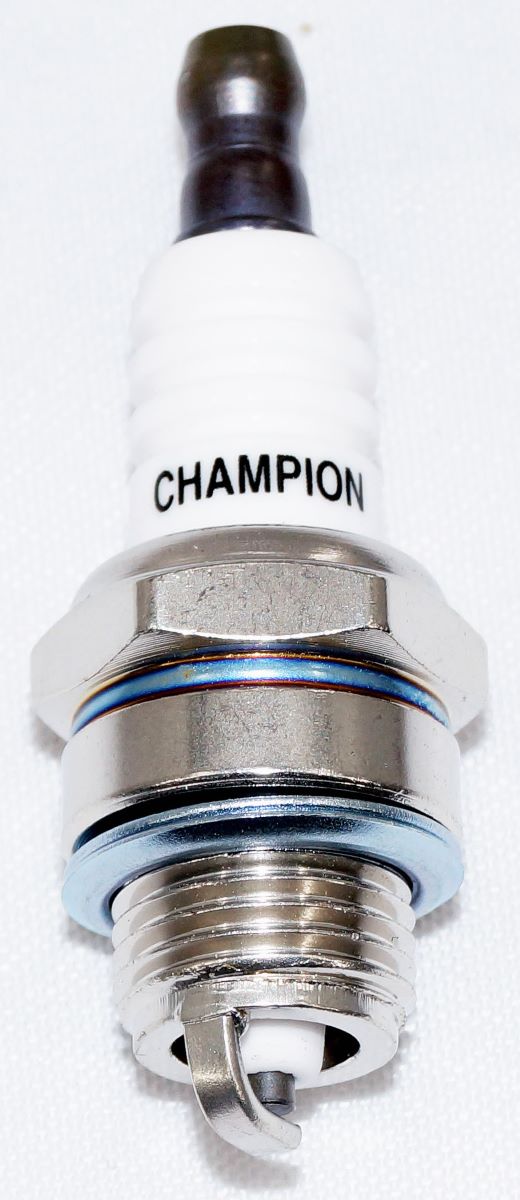

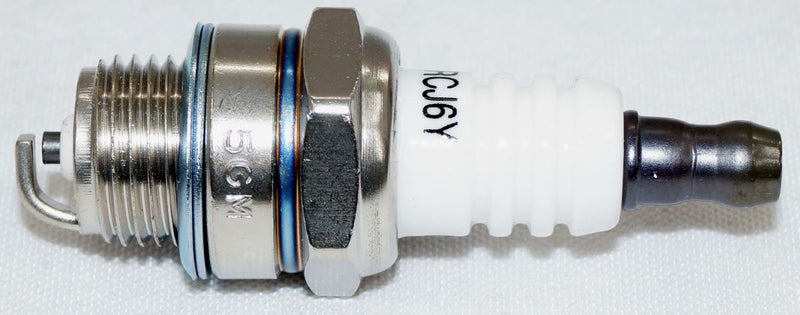

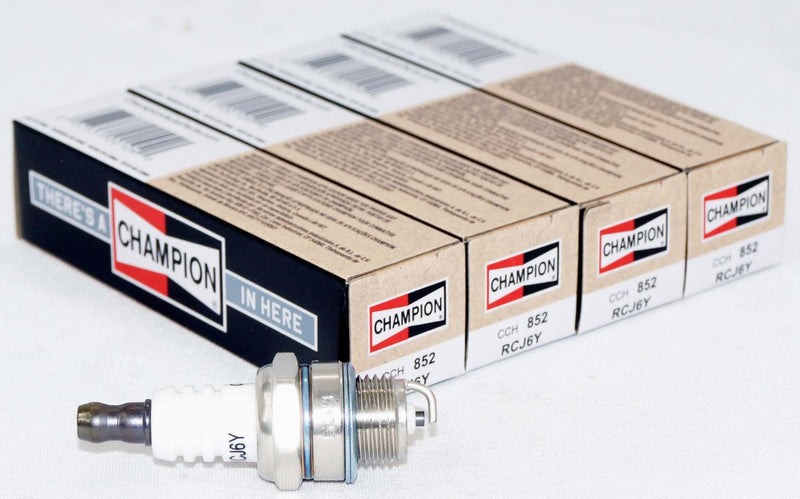

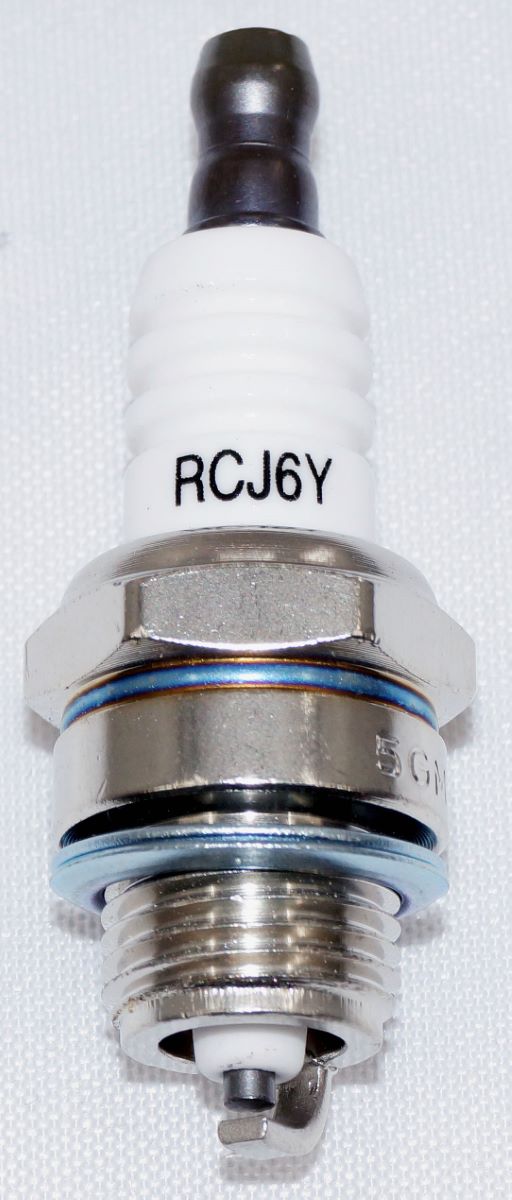

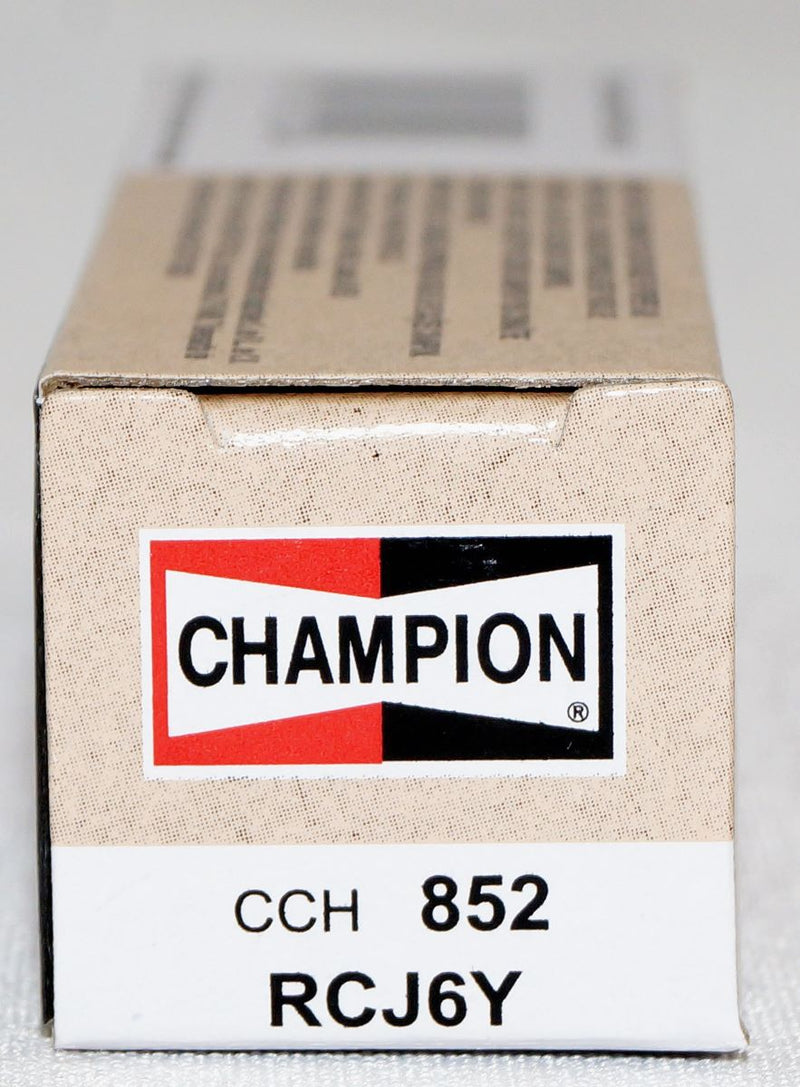

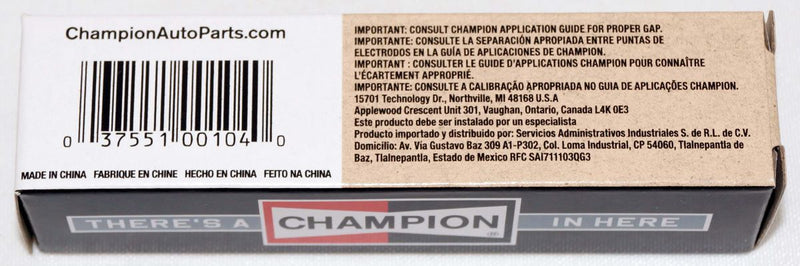

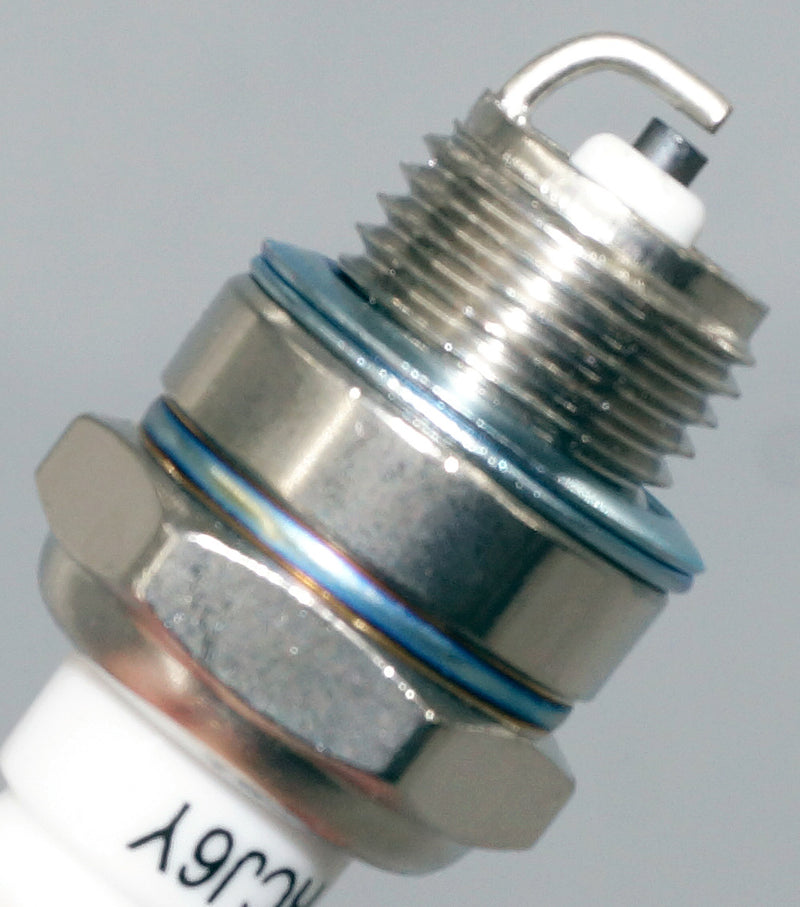

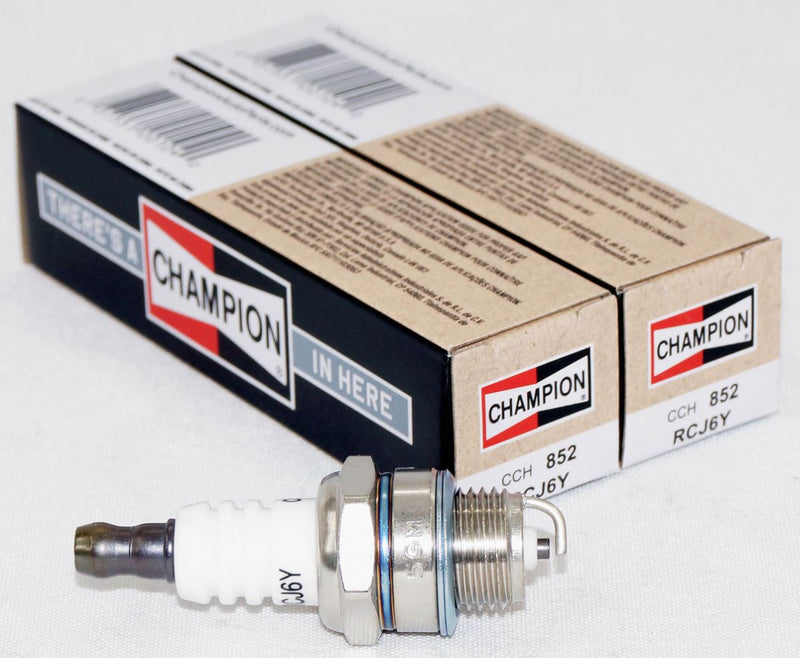

Champion Copper Plus 852 Spark Plug RCJ6Y

Champion Copper Plus 852 Spark Plug RCJ6Y

Plug Type: RCJ6Y

Part Description: Spark Plug

Classification: Champion Copper Plus Small Engine

Grade Type: Standard Replacement

Center Electrode Tip Material: Nickel

Center Electrode Design: Standard

Center Electrode Diameter: 0.094 in

Ground Electrode Quantity: 1

Ground Electrode Material: Nickel Copper Alloy

Ground Electrode Core Material: Nickel

Ground Electrode Tip Material: Nickel

Ground Electrode Tip Design: J-Gap

Gap Style: J-Gap

Pre-Gap Size: 0.025 in (0.64 mm)

Hex Type: Hex

Hex Size: 0.748 in (19.0 mm)

Seat Type: Flat

Reach: 0.375 in

Thread Diameter: 0.551 in (14.0 mm)

Insulator Height: 0.06 in

Insulator Projection: 0.06 in

Installed Height: 1.45 in

Taper Diameter: 0.25 in

Manufacturer Heat Range: 6

Resistor Type: Yes

Electrical Terminal Type: Non-Removable Nut

Washer Included: Yes

Washer Type: Crush

Indexed: No

Prop 65 Regulated: No

• Mfg Part No: 852-CH
• Related Part No: RCJ6Y 852
