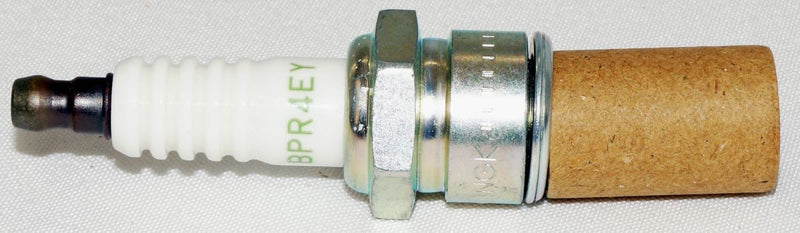

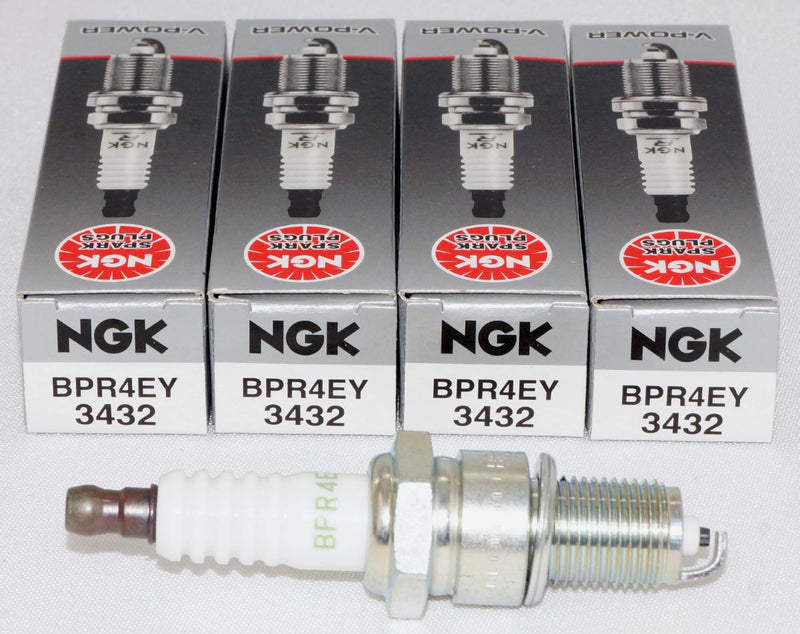

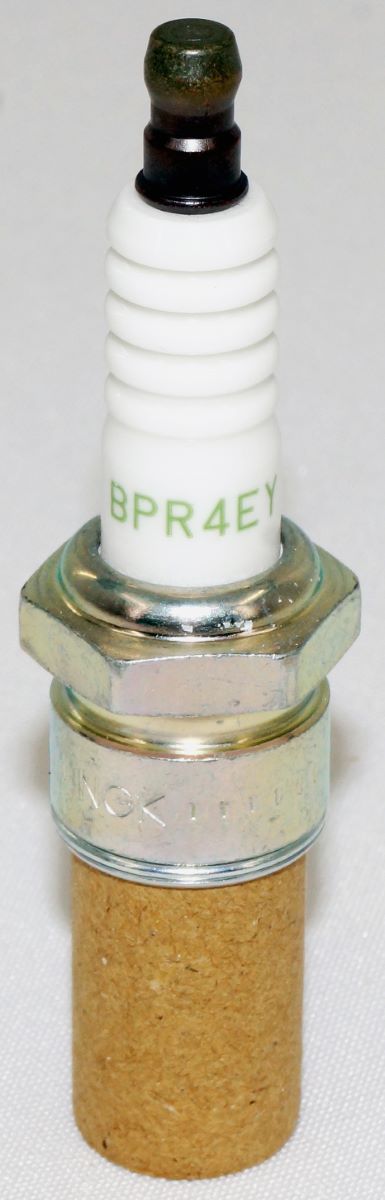

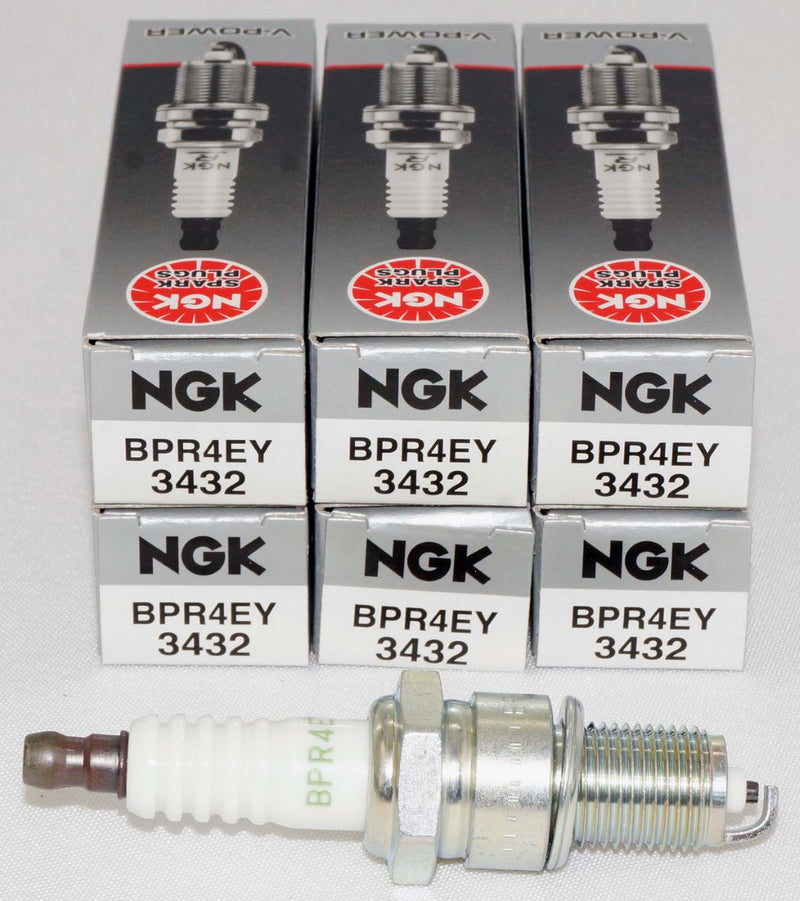

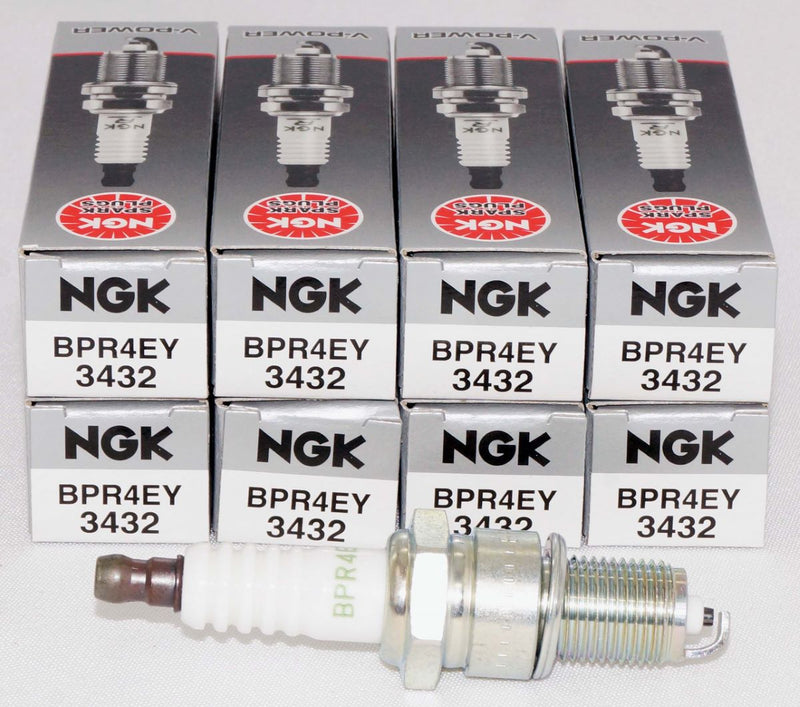

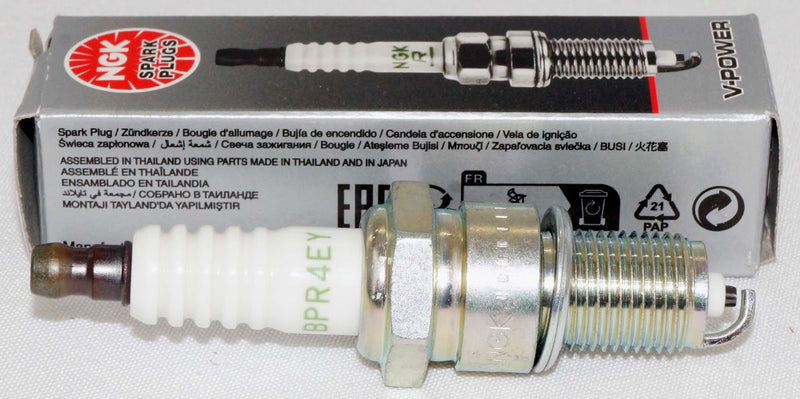

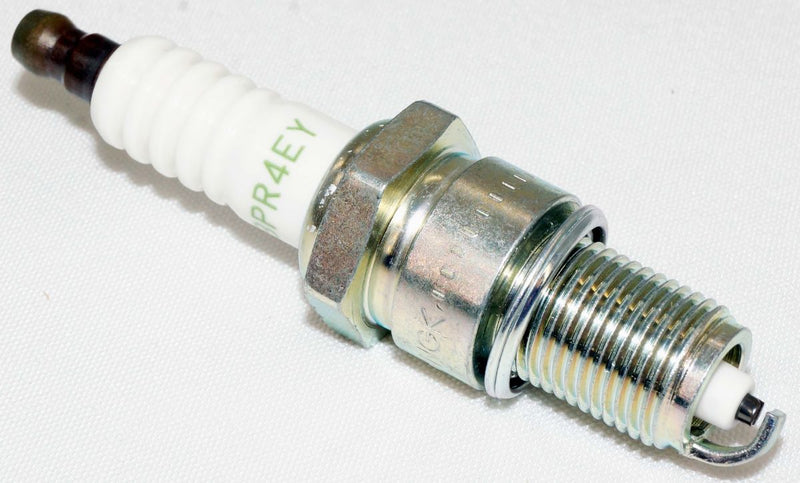

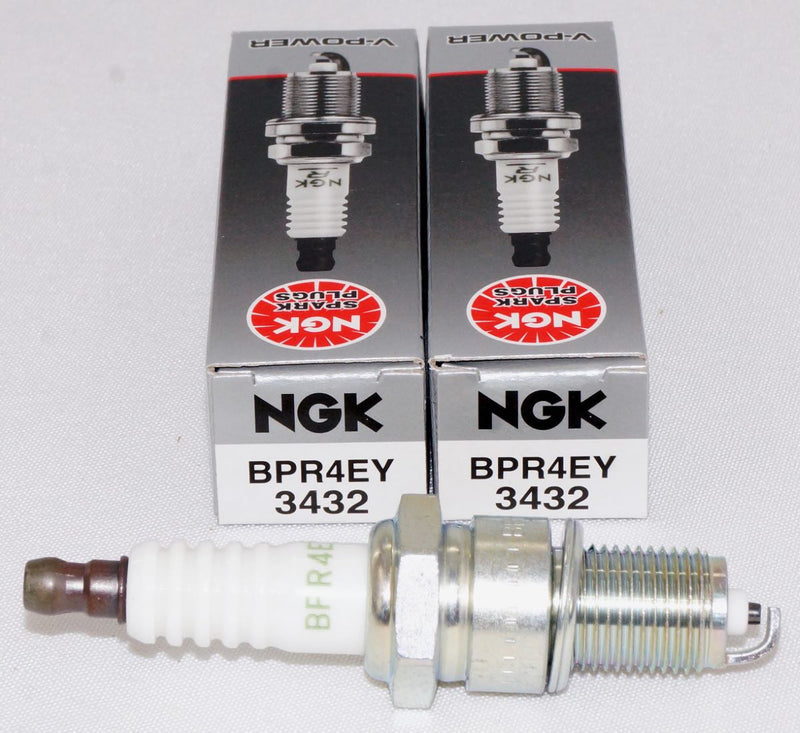

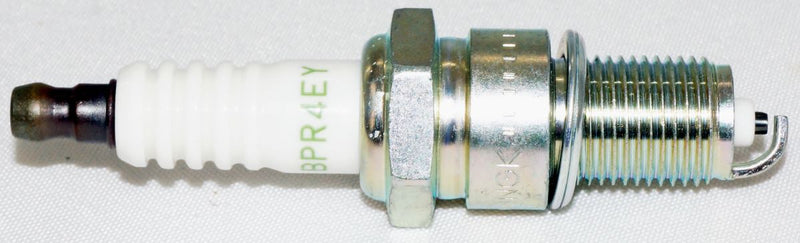

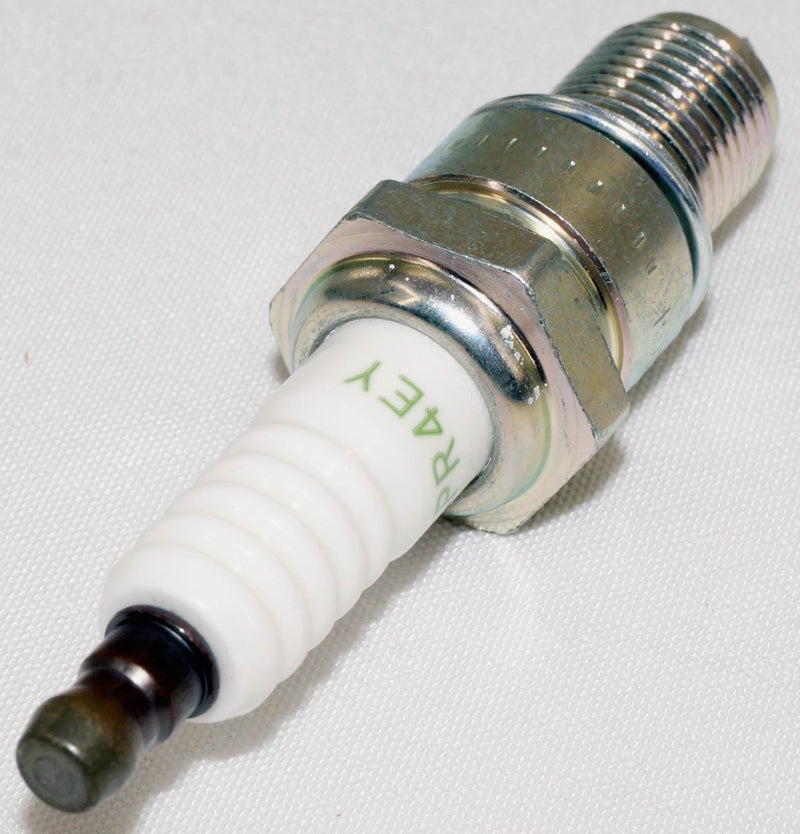

NGK 3432 BPR4EY V-Power Spark Plug

3432 / BPR4EY - NGK Spak Plug

2.5mm Insulator Projection

NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

Trivalent metal plating provides superior anti-corrosion and anti-seizing properties

Corrugated ribs prevent flashover

Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer

Copper core aids in heat removal

Triple seals prevent leakage

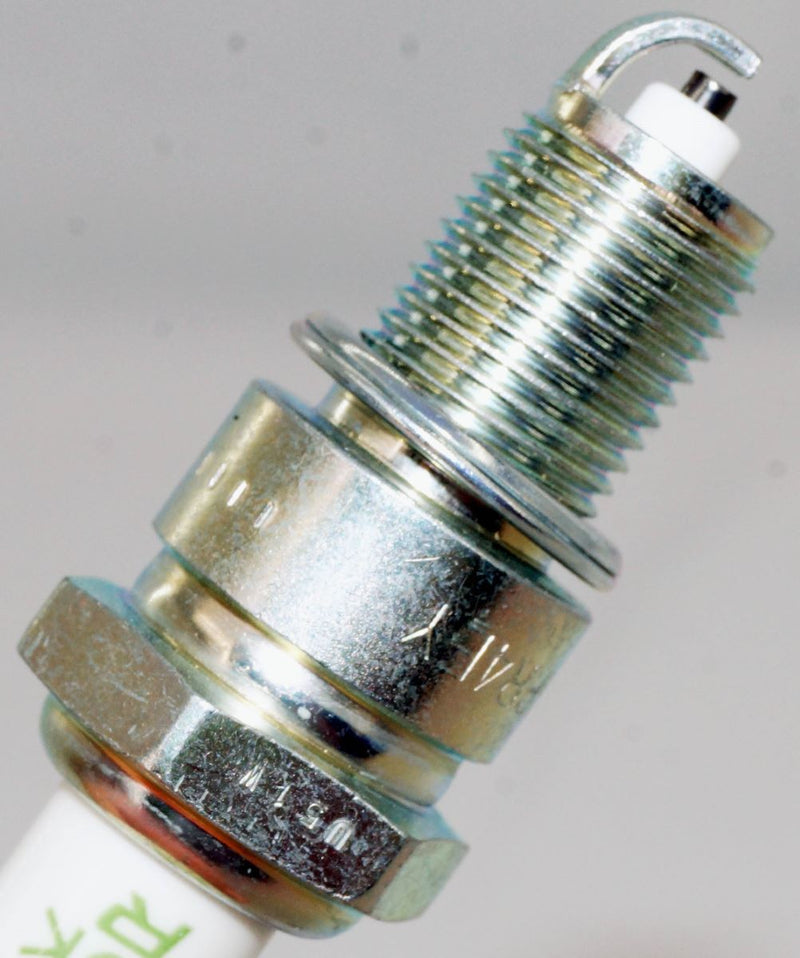

Shell
Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 19mm (3/4")
Hex Size: 13/16" (21mm)
Terminal Type: Solid
Overall Height: JIS
Gap: .035" (0.9mm)

Center Electrode
Material: Nickel
Type: V-Cut
Size: 2.5mm
Projection: Projected

Ground Electrode
Material: Nickel
Type: Standard

Specifications
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 4
Features: 2.5mm Insulator Projection
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

Commercial and Industrial Engines

Yamaha
YP20G (From 2000)
YP20GX
YP30G (From 2000)
YP30GX

Power Equipment Engines

Subaru-Robin
EH65 For Welders Only
EH72 Fuel Injection
EH72 Low Profile
EH72 Low Profile Fuel Injection

Pumps

Pacer Pumps
All

• Mfg Part No: 3432 BPR4EY
• Related Part No: 3432 BPR4EY
