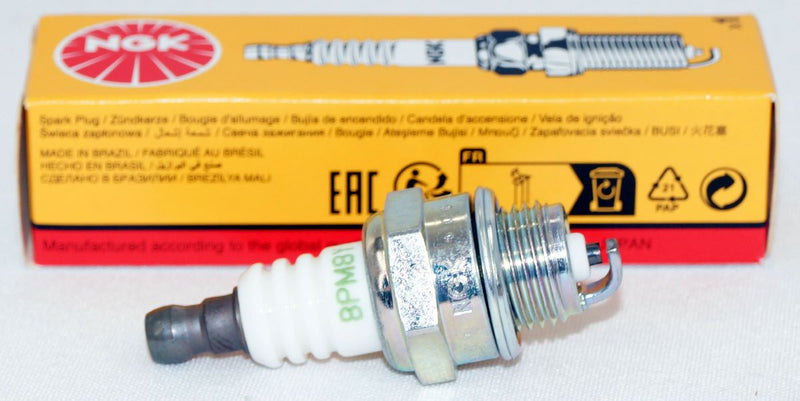

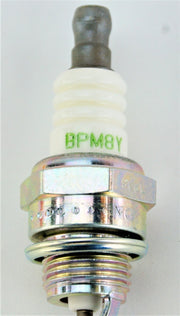

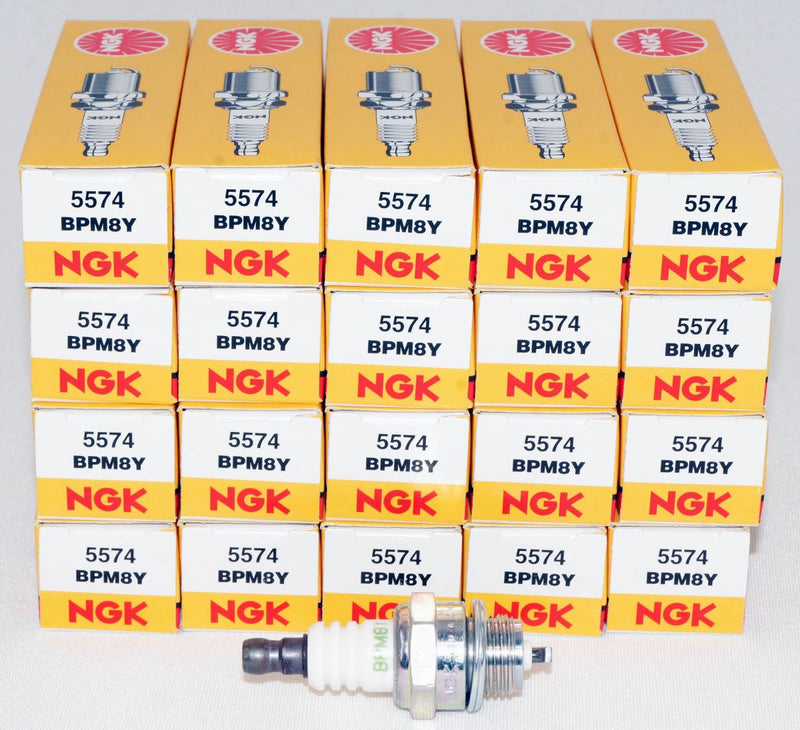

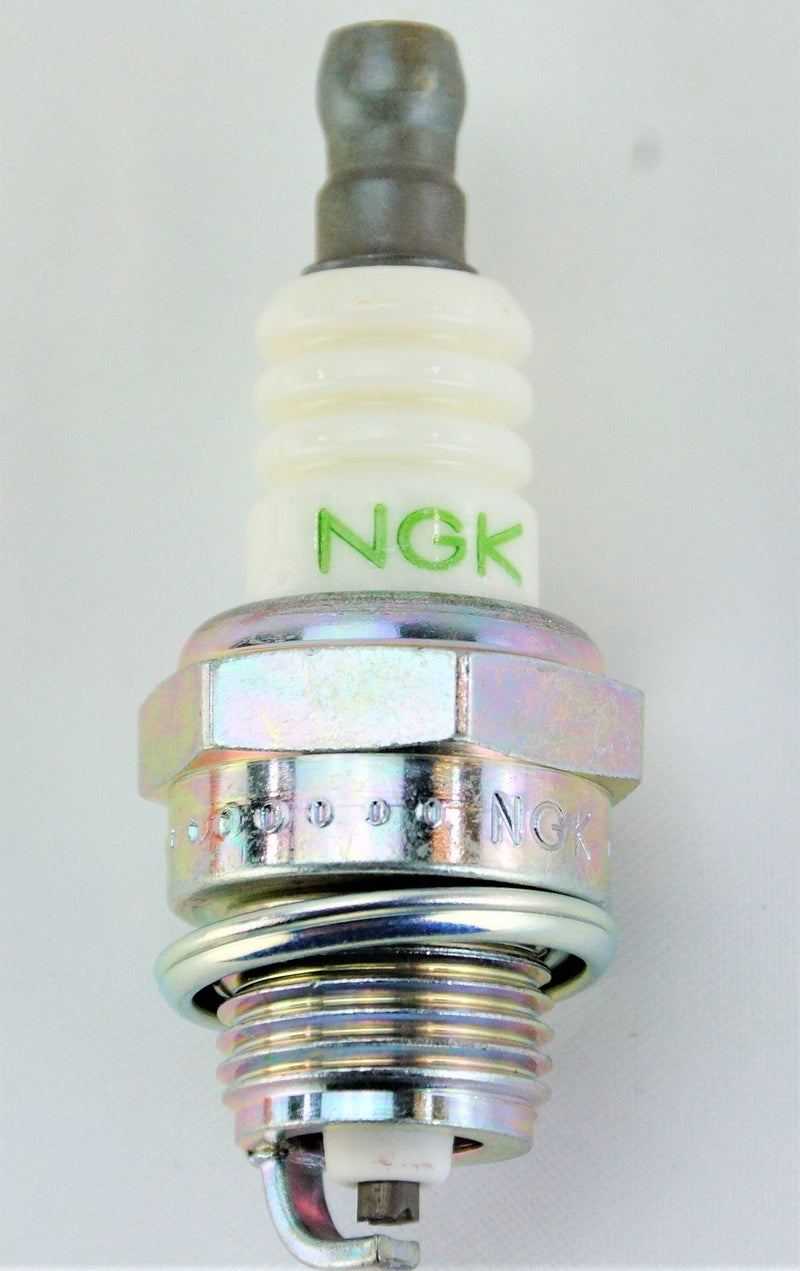

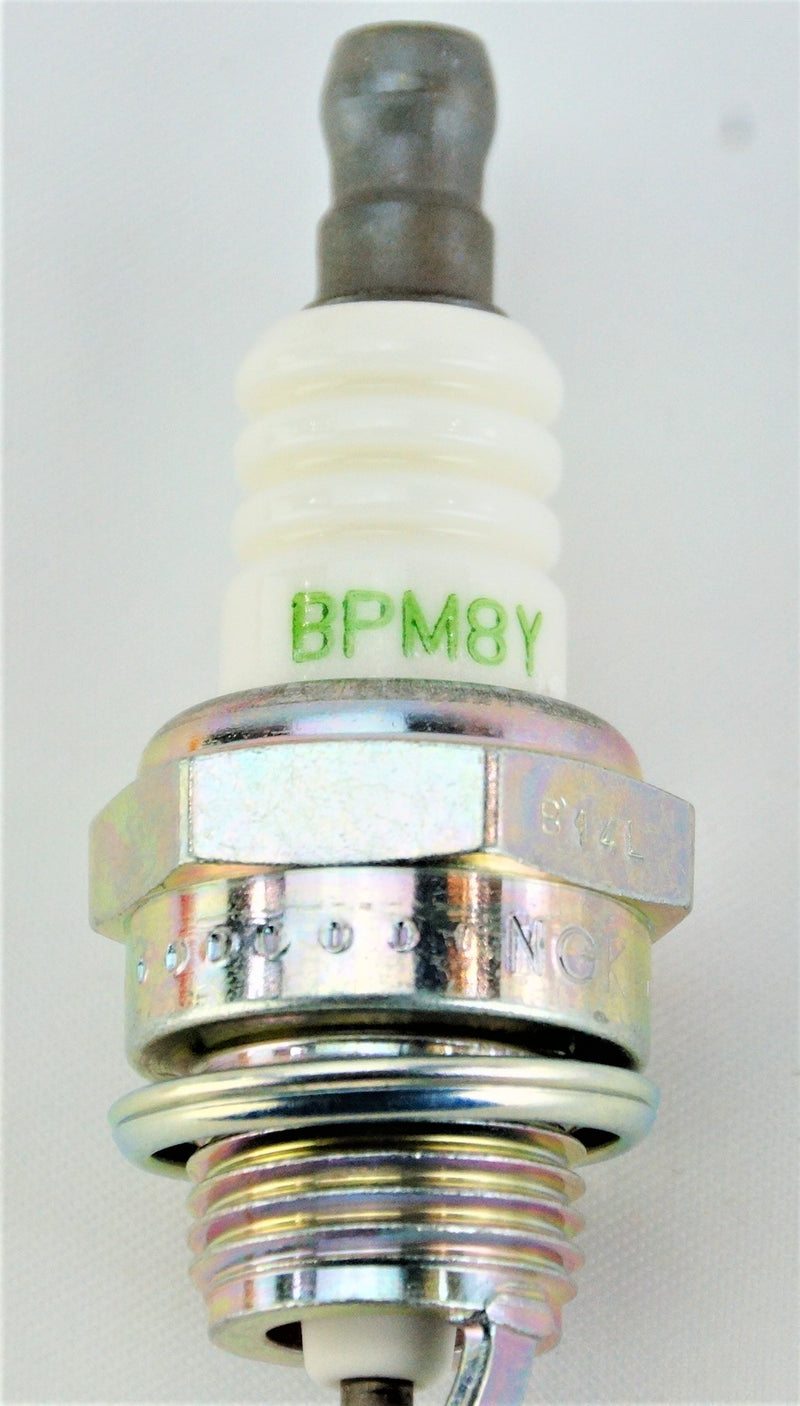

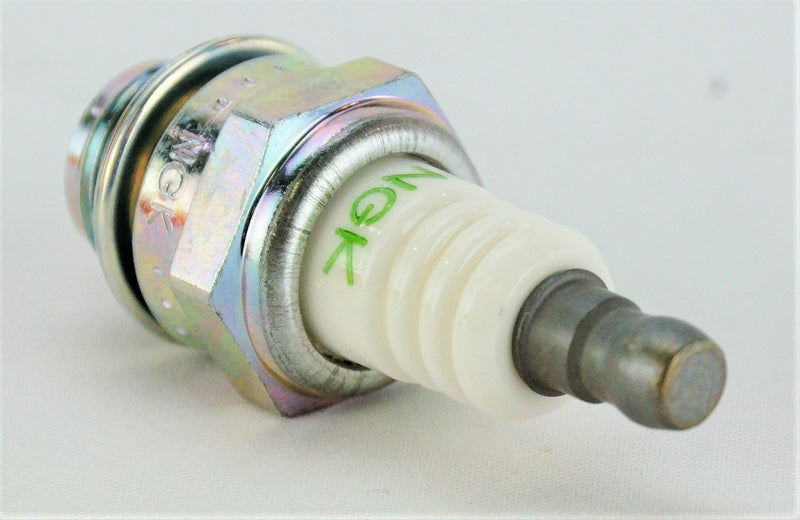

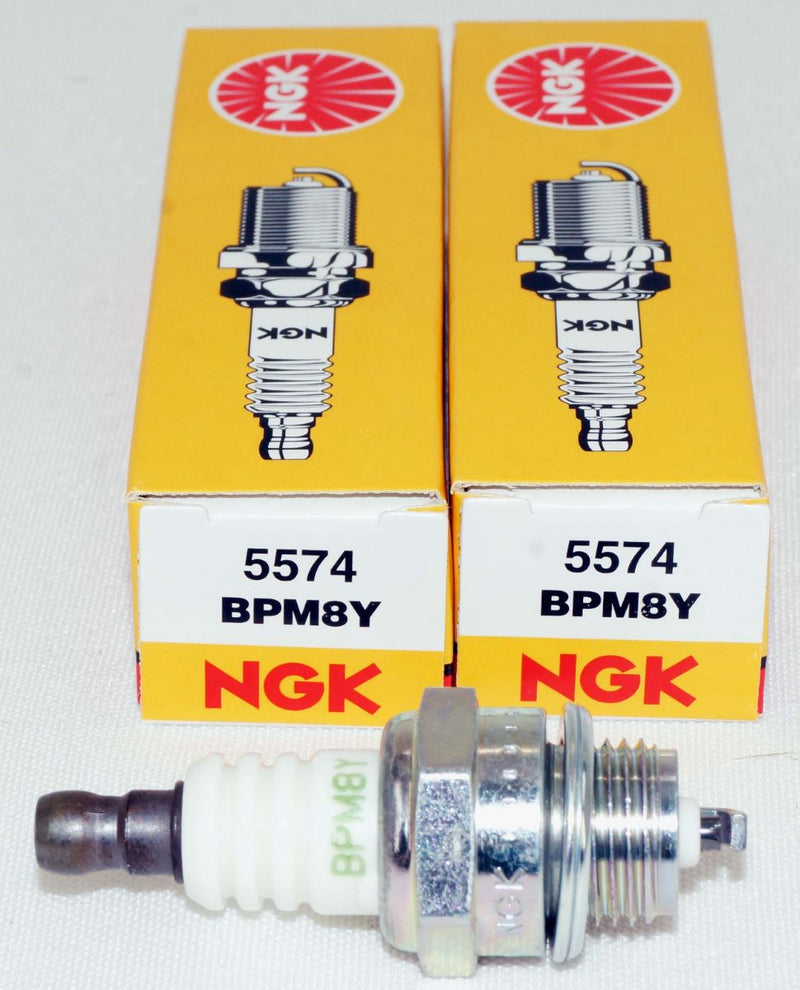

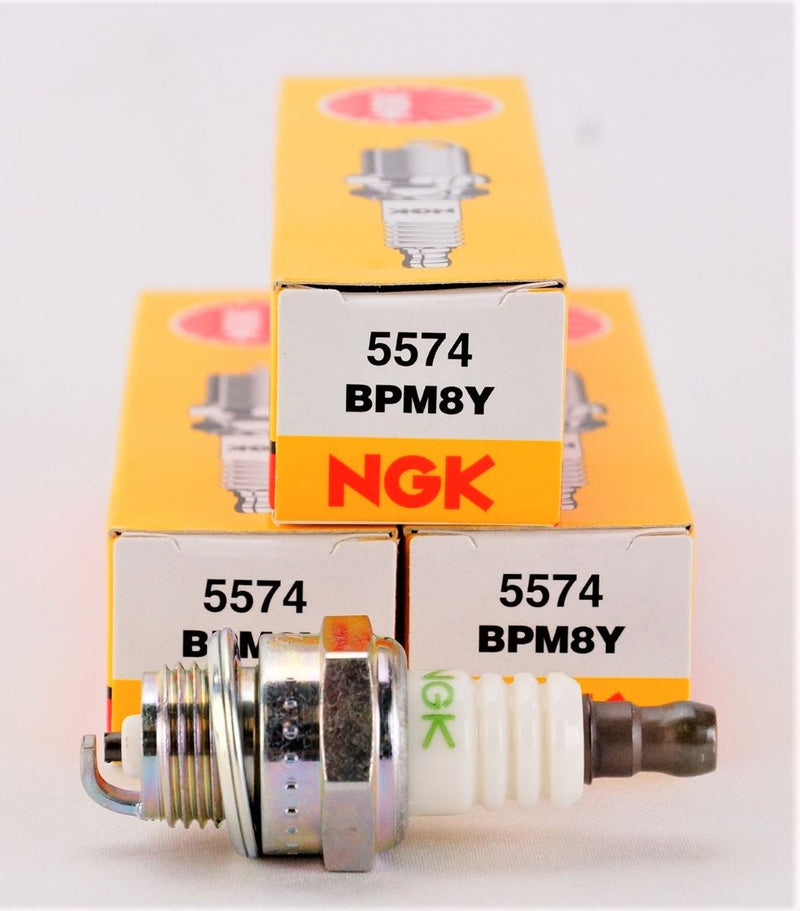

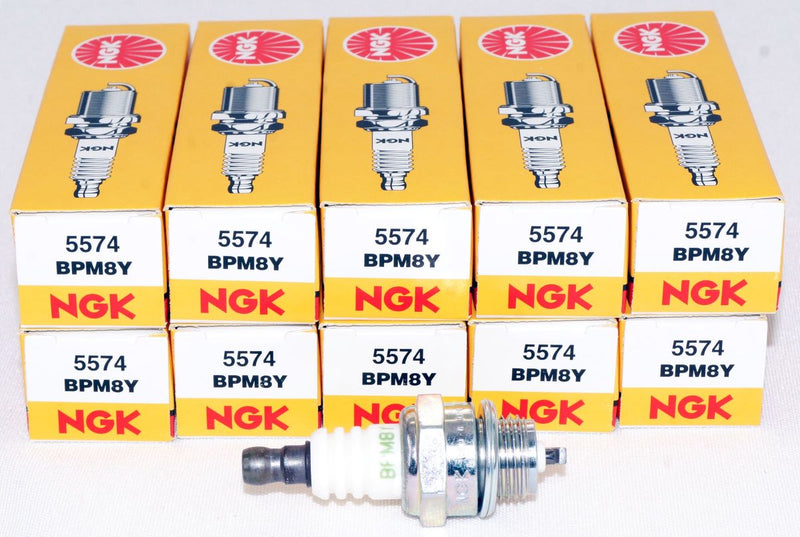

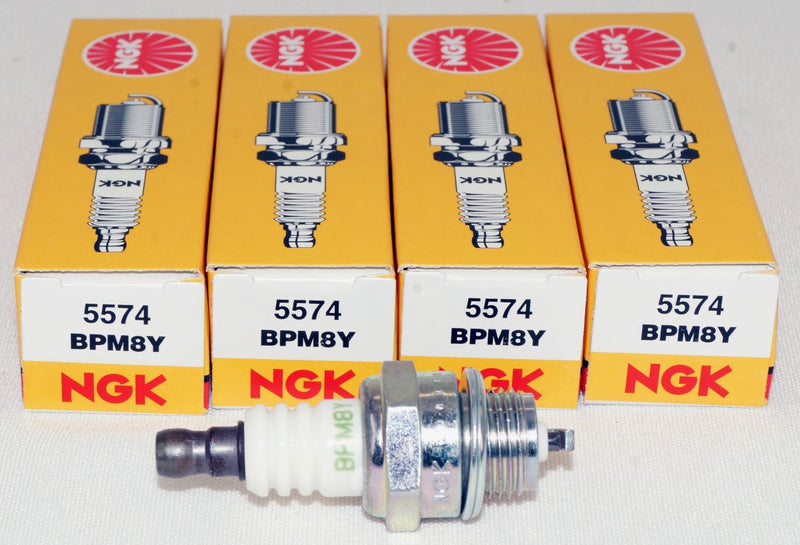

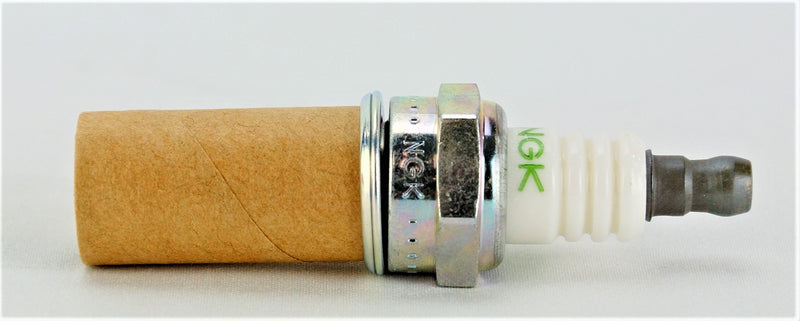

NGK 5574 V-Power Spark Plug BPM8Y

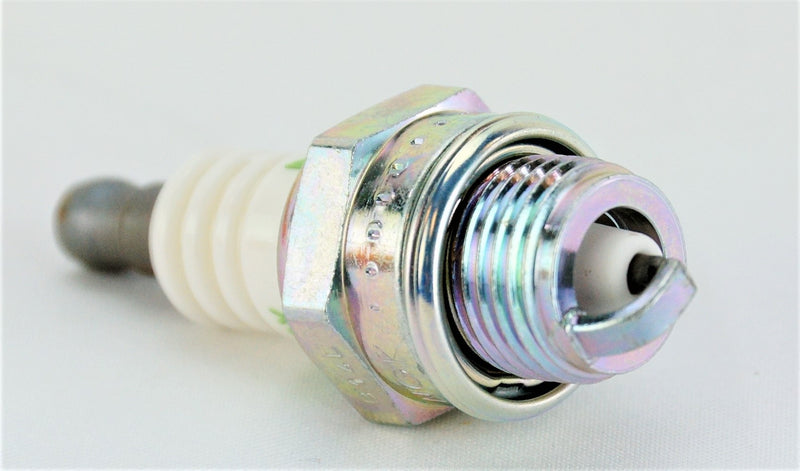

V-Power Spark Plug by NGK. Spark plugs offer higher performance compared to standard plugs. Spark plugs feature a V-groove center electrode and concave ground electrode that lowers ignition voltage requirements while guiding the spark to occur between the sharper outside edges of the electrodes for improved ignitability and performance.

Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 9.5mm (3/8")
Hex Size: 3/4" (19mm)
Terminal Type: Solid
Overall Height: Bantam
Gap: .028" (0.7mm)
Center Electrode
Material: Nickel
Type: V-Cut
Size: 2.5mm
Projection: Projected
Ground Electrode
Type: Standard
Quantity: 1
Resistor: No
Resistor Value: 1K Ohm
Heat Range: 8
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
Electrode Material: Nickel
Insulator Type: Projected
Nominal Gap: 0.7 mm

Compatible with Echo

• Blower/Chipper/Shredder/Vacuum ES-210, ES-211, ES-230, ES-231, PB-200, PB-201, PB-210, PB-211, PB-230LN, PB-231LN, PB-250LN, PB-255LN, PB-260I, PB-260L, PB-261I, PB-261L, PB-265LN, PB-403H, PB-403T, PB-410, PB-411, PB-413H, PB-413T, PB-460LN, PB-461LN, PB-46LN, PB-500H, PB-500T, PB-610, PB-611, PB-620, PB-650, PB-650H, PB-650T, PB-651H, PB-651T, PB-750H, PB-750T, PB-751H, PB-751T
• Brush Cutters/Trimmers GT-200EZR, GT-200I, GT-200R, GT-201I, GT-201IEZR, GT-201R, GT-230, GT-231, GT-251, GT-251E, HC-150, HC-150I, HC-151, HC-151I, HC-160, HC-161, HC-180, HC-181, HC-200, HC-201, HC-230, HC-231, HC-233, HC-234, HCA-260, HCA-261, HCR-150, HCR-151, SHC-210, SHC-211, SHC-212, SHC-260, SHC-261, SRB-261U, SRM-210, SRM-210I, SRM-210SB, SRM-210U, SRM-211, SRM-211I, SRM-211SB, SRM-230S, SRM-230U, SRM-231, SRM-231S, SRM-231U, SRM-251, SRM-251E, SRM-260, SRM-260S, SRM-260SB, SRM-260U, SRM-261, SRM-261S, SRM-261SB, SRM-261T, SRM-310, SRM-310S, SRM-310U, SRM-311, SRM-311S, SRM-311U
• Chain Saws CS-300, CS-300-14, CS-301, CS-341, CS-346, CS-520, CS-590 Timber Wolf, CS-600P, CS-6700, QV-6700
• Edger PE-200, PE-201, PE-231, PE-260, PE-261, PE-310, PE-311
• Engine Drill ED-200, EDR-210, EDR-260
• Pro Attachment Series PAS-231, PAS-260, PAS-261, PPF-210, PPF-211, PPT-230, PPT-231, PPT-260, PPT-261
• Sprayers SHR-210
• Tiller/Cultivator TC210I

Compatible with Shindaiwa

• Blower/Chipper/Shredder/Vacuum EB508RT
• Brush Cutters/Trimmers C242, LE242

Compatible with Comer

• Go-Karts C51

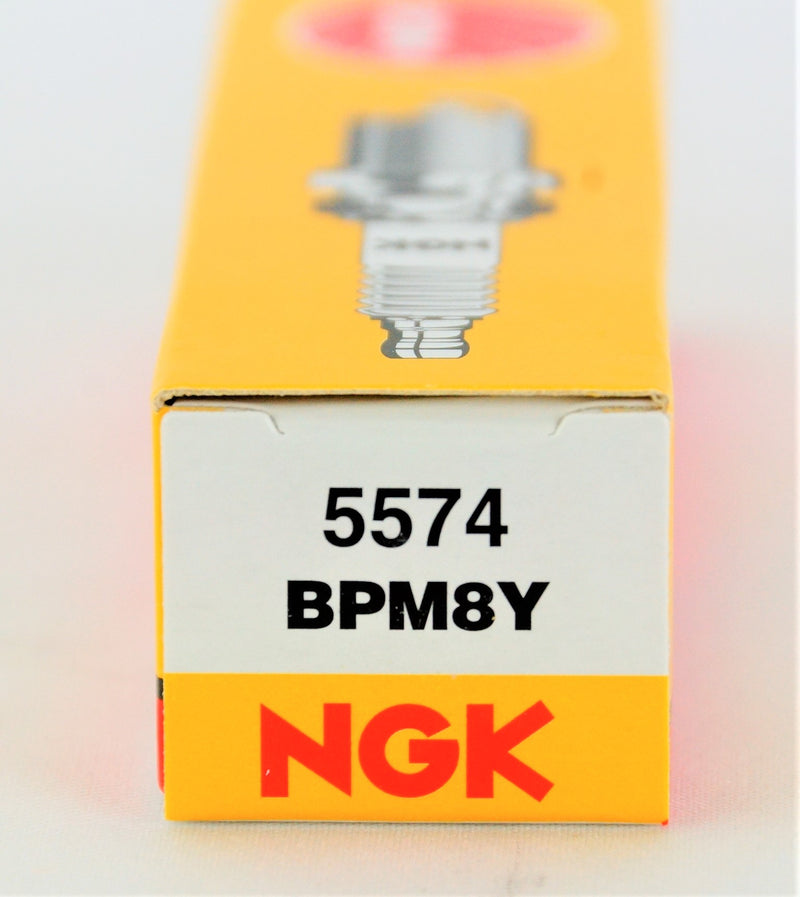

• Mfg Part No: 5574 BPM8Y
• Related Part No: 5574 BPM8Y
