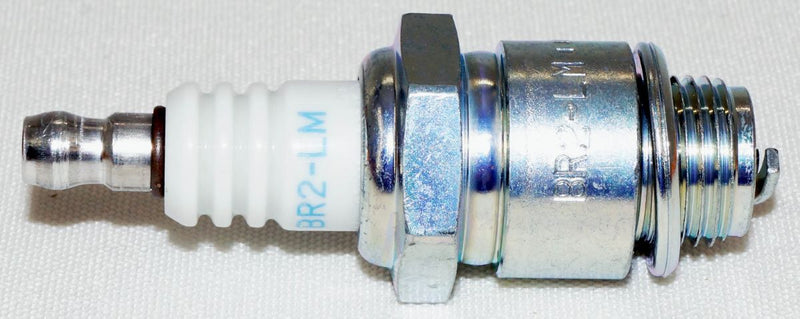

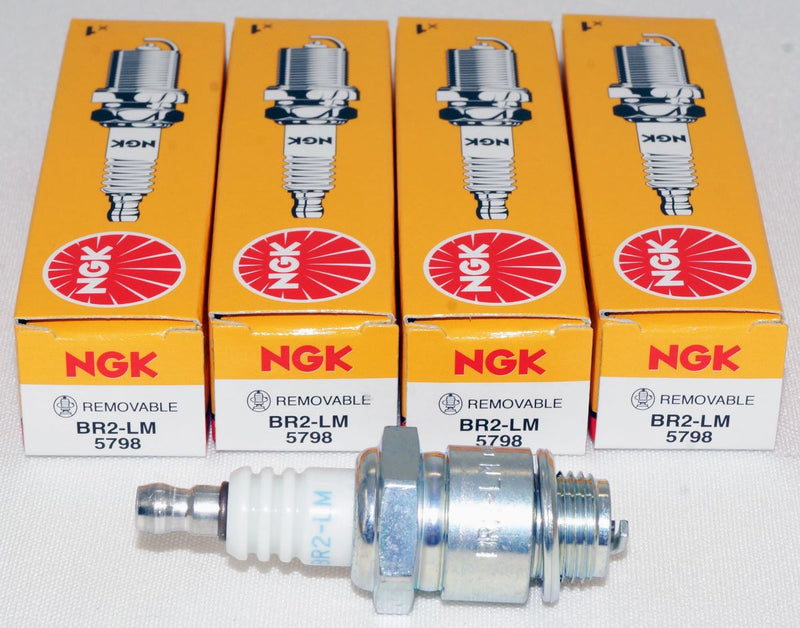

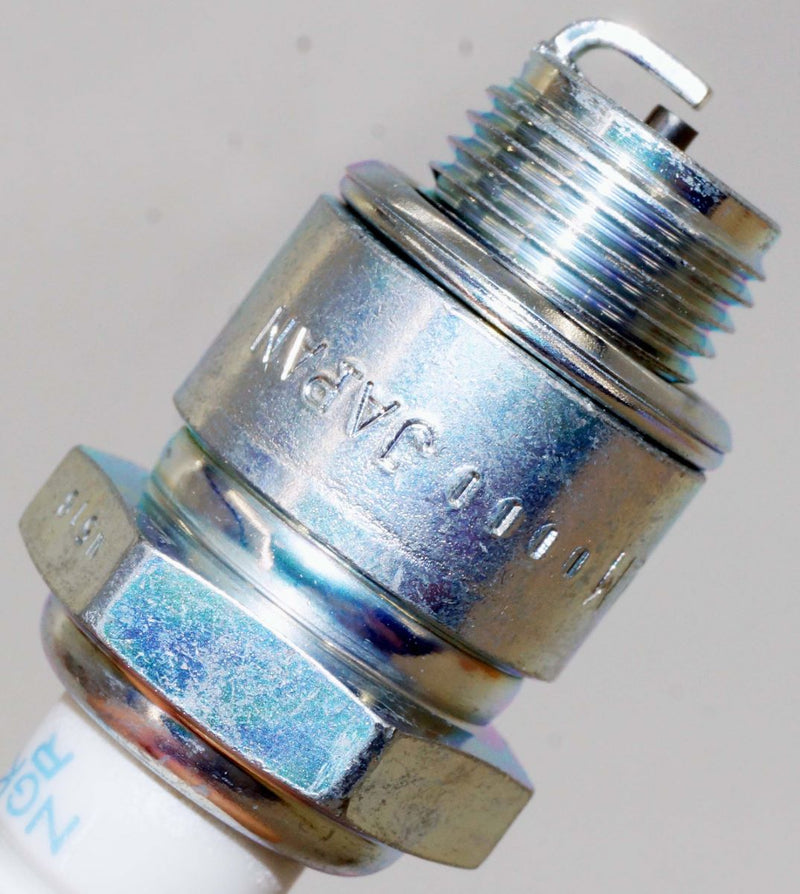

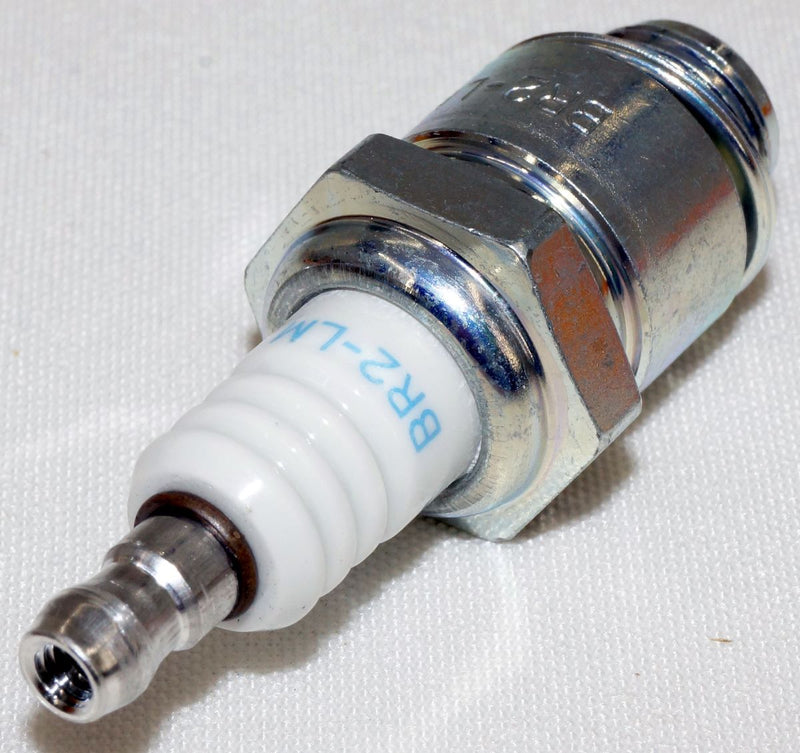

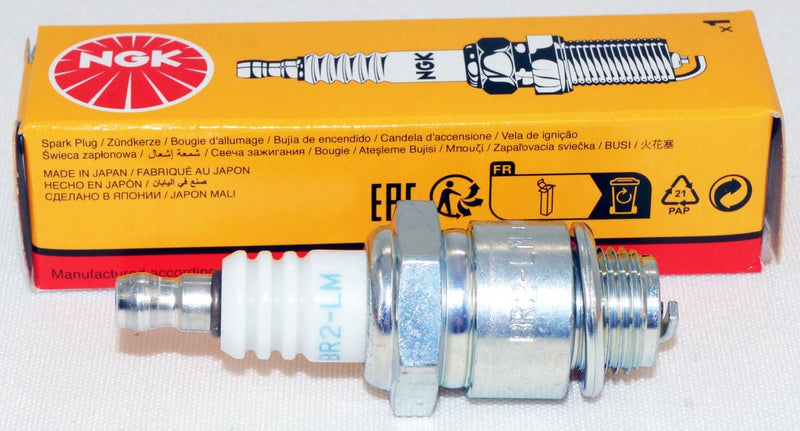

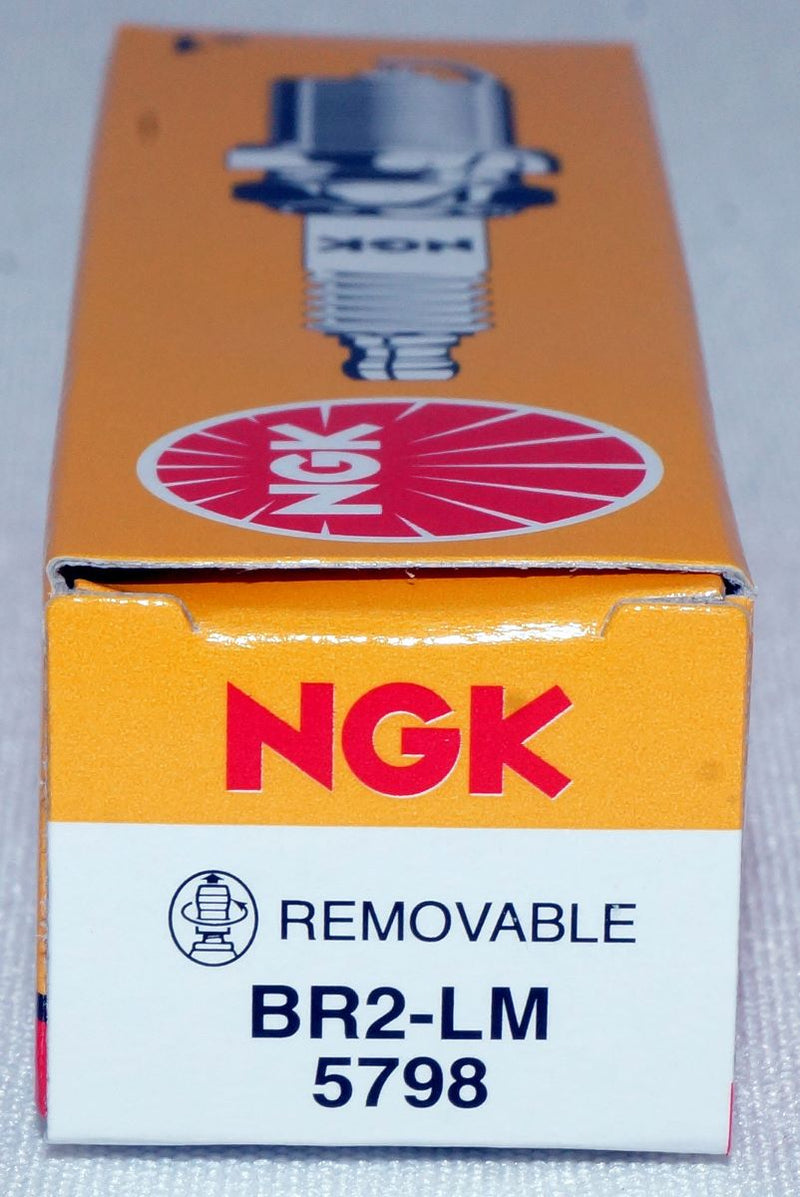

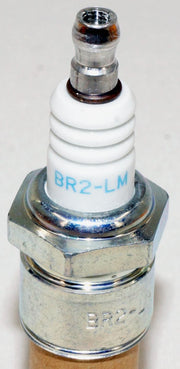

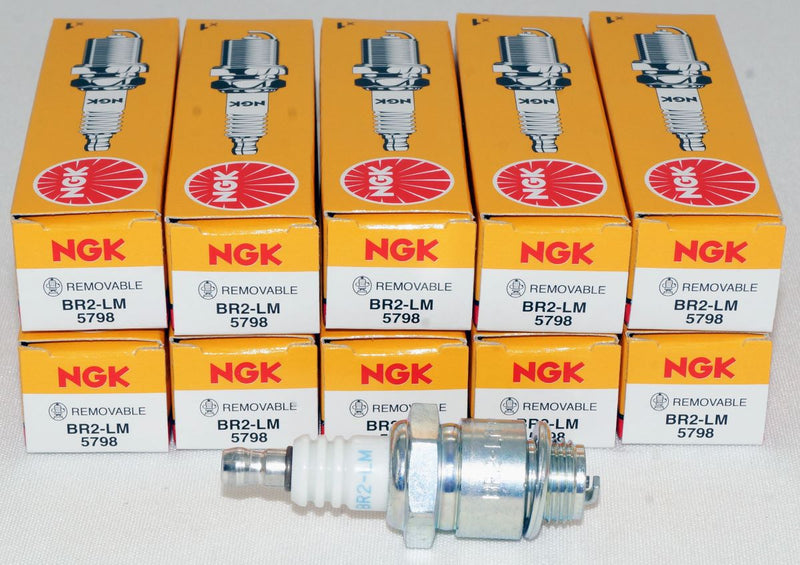

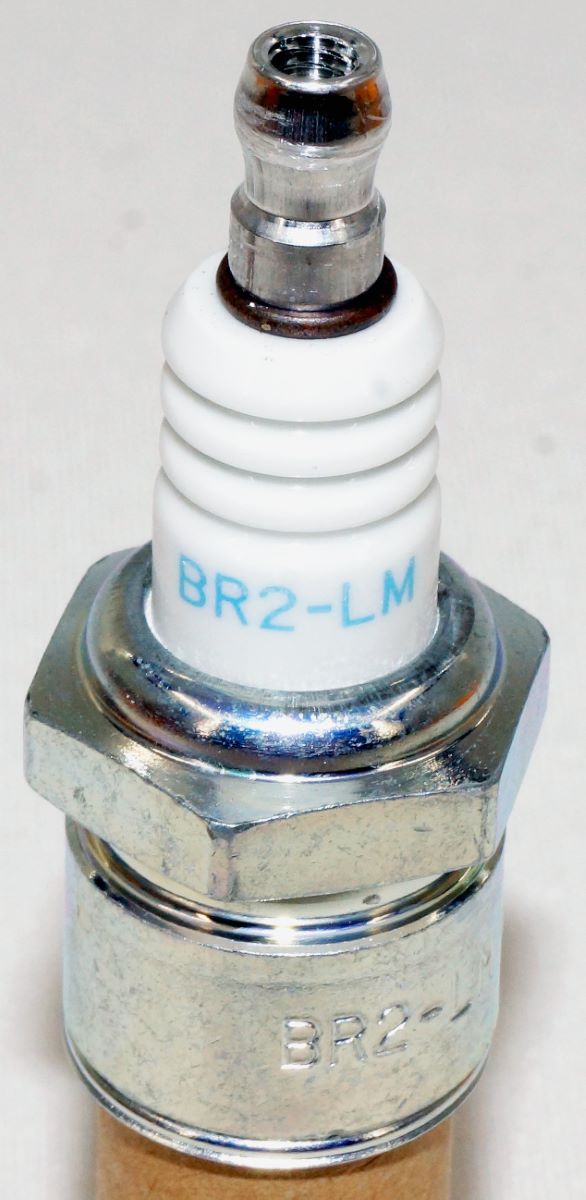

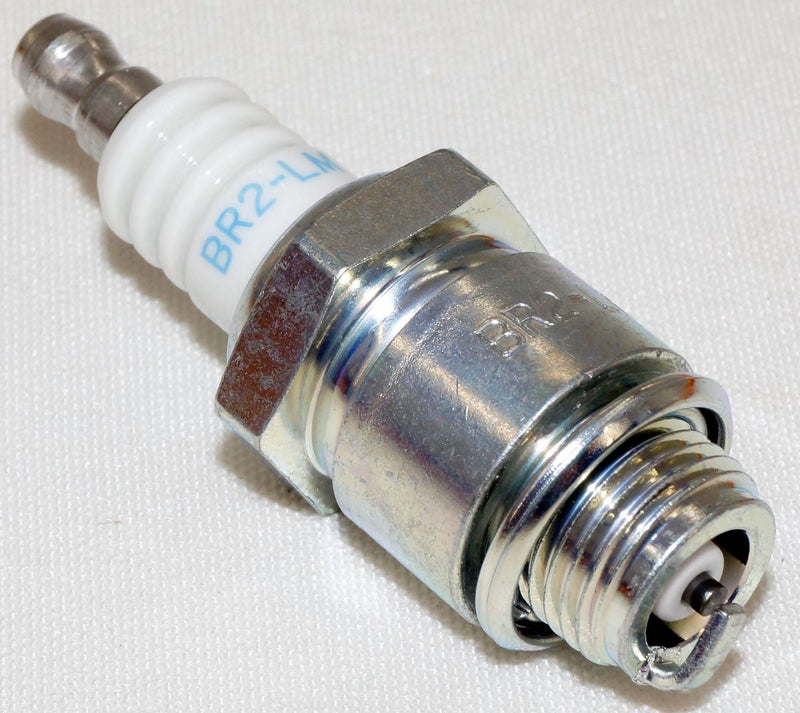

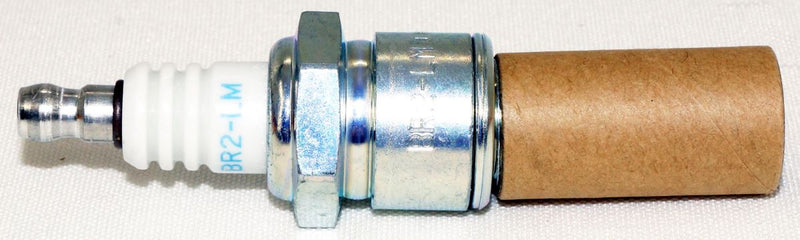

NGK 5798 BR2-LM Nickel Spark Plug

NGK standard plugs are constructed for longer life and optimum performance.
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Copper core aids in heat removal
Triple seals prevent leakage

Shell
Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 9.5mm (3/8")
Hex Size: 13/16" (21mm)
Terminal Type: Removable Nut
Overall Height: Bantam
Gap: .028" (0.7mm)

Center Electrode
Material: Nickel
Type: Standard
Size: 2.5mm
Projection: Non-Projected

Ground Electrode
Material: Nickel
Type: Standard
Quantity: 1

Specifications
Resistor: Yes
Resistor Value: 10k Ohm
Heat Range: 2
Features: 14.5mm Insulator Length
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

• Mfg Part No: 5798 BR2LM
• Related Part No: 5798 BR2LM
