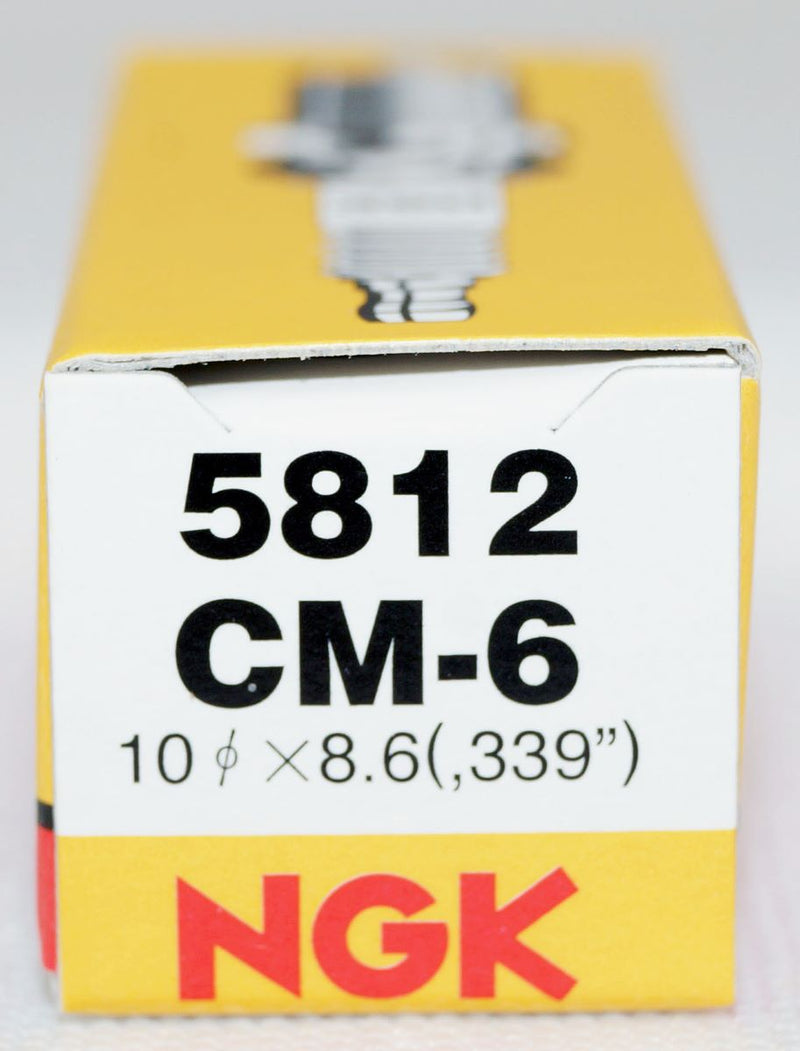

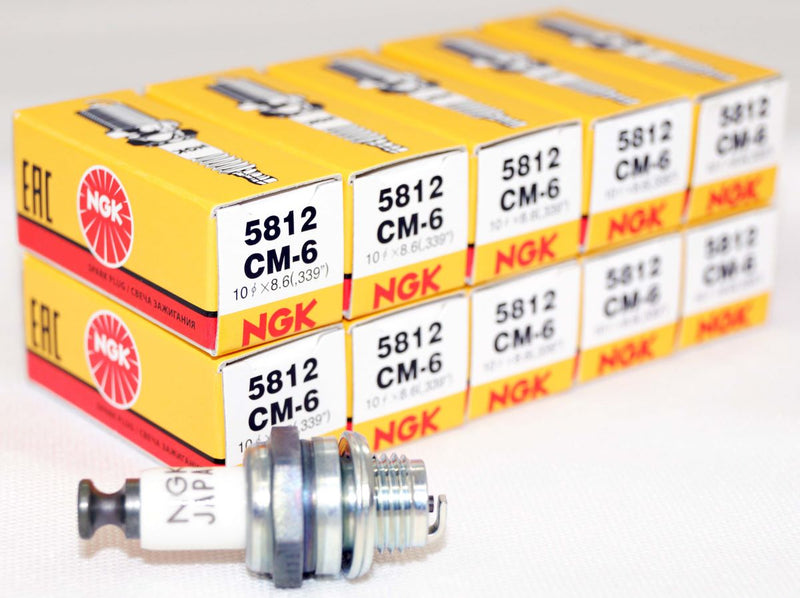

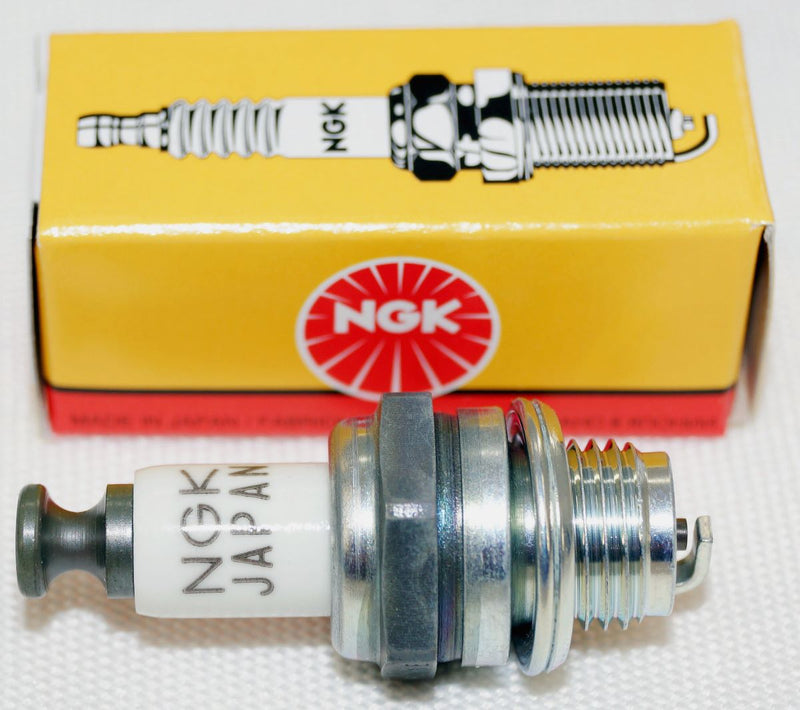

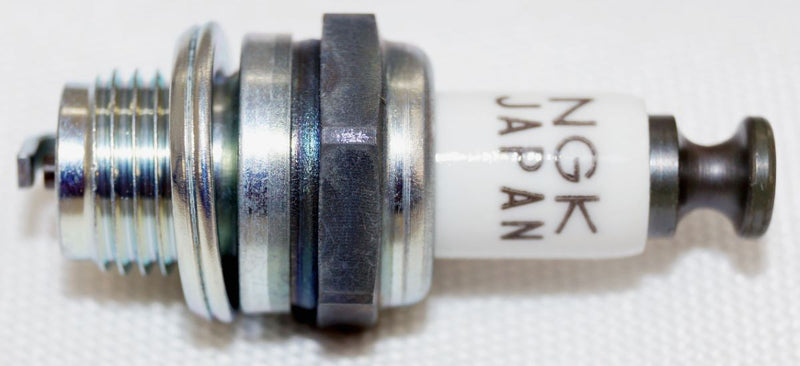

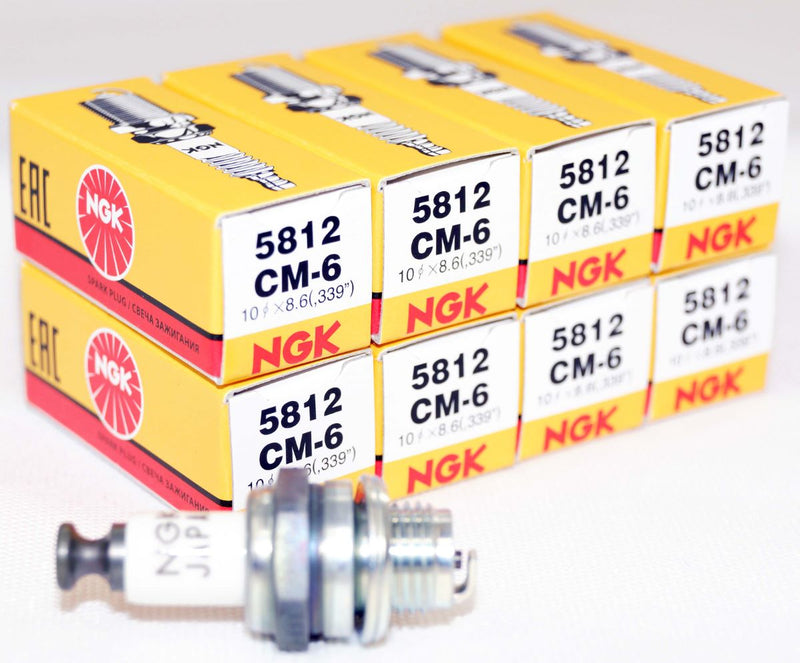

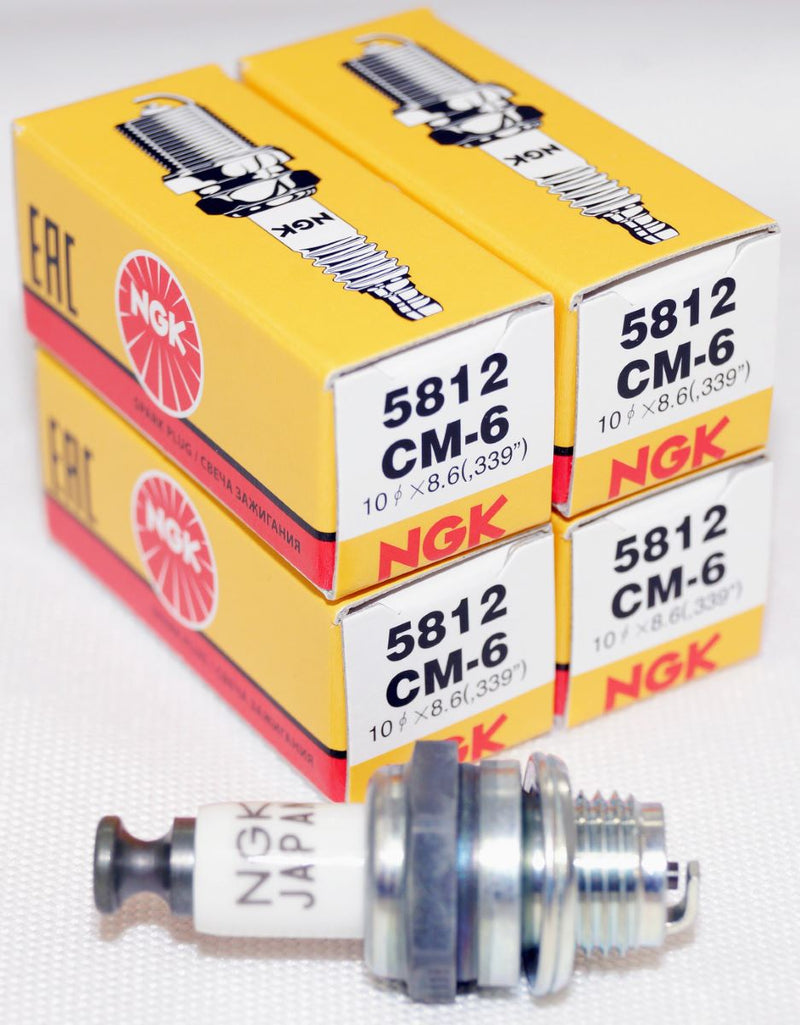

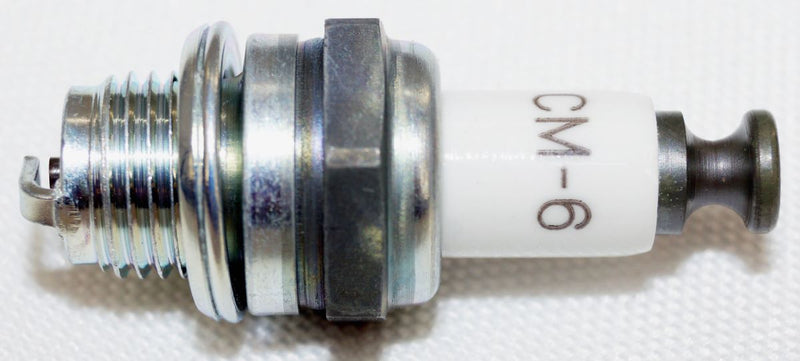

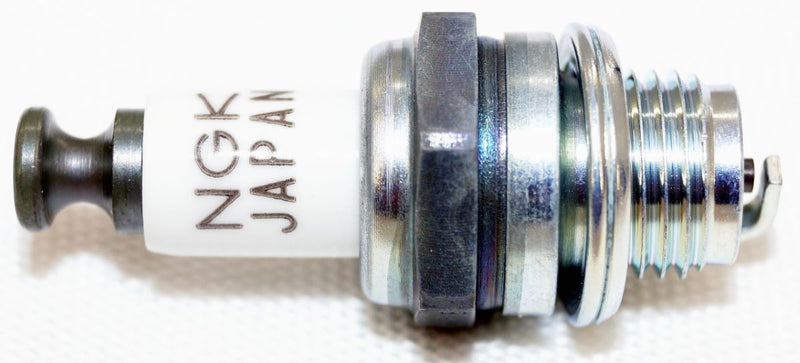

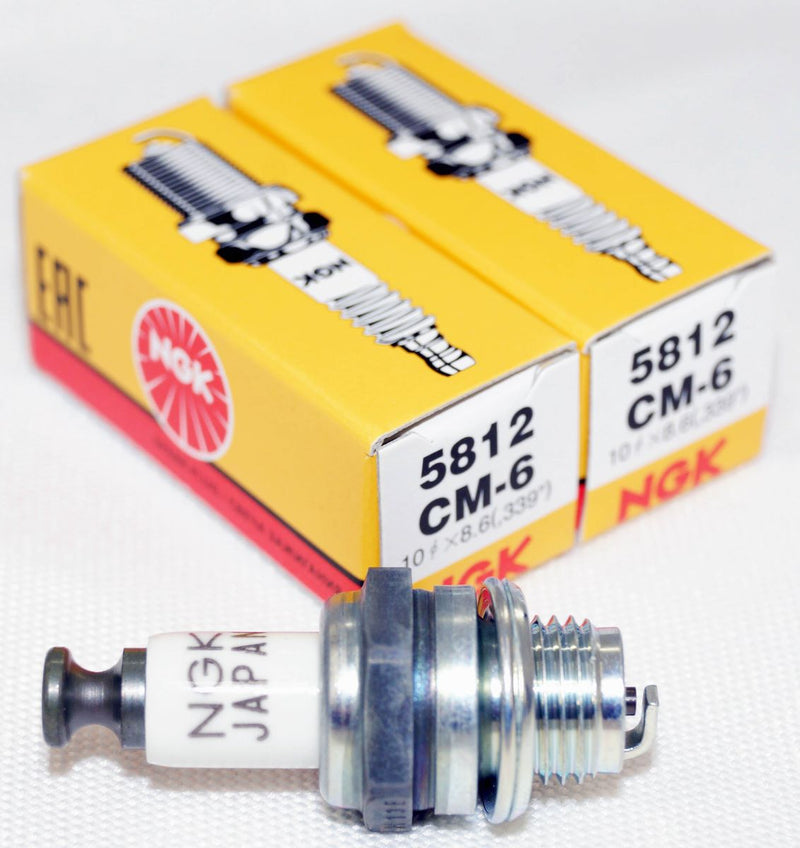

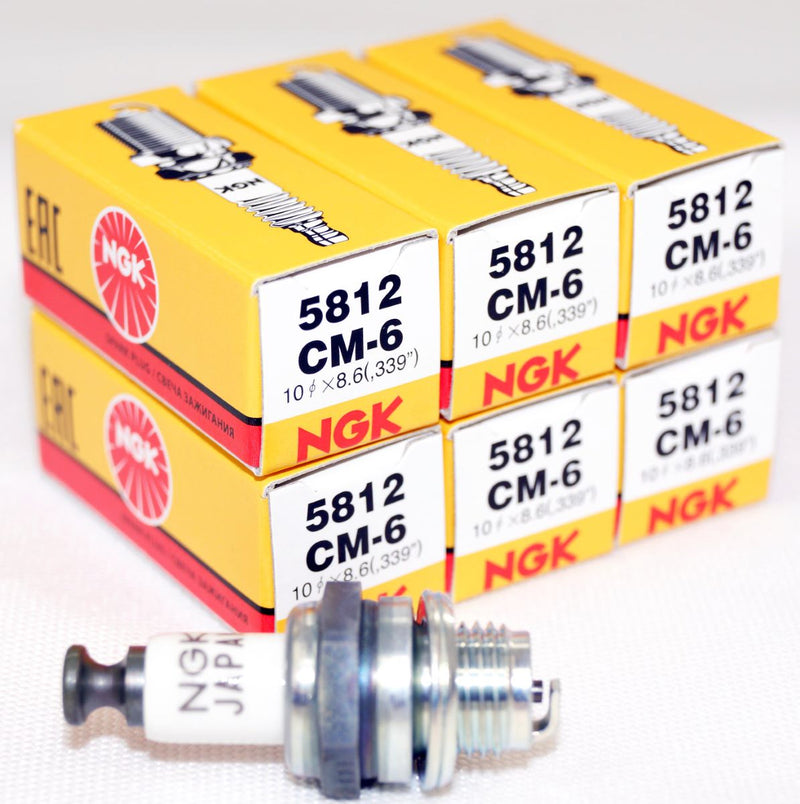

NGK 5812 Nickel Spark Plug CM6 for Generators Scale Gas Airplane Engines

5812 / CM6 NGK Nickel Spark Plug

Shell
Thread Diameter: 10mm
Thread Pitch: 1.0mm
Seat Type: Gasket
Reach: 8.5mm (.335")
Hex Size: 9/16" (14mm)
Terminal Type: Solid
Overall Height: Bantam
Gap: .016" (0.4mm)

Center Electrode
Material: Nickel
Type: Standard
Size: 2.5mm
Projection: Non-Projected

Ground Electrode
Material: Nickel
Type: Standard

Specifications
Resistor: No
Resistor Value: 1K Ohm
Heat Range: 6
Torque Specs: Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.

Generators:
Homelite
E300

Honda
E300, K1, K2, K3
E400
ED150
EM300, K1, K2, K3
EM400, K1
ER400

Suzuki
SE300

• Mfg Part No: 5812 CM6
• Related Part No: 5812 CM6
