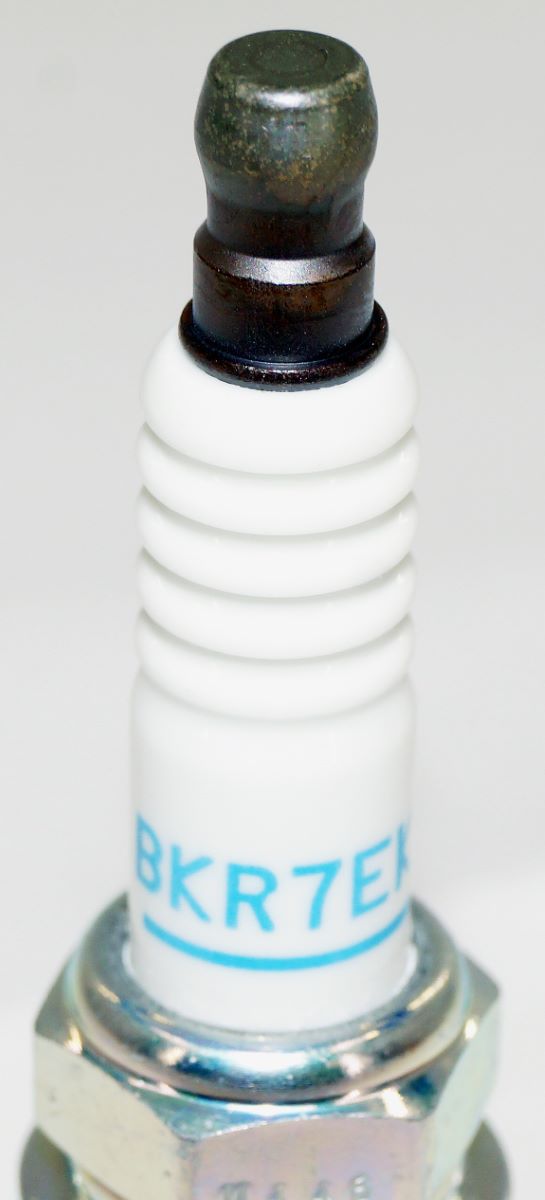

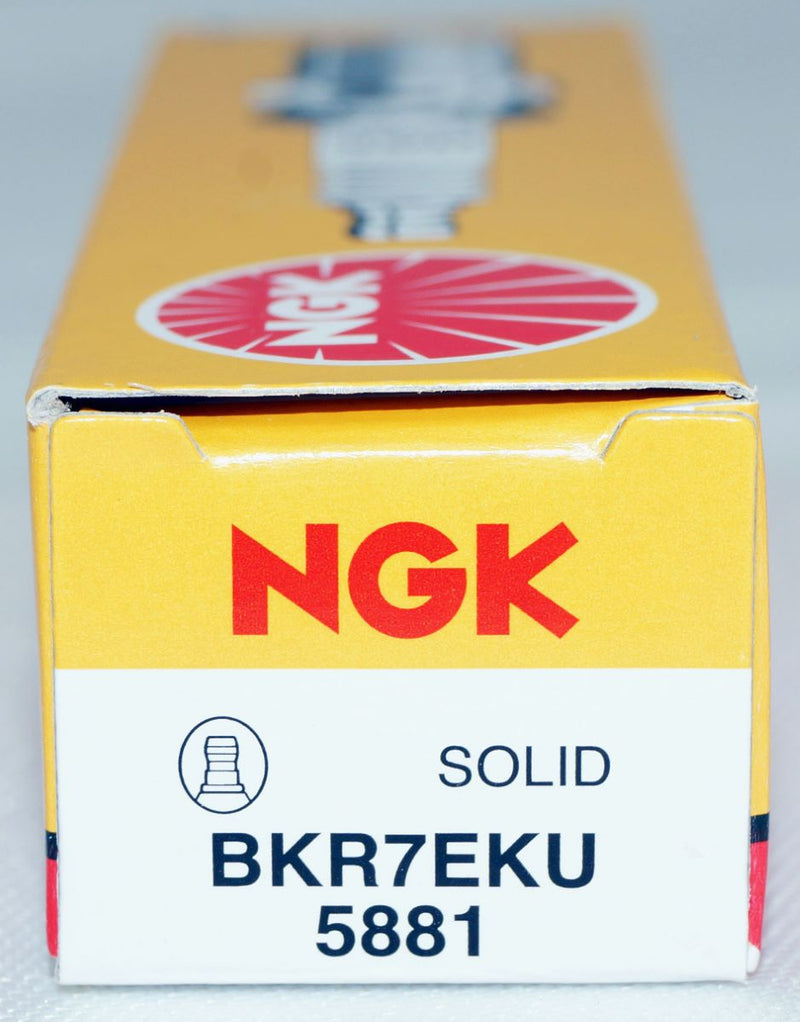

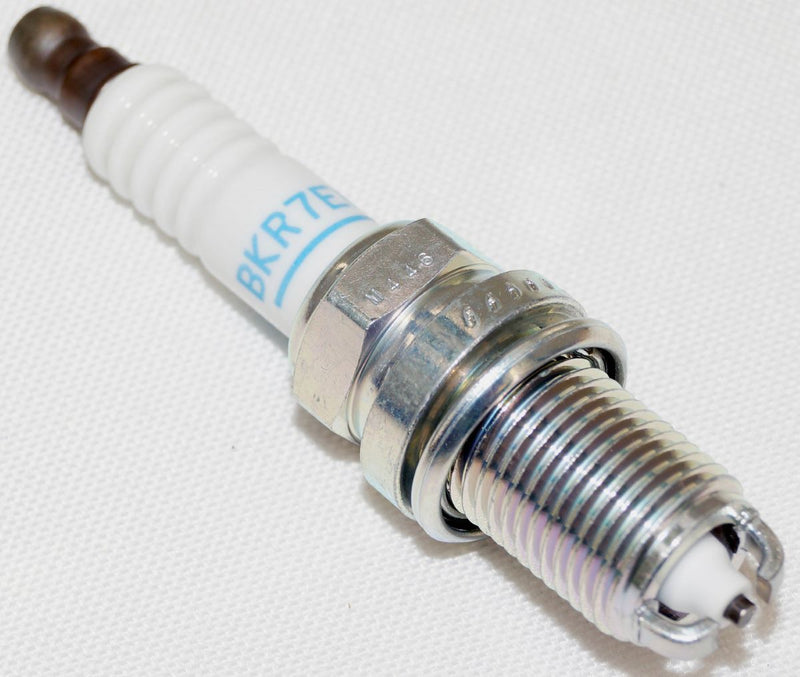

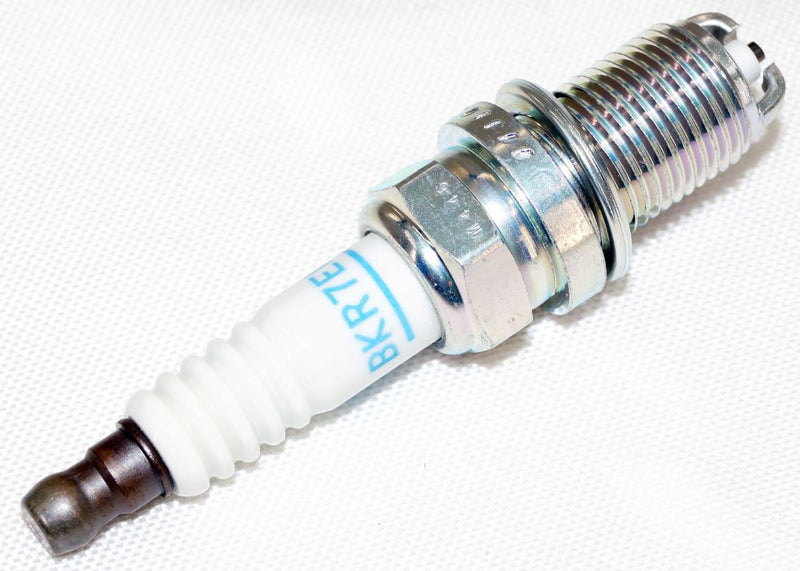

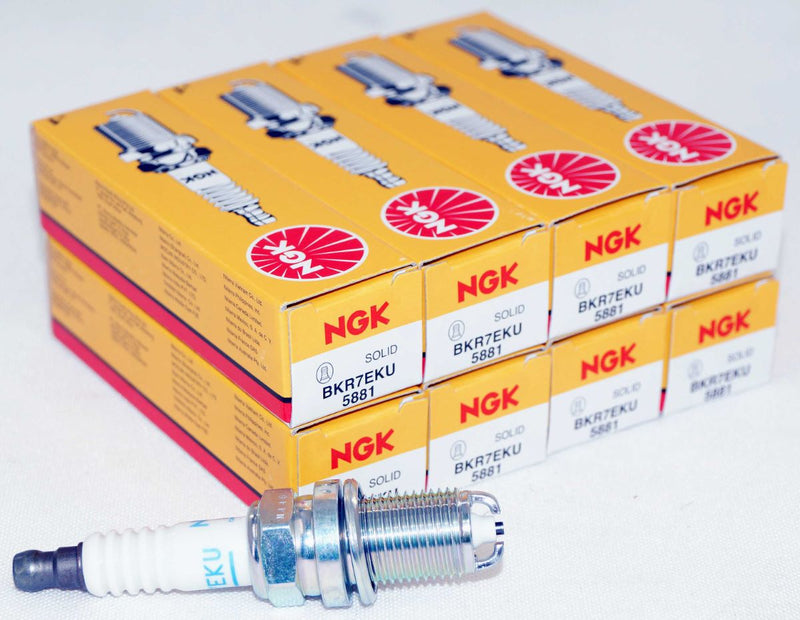

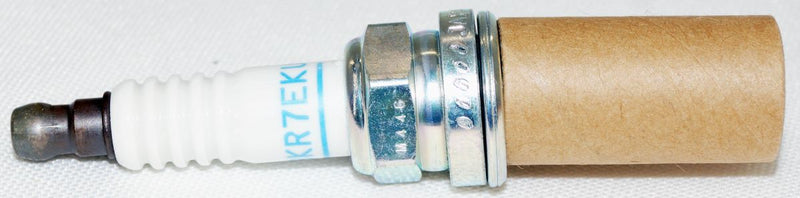

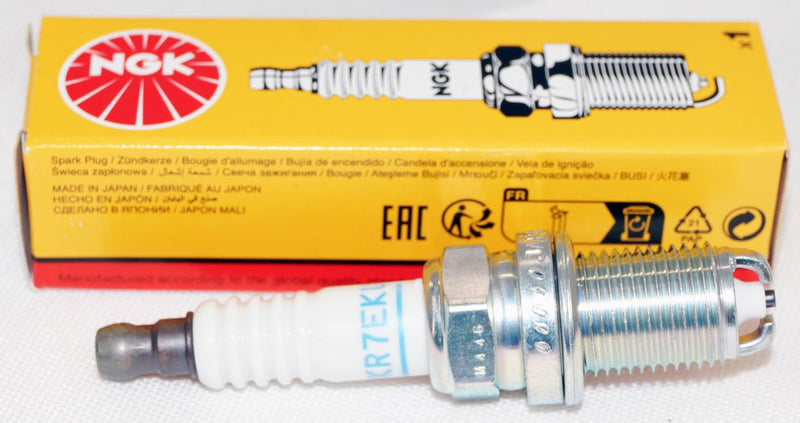

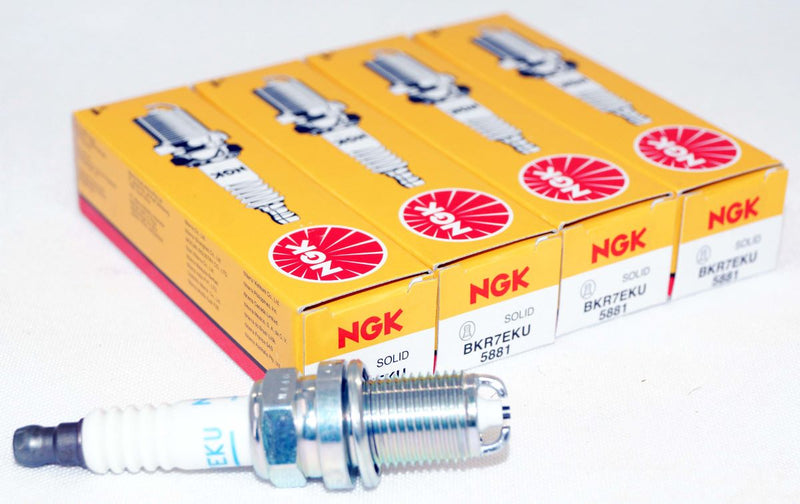

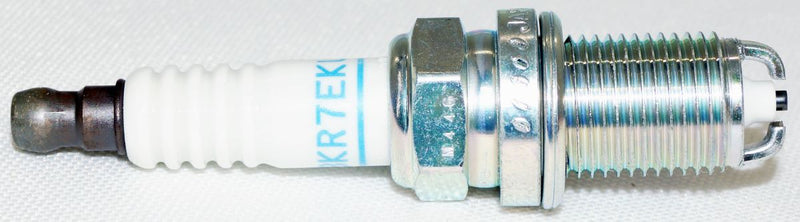

NGK 5881 Spark Plug BKR7EKU Yamaha

NGK 5881 / BKR7EKU Multi-ground electrodes improve ignition capabilities and are less sensitive to increased voltage requirements due to gap growth. Designed to specific manufacturer ignition requirements, NGK's multi-ground plugs maintain all the features of their standard plugs, including: Corrugated ribs prevent flashover. Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer. Copper core aids in heat removal. Triple seals prevent leakage.


Shell
Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 19mm (3/4")
Hex Size: 5/8" (16mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .024" (0.6mm)

Center Electrode
Material: Nickel
Type: Standard
Size: 2.5mm
Projection: Projected

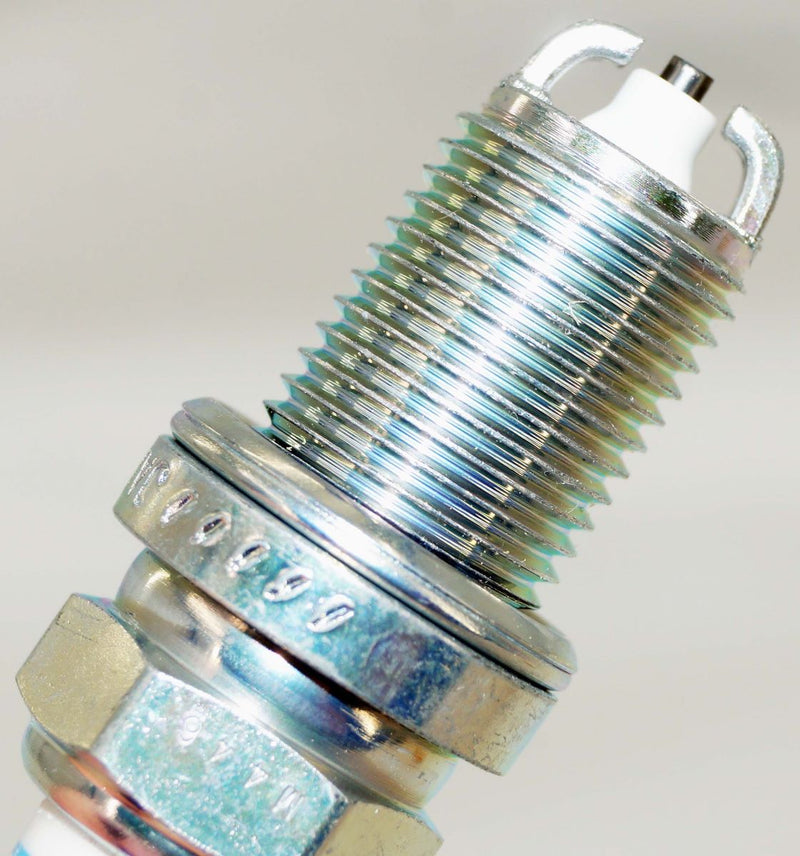

Ground Electrode
Material: Nickel
Type: Semi-Surface Discharge

Specifications
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 7
Features: Intermittent Gap
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

• Mfg Part No: 5881 BKR7EKU
• Related Part No: 5881 BKR7EKU
