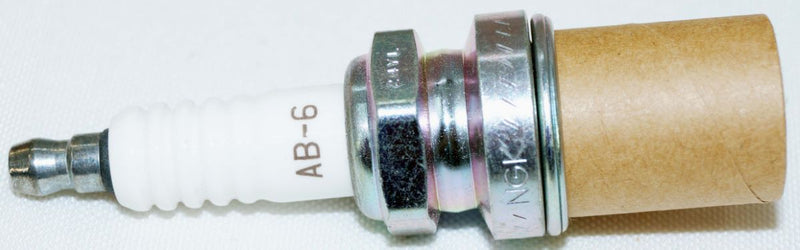

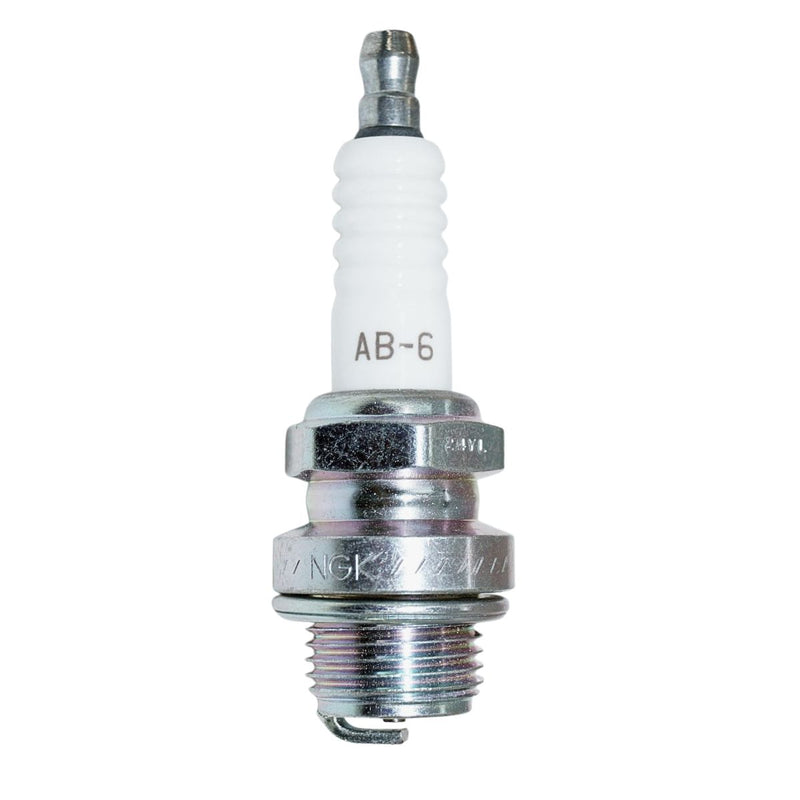

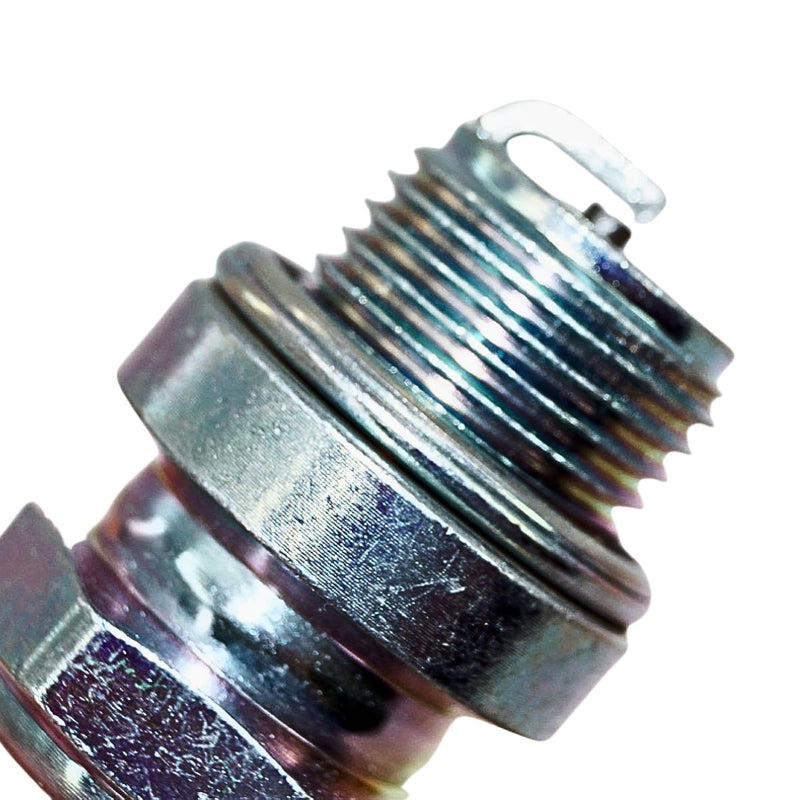

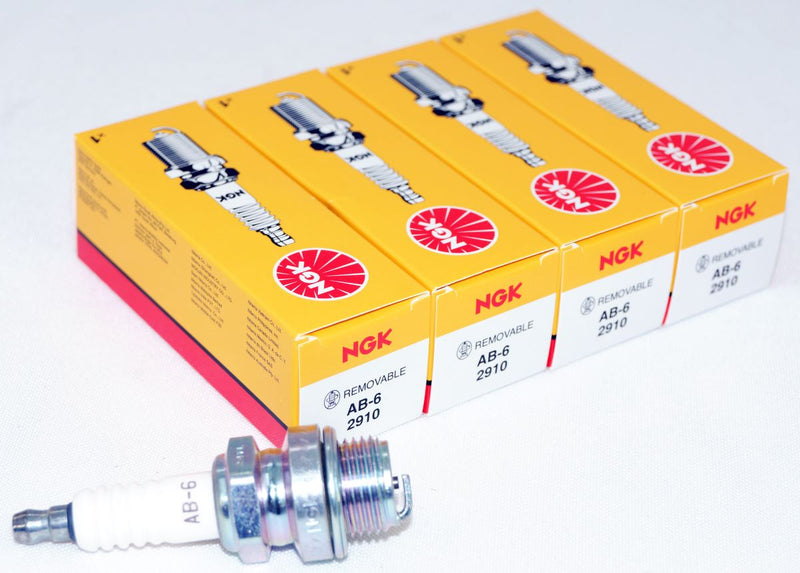

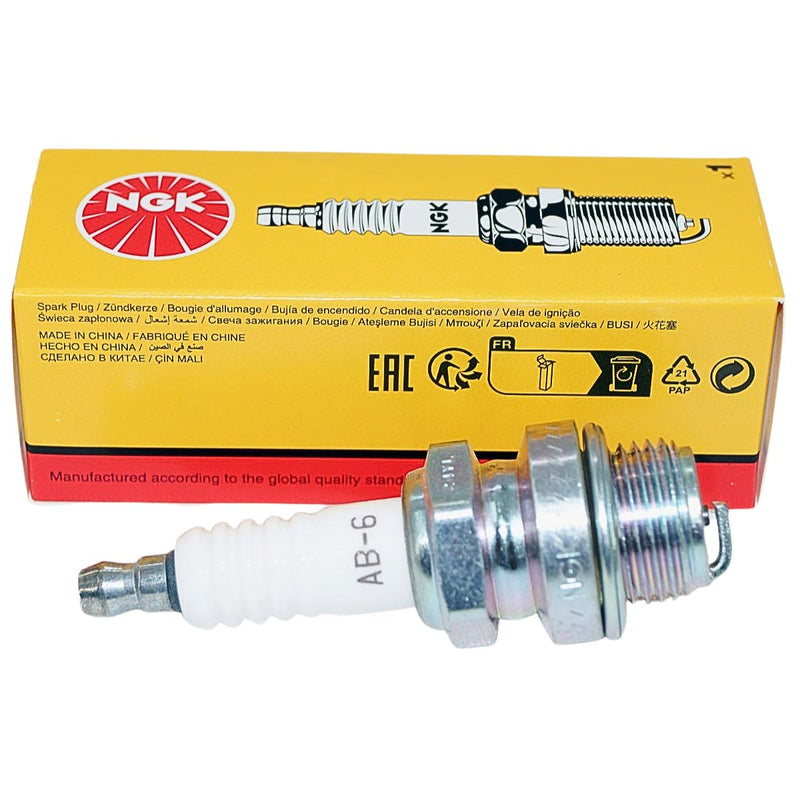

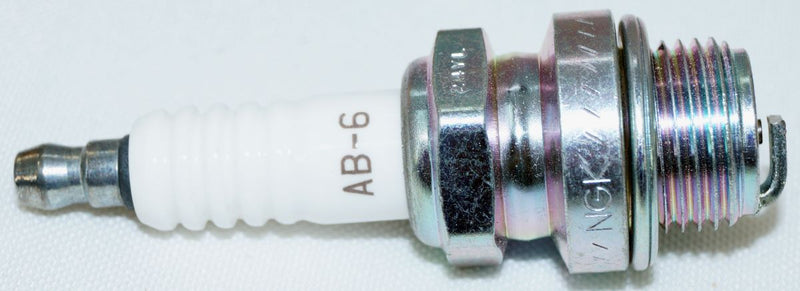

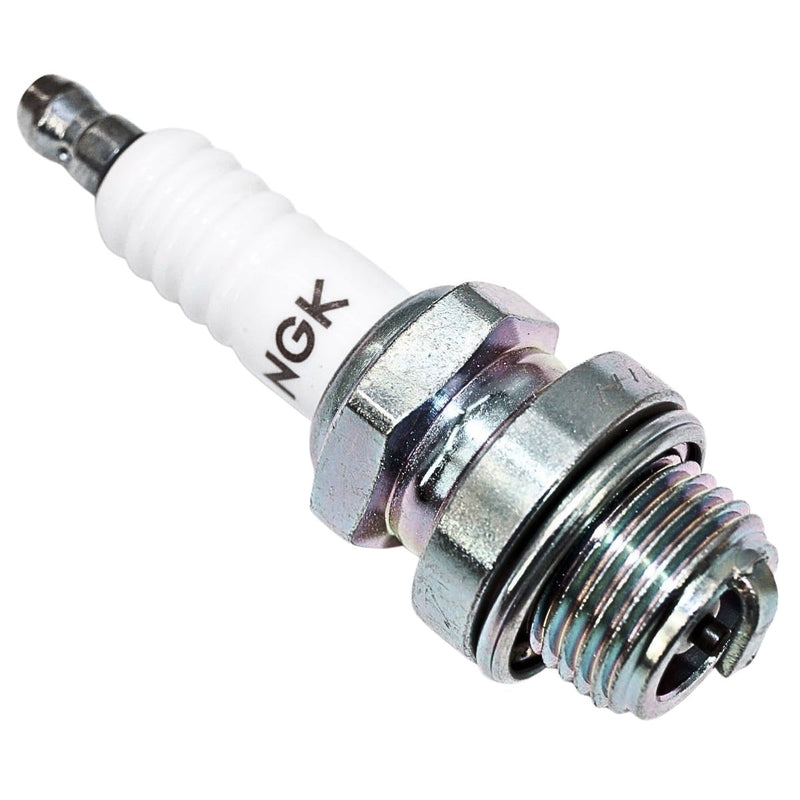

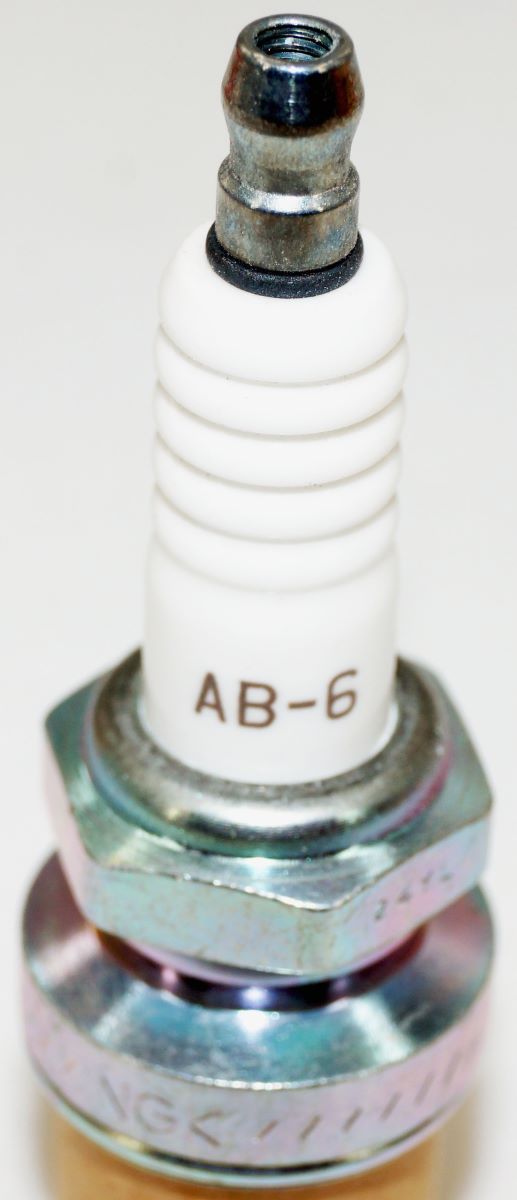

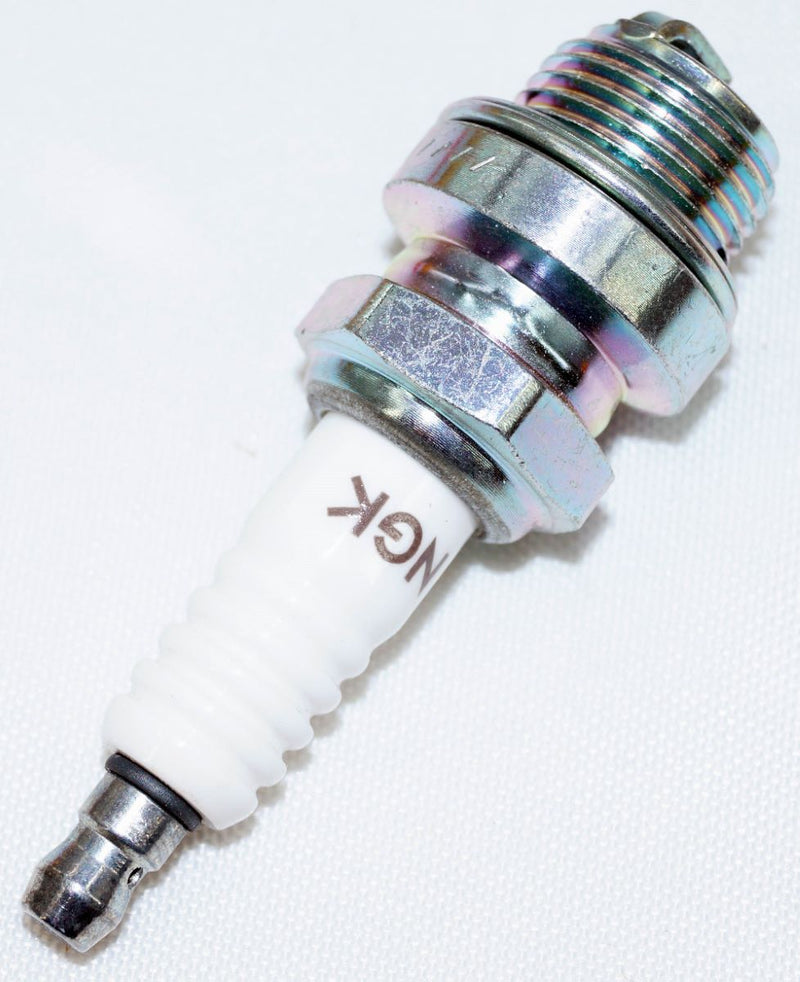

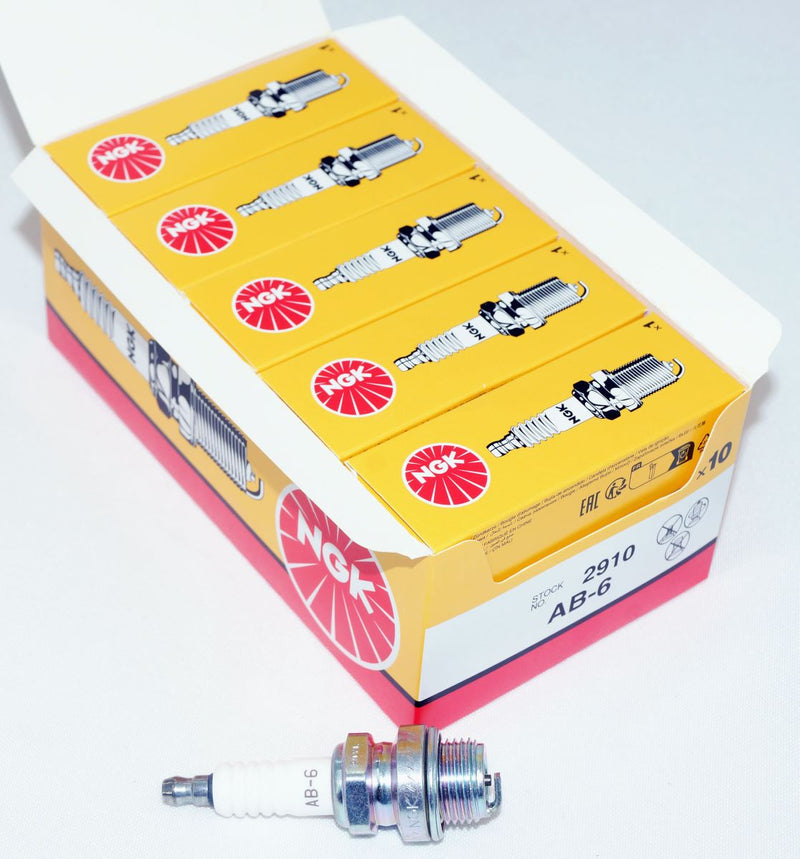

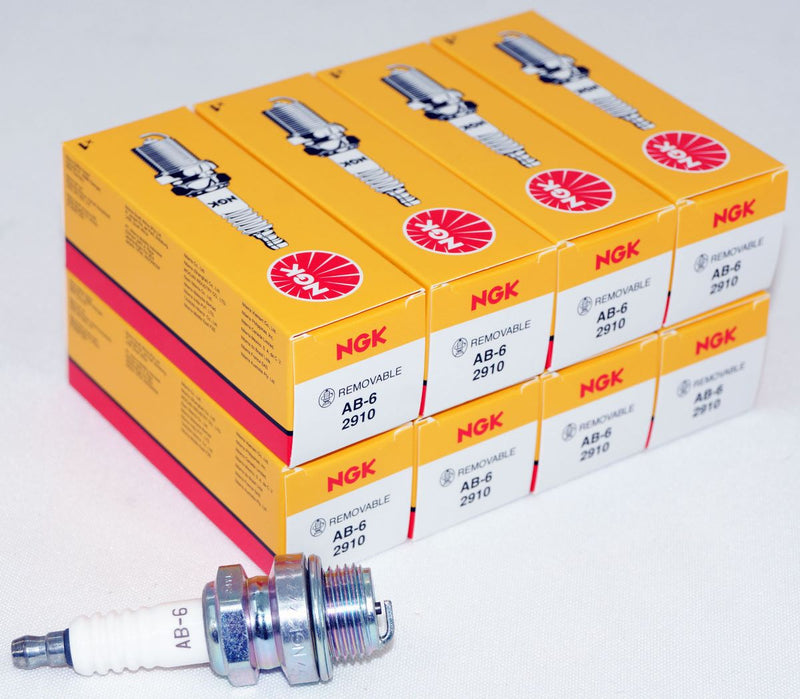

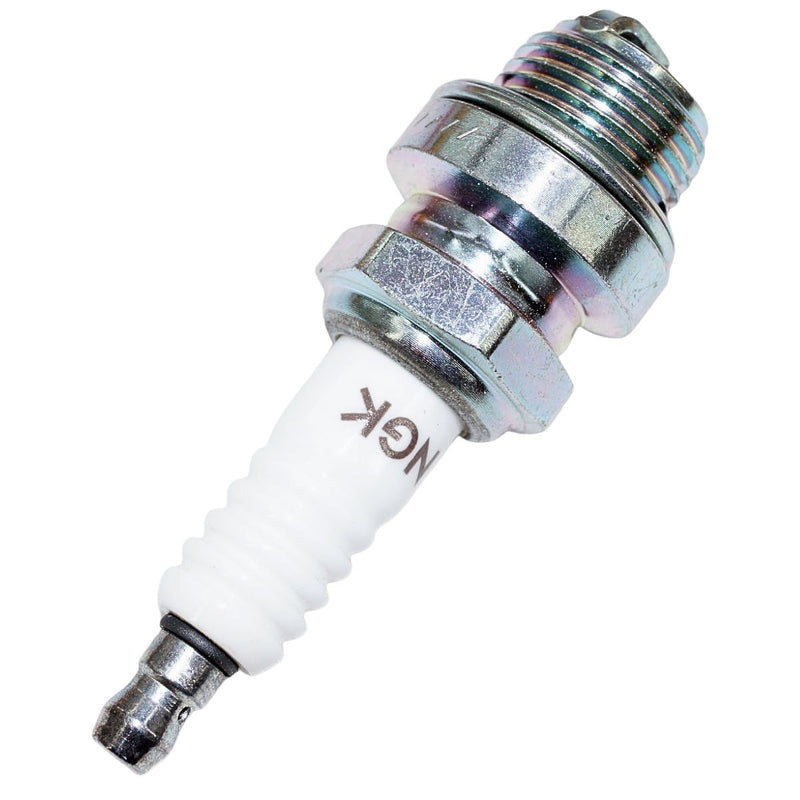

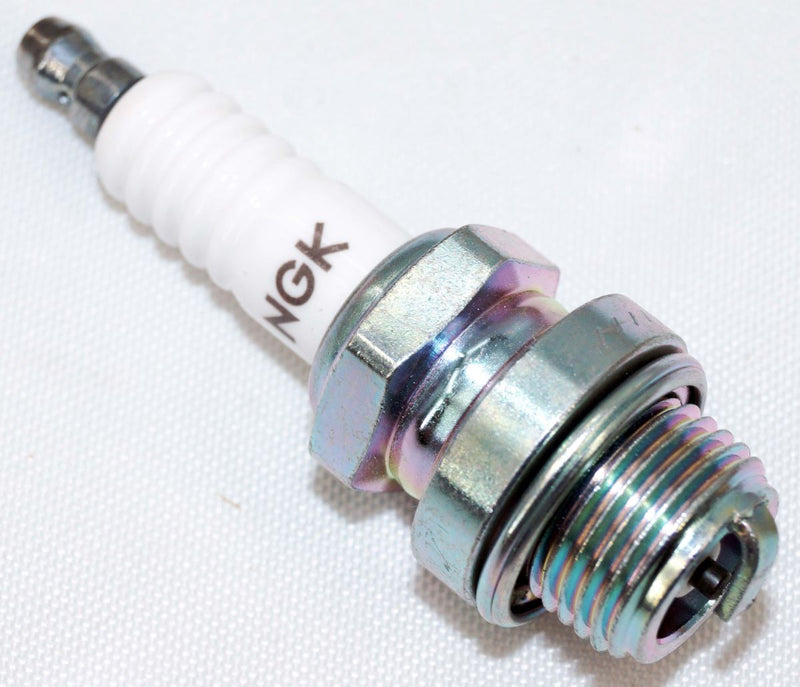

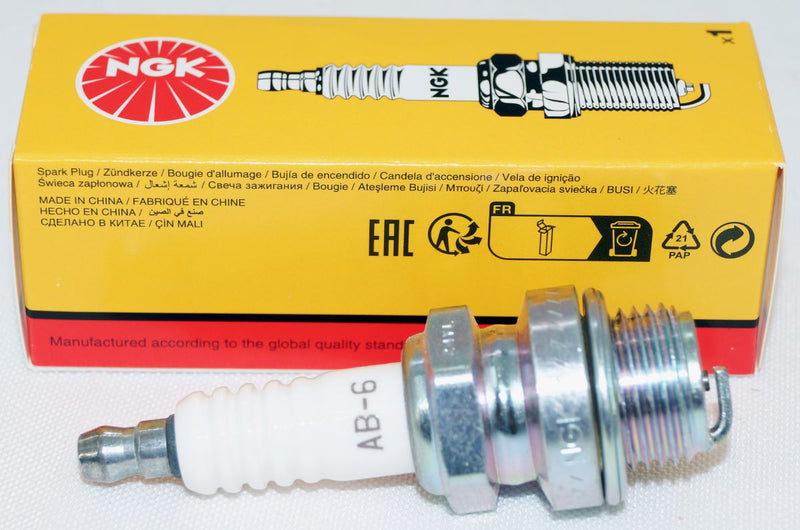

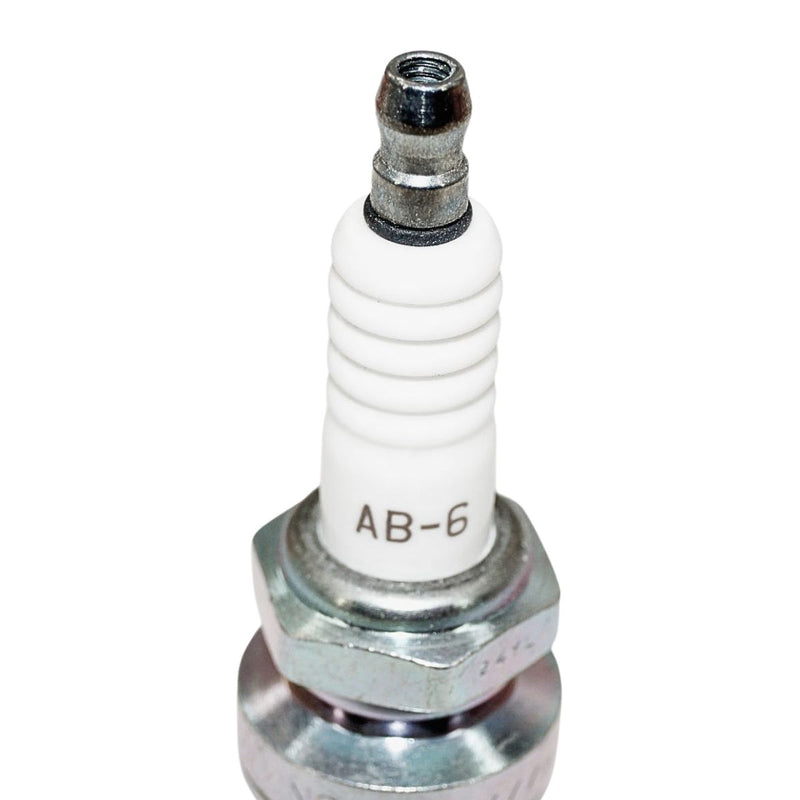

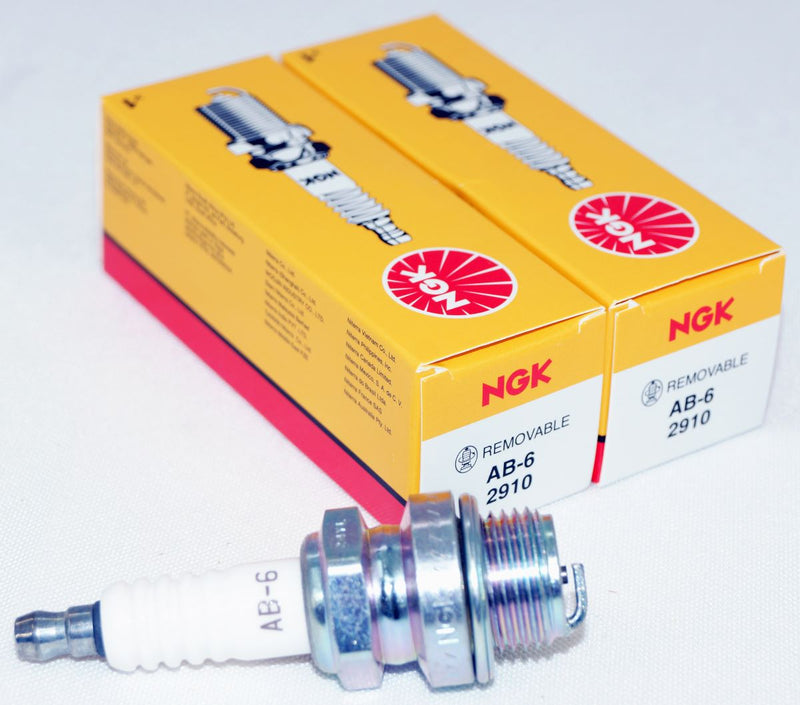

NGK 2910 AB-6 Nickel Spark Plug

NGK standard plugs are constructed for longer life and optimum performance.

Trivalent metal plating provides superior anti-corrosion and anti-seizing properties

Corrugated ribs prevent flashover

Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer

Copper core aids in heat removal

Triple seals prevent leakage

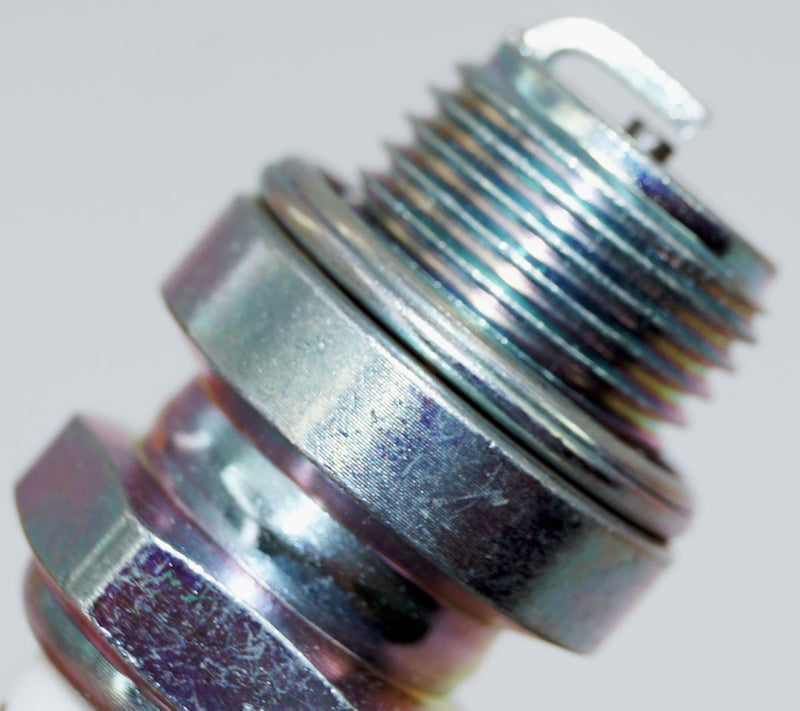

Shell
Thread Diameter: 18mm
Thread Pitch: 1.5mm
Seat Type: Gasket
Reach: 11mm (7/16")
Hex Size: 13/16" (21mm)
Terminal Type: Removable Nut
Overall Height: ISO
Gap: .028" (0.7mm)

Center Electrode
Material: Nickel
Type: Standard
Size: 2.5mm
Projection: Non-Projected

Ground Electrode
Material: Nickel
Type: Standard

Specifications
Resistor: No
Resistor Value: 1K Ohm
Heat Range: 6
Torque Specs: Cast Iron: 25.3-32.5 lb. ft. Aluminum: 25.3-28.9 lb. ft.

• Mfg Part No: 2910 AB6
• Related Part No: 2910 AB6
