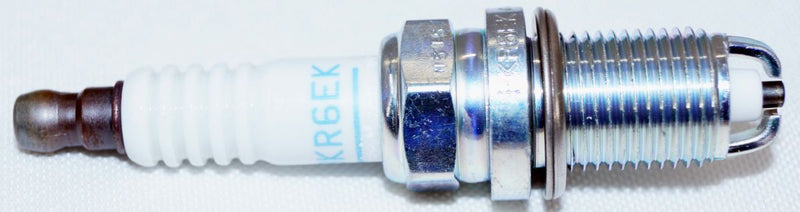

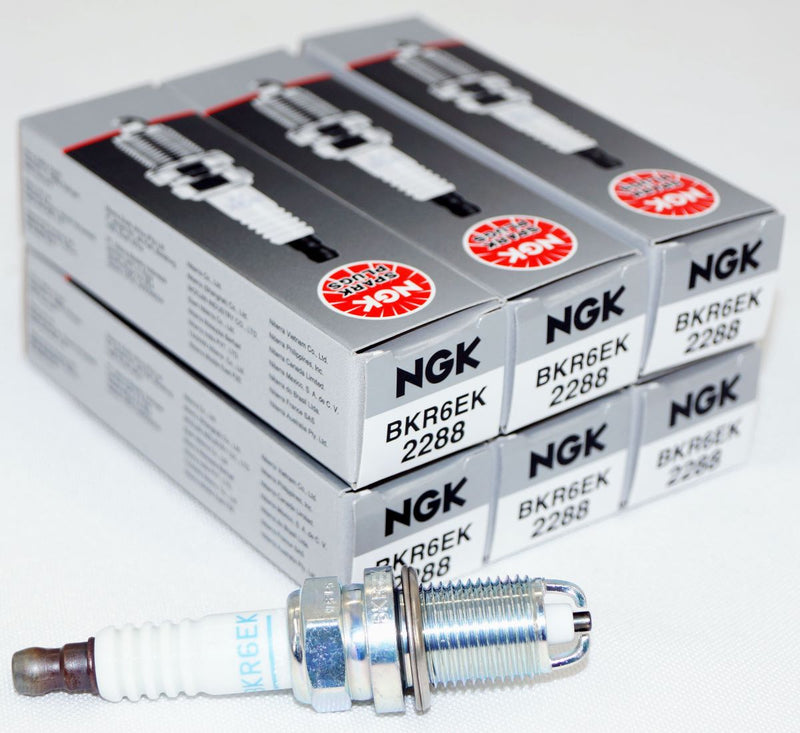

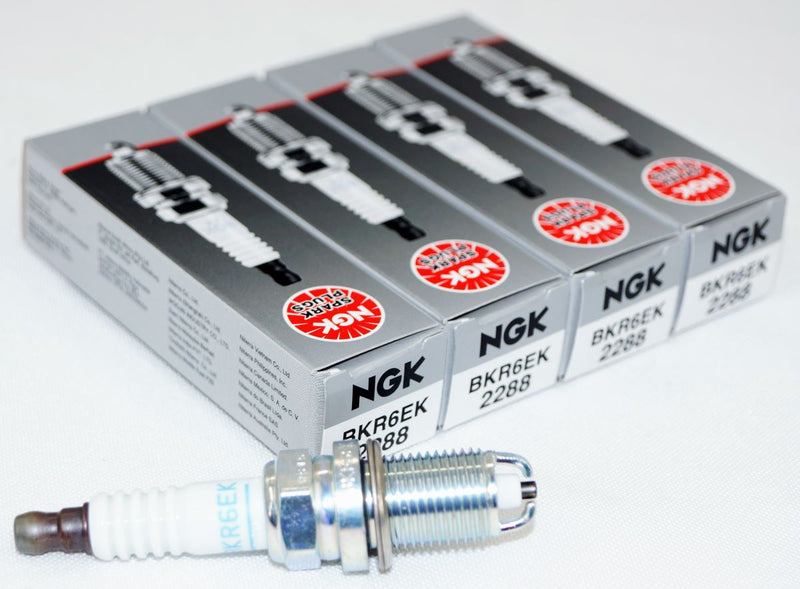

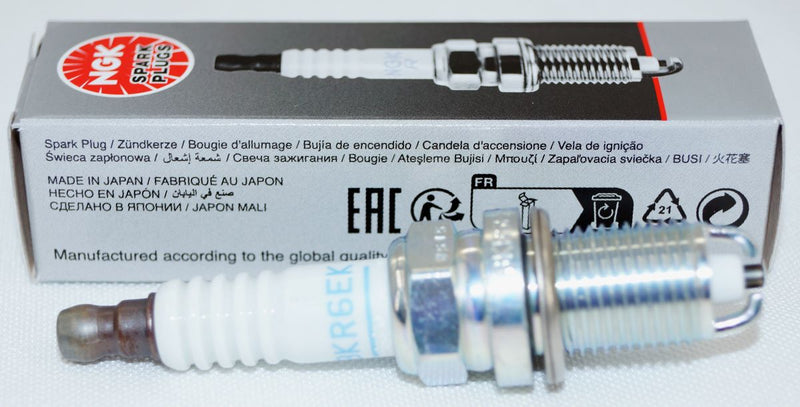

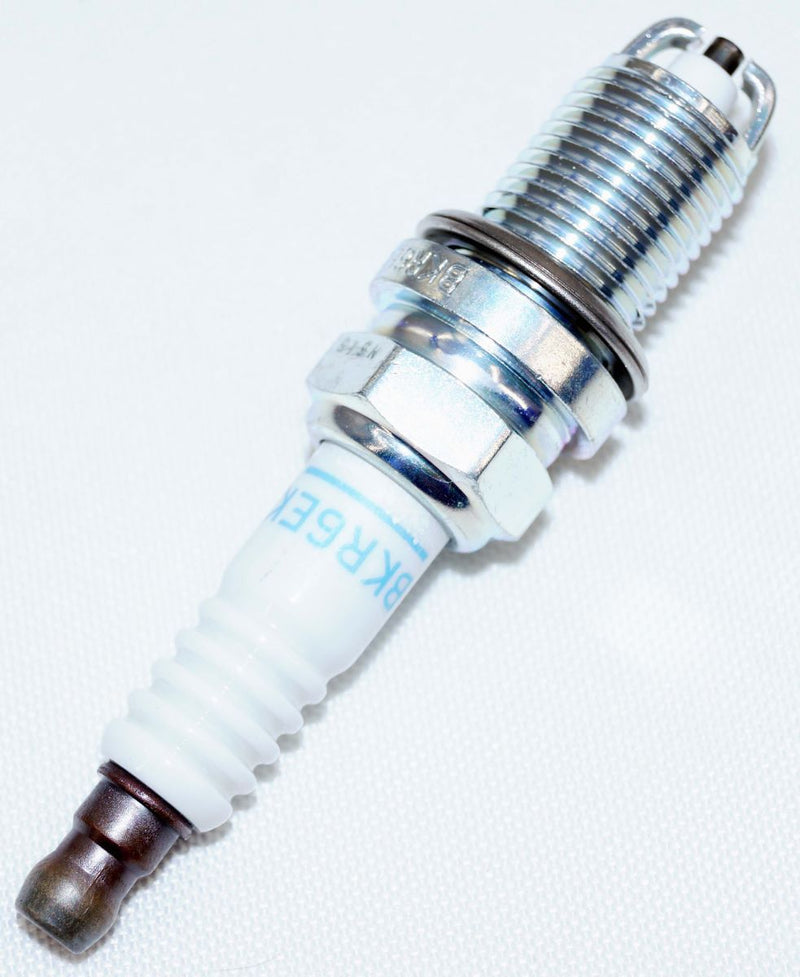

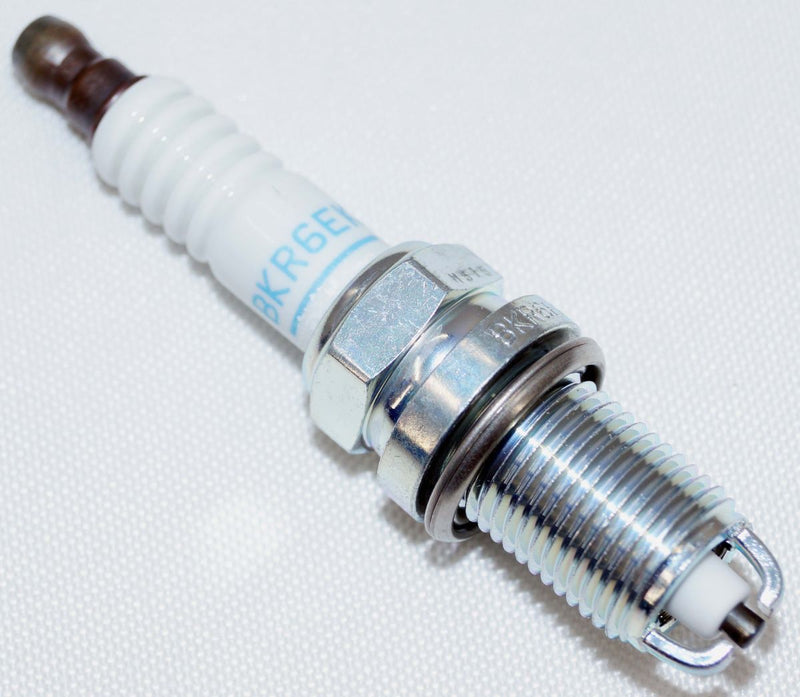

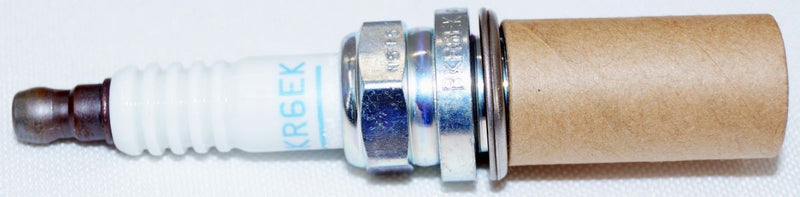

NGK 2288 BKR6EK Multi-Ground Spark Plug

NGK 2288 BKR6EK Multi-Ground Spark Plug

Multi-ground electrodes improve ignition capabilities and are less sensitive to increased voltage requirements due to gap growth. Designed to specific manufacturer ignition requirements, NGK's multi-ground plugs maintain all the features of their standard plugs, including:

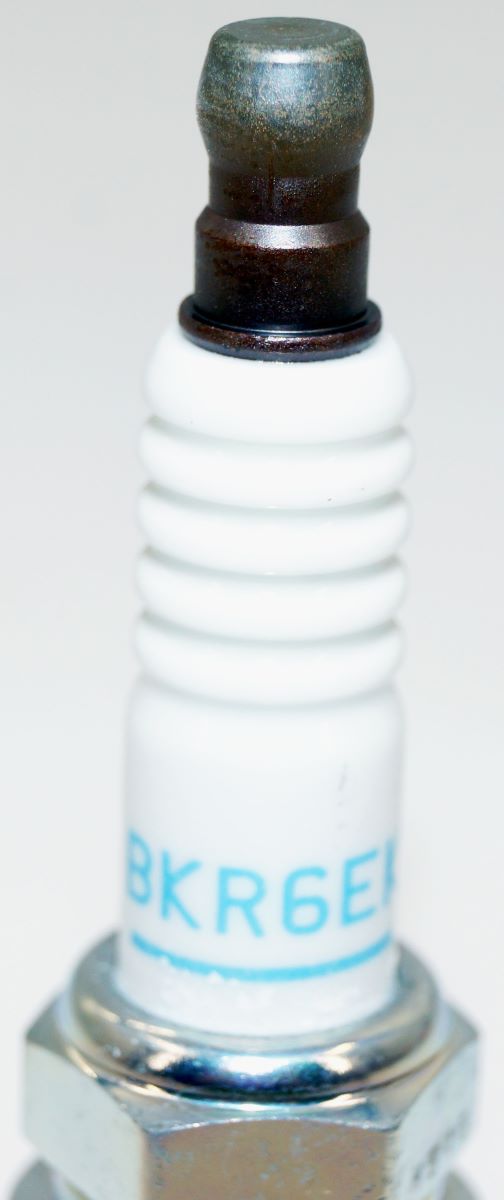

Corrugated Ribs to Prevent Flashover

Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer

Copper core to aid in heat removal

Triple seals to prevent leakage

Shell

Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 19mm (3/4")
Hex Size: 5/8" (16mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .035" (0.9mm)

Center Electrode

Material: Nickel
Type: Standard
Size: 2.5mm
Projection: Projected

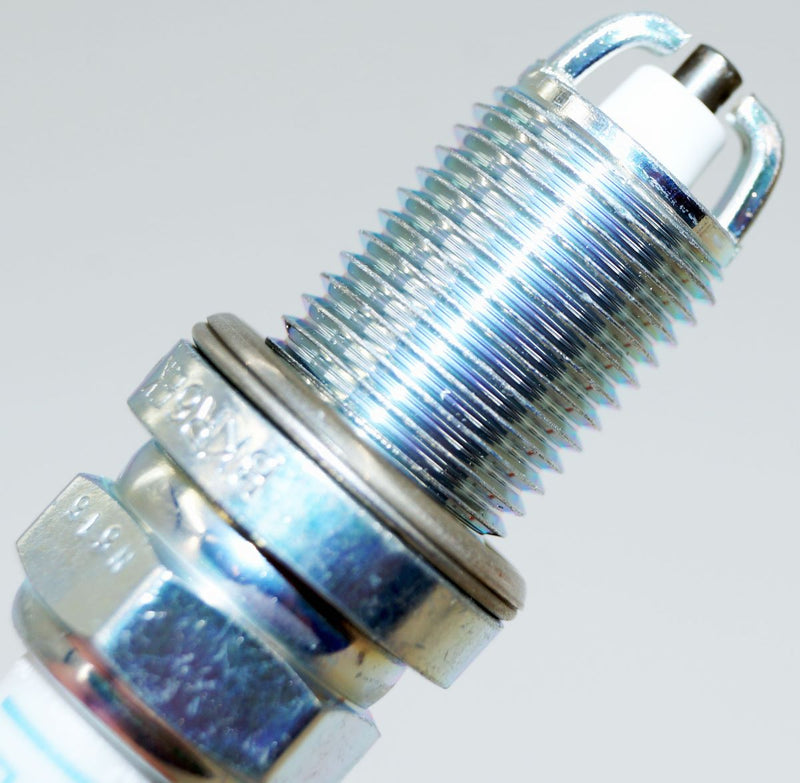

Ground Electrode

Material: Nickel
Type: Multi-Ground
Quantity: 2

Specifications

Resistor: Yes
Resistor Value: 1K Ohm
Heat Range: 6
Features: Intermittent Gap
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

• Mfg Part No: 2288 BKR6EK
• Related Part No: 2288 BKR6EK
