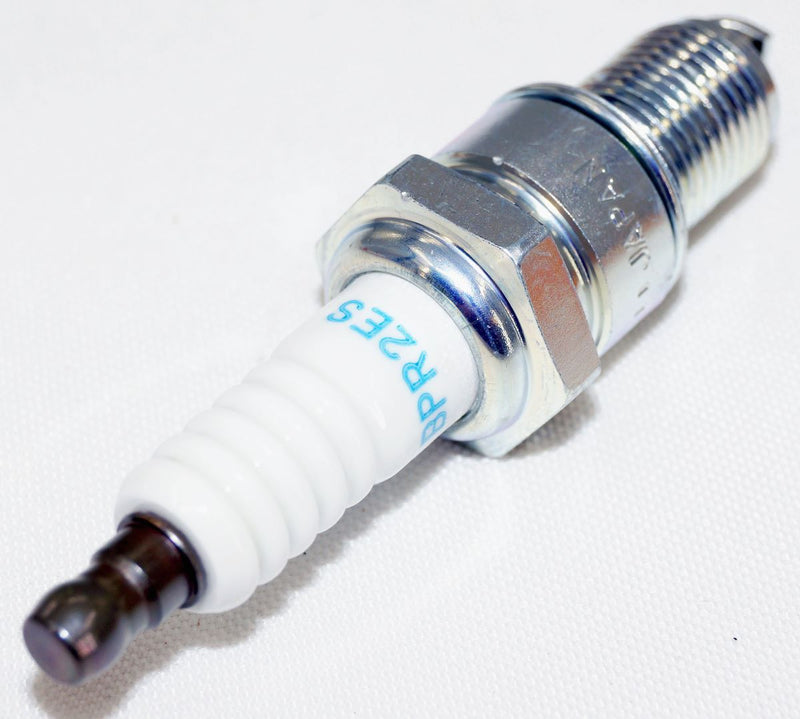

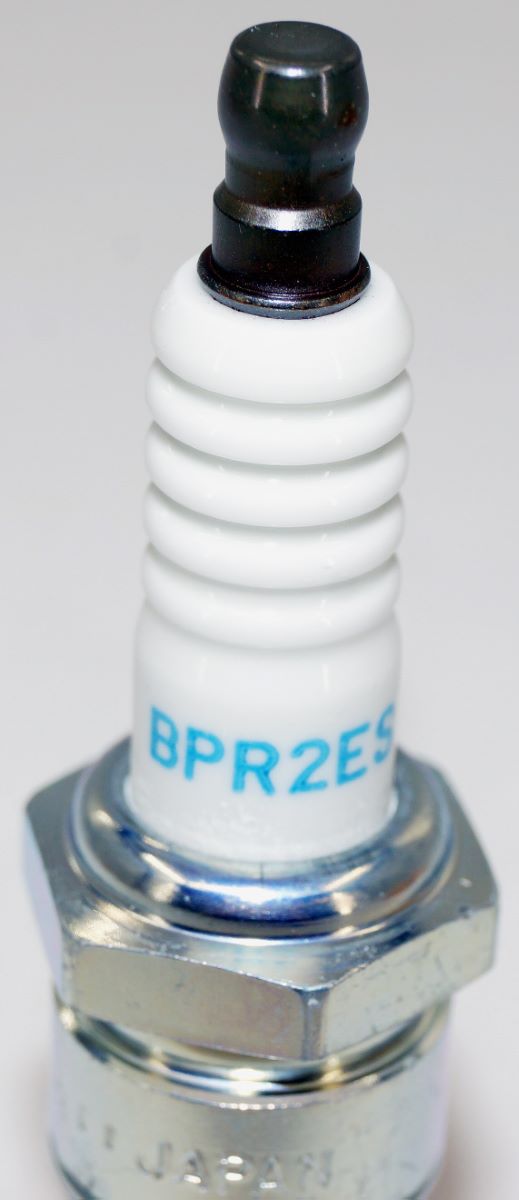

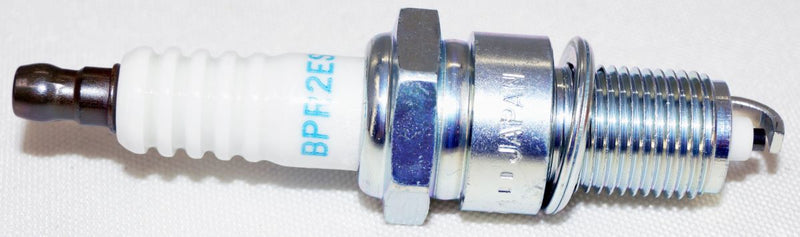

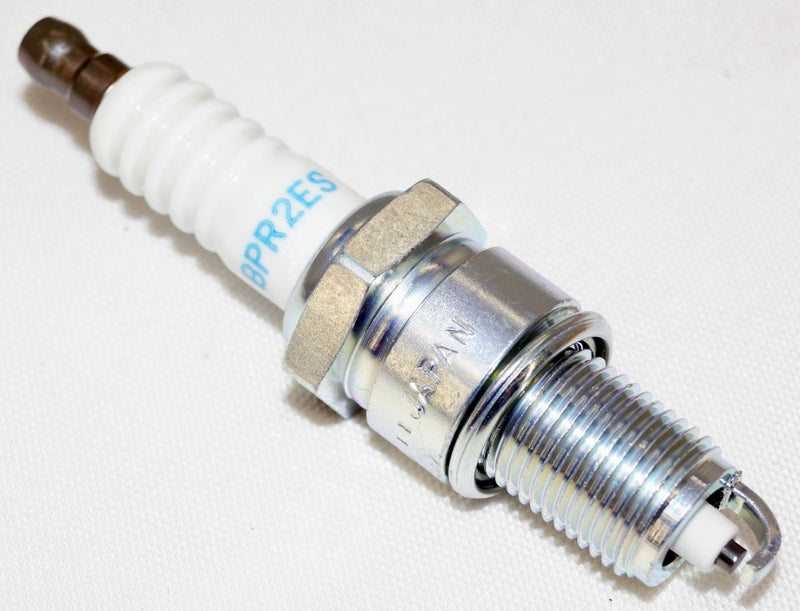

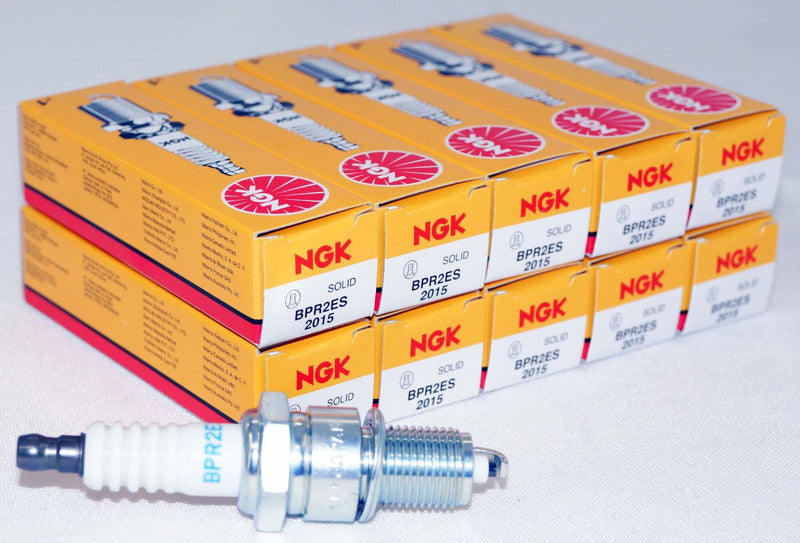

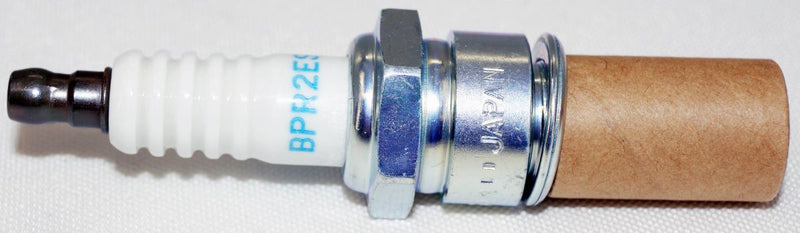

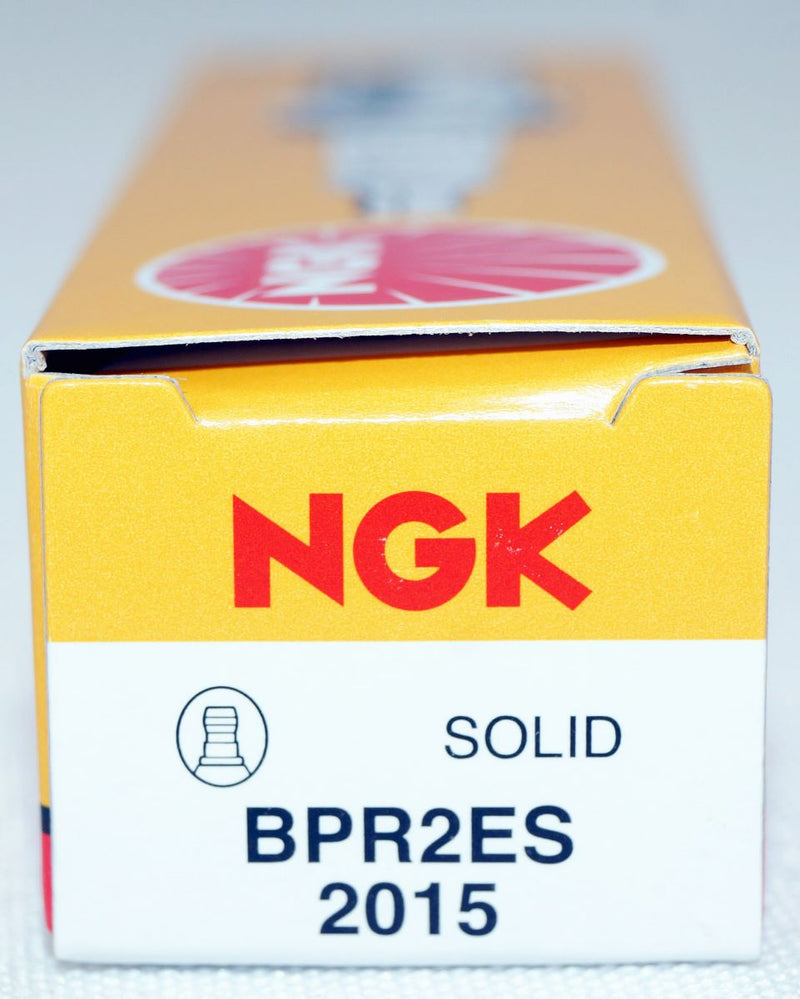

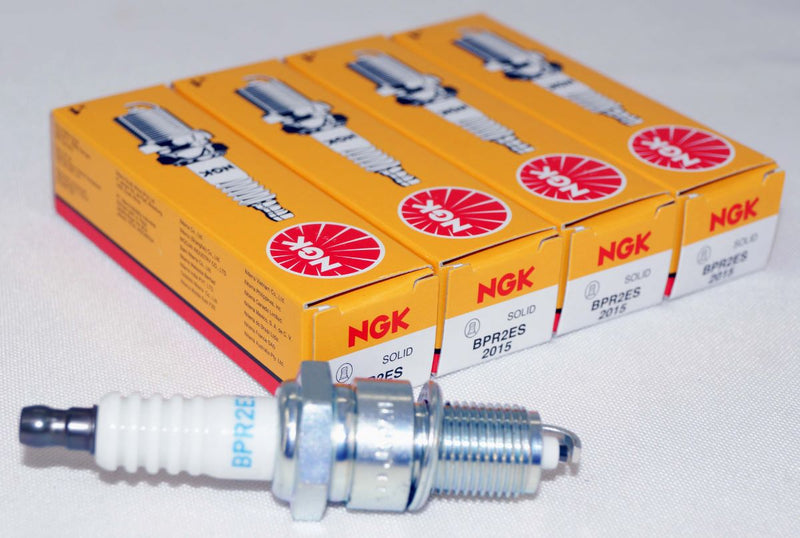

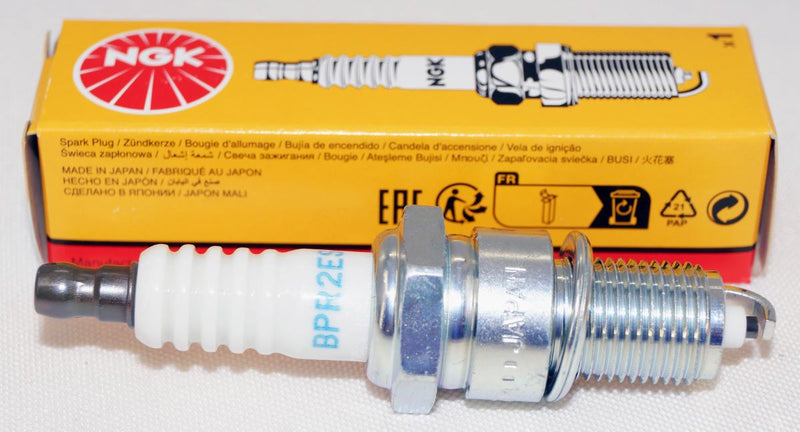

NGK 2015 Spark Plug Solid Tip BPR2ES John Deere Kawasaki Yamaha

2015 / BPR2ES - NGK standard plugs are constructed for longer life and optimum performance.

Trivalent metal plating provides superior anti-corrosion and anti-seizing properties

Corrugated ribs prevent flashover

Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer

Copper core aids in heat removal

Triple seals prevent leakage

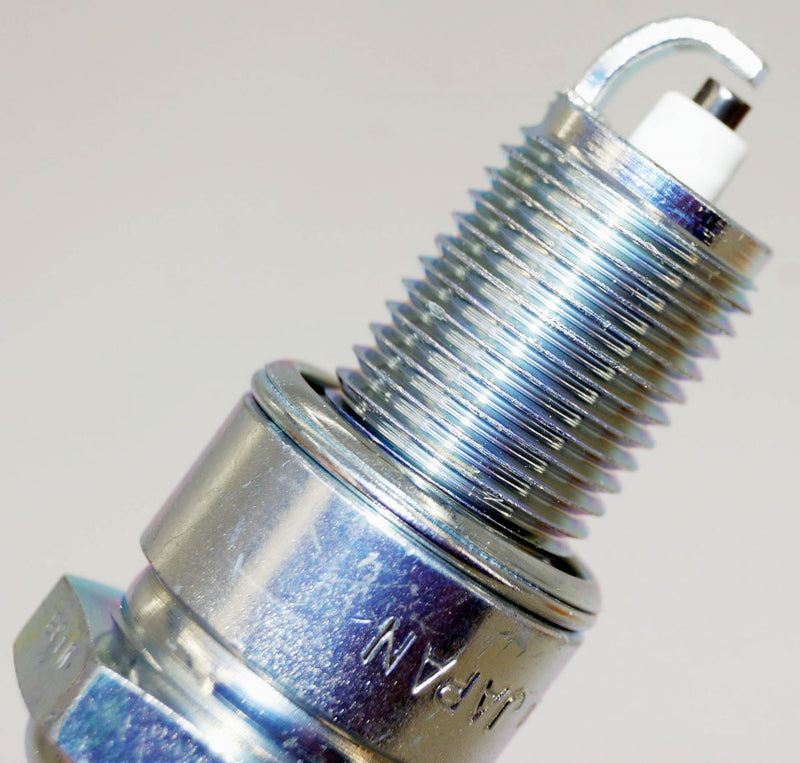

Shell
Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 19mm (3/4")
Hex Size: 13/16" (21mm)
Terminal Type: Solid
Overall Height: JIS
Gap: .031" (0.8mm)

Center Electrode
Material: Nickel
Type: Standard
Size: 2.5mm
Projection: Projected

Ground Electrode
Material: Nickel
Type: Standard

Specifications
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 2
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

• Mfg Part No: 2015 BPR2ES-SOLID
• Related Part No: BPR2ES 2015 BPR2ES-SOLID
