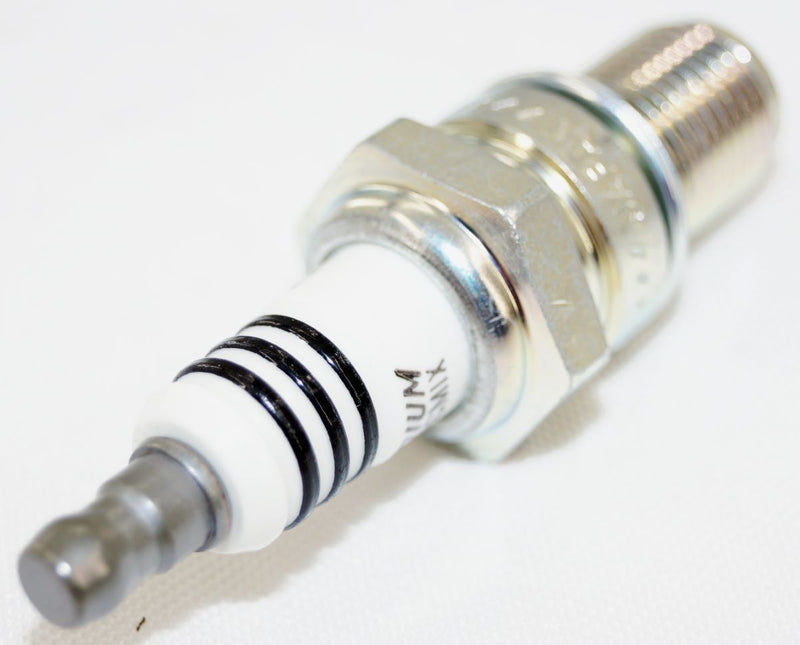

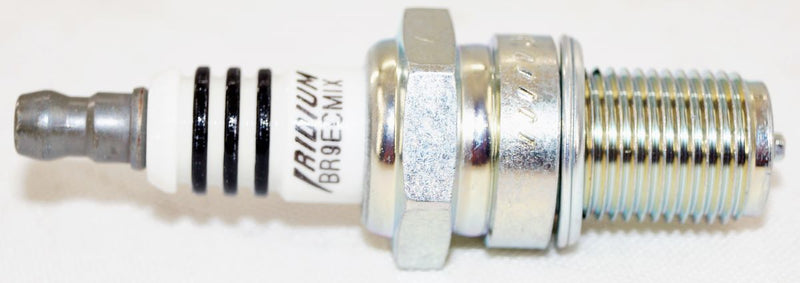

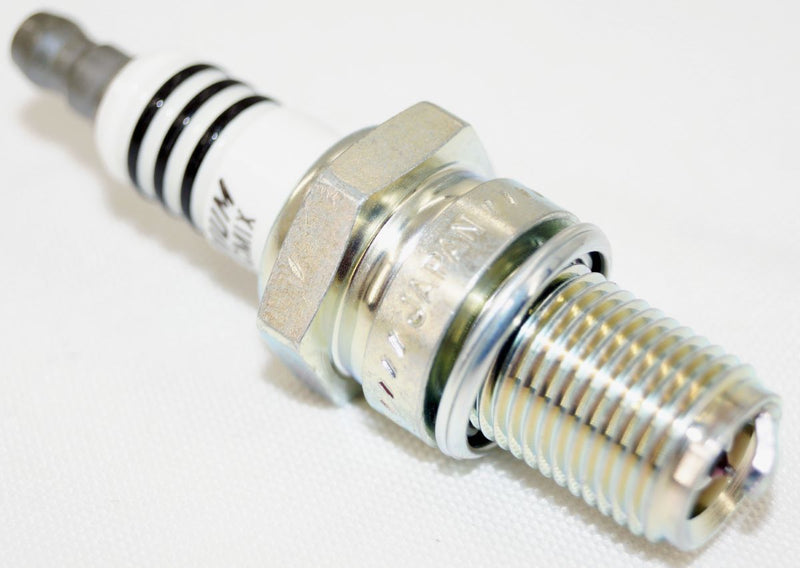

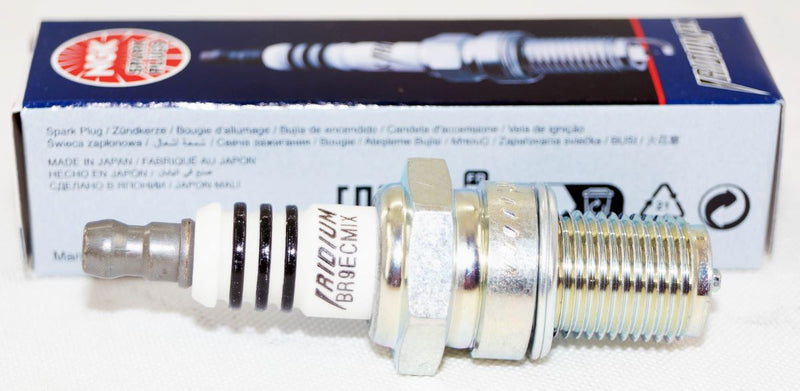

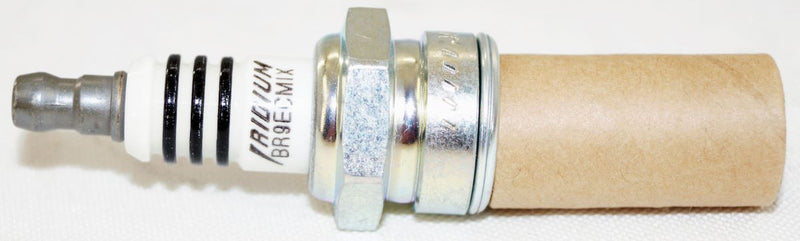

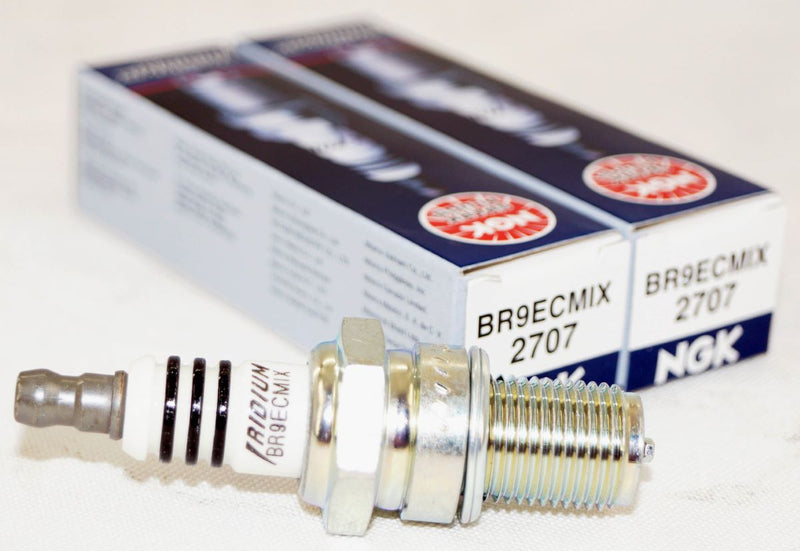

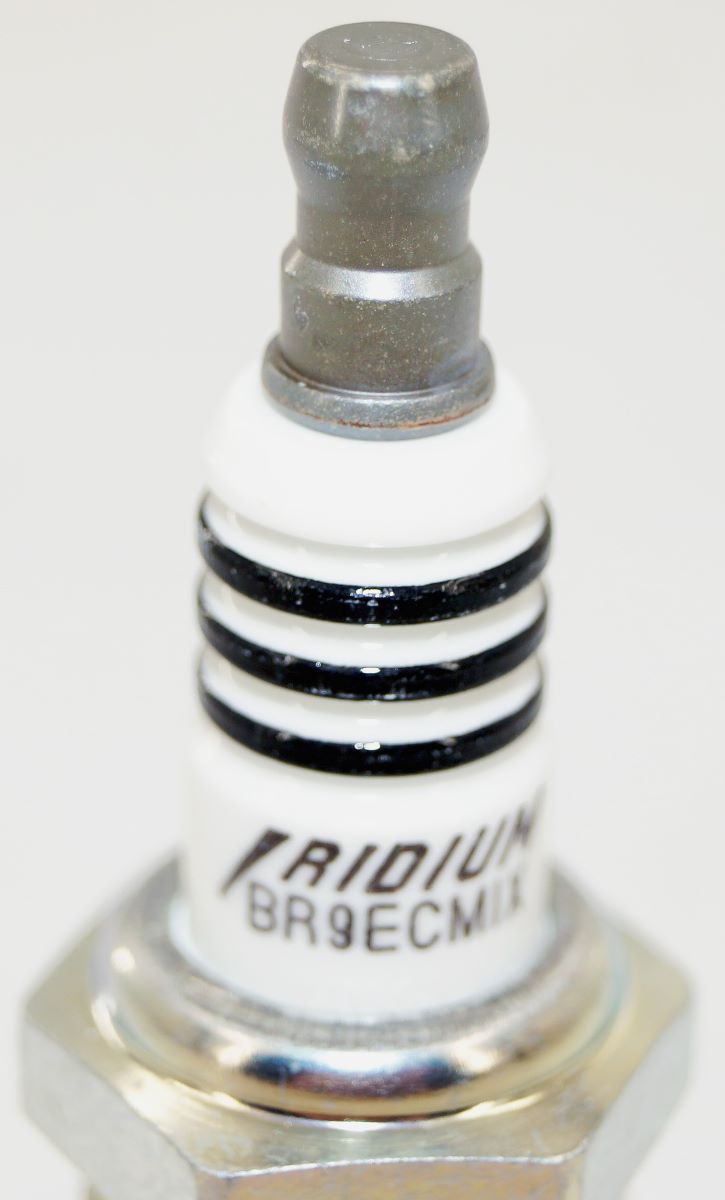

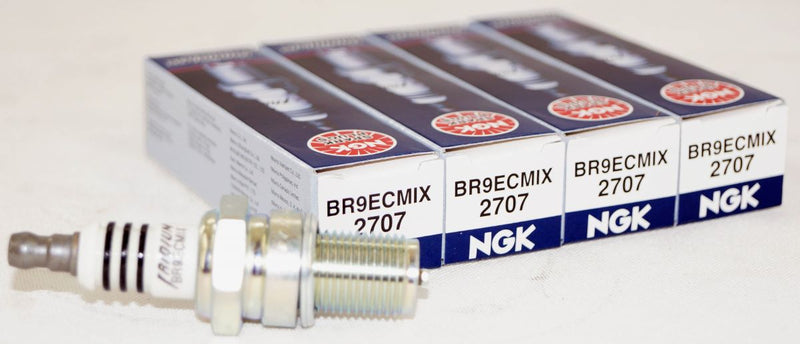

NGK 2707 Iridium Spark Plug BR9ECMIX

NGK 2707 Spark Plug BR9ECMIX Iridium Series plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines. Trivalent metal plating provides superior anti-corrosion and anti-seizing properties. Corrugated ribs prevent flashover. Pure alumina silicate ceramic insulator provides superior strength and better heat transfer. Copper core aids in heat removal. Triple seals prevent leakage

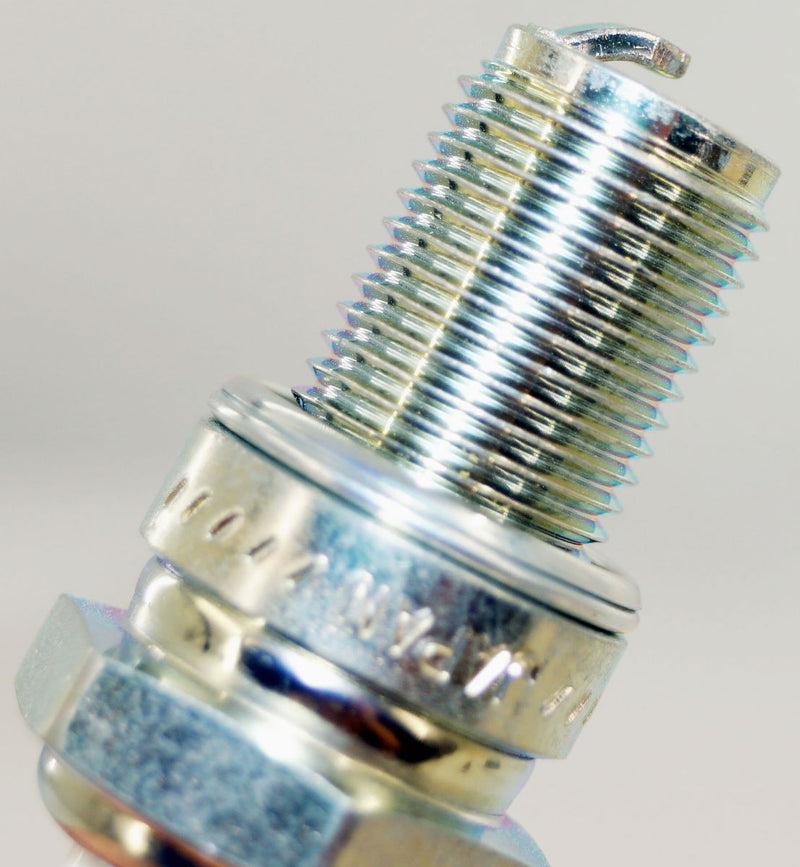

Shell
Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 19mm (3/4")
Hex Size: 13/16" (21mm)
Terminal Type: Solid
Overall Height: Bantam
Gap: .031" (0.8mm)

Center Electrode
Material: Iridium
Type: Fine Wire
Size: 0.6mm
Projection: Non-Projected

Ground Electrode
Material: Nickel
Type: Low-Angled
Shape: Taper Cut

Specifications
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 9
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

• Mfg Part No: 2707 BR9ECMIX
• Related Part No: 2707 BR9ECMIX
