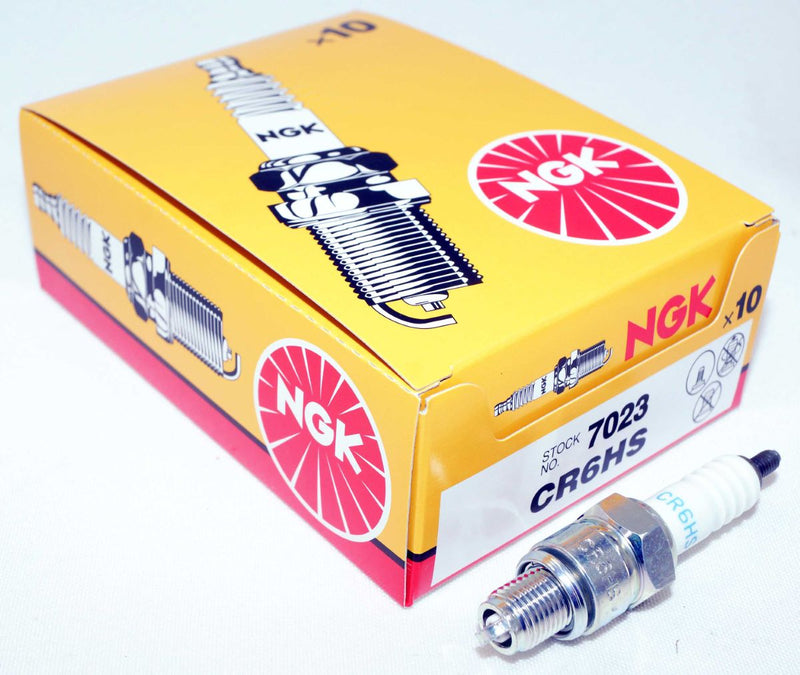

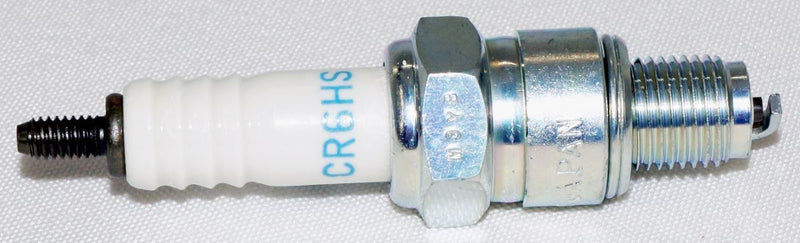

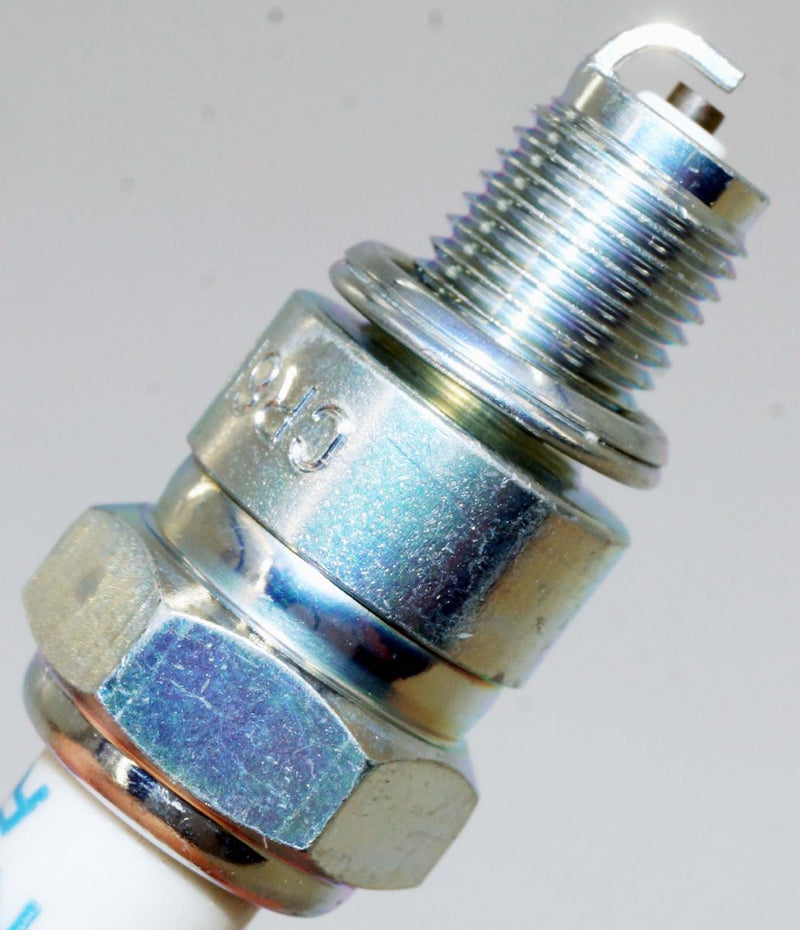

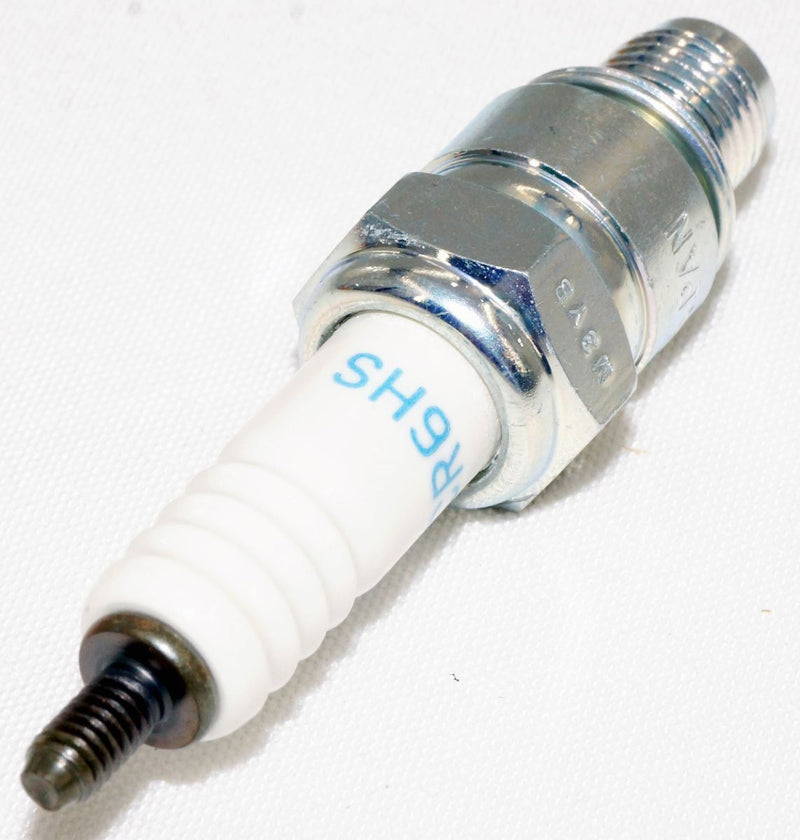

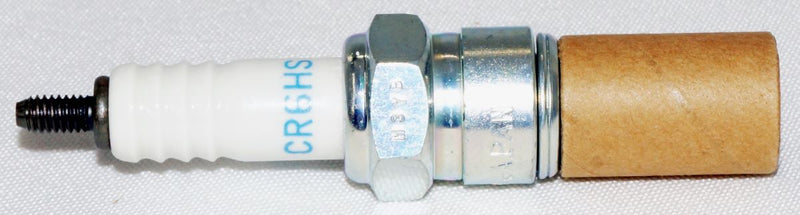

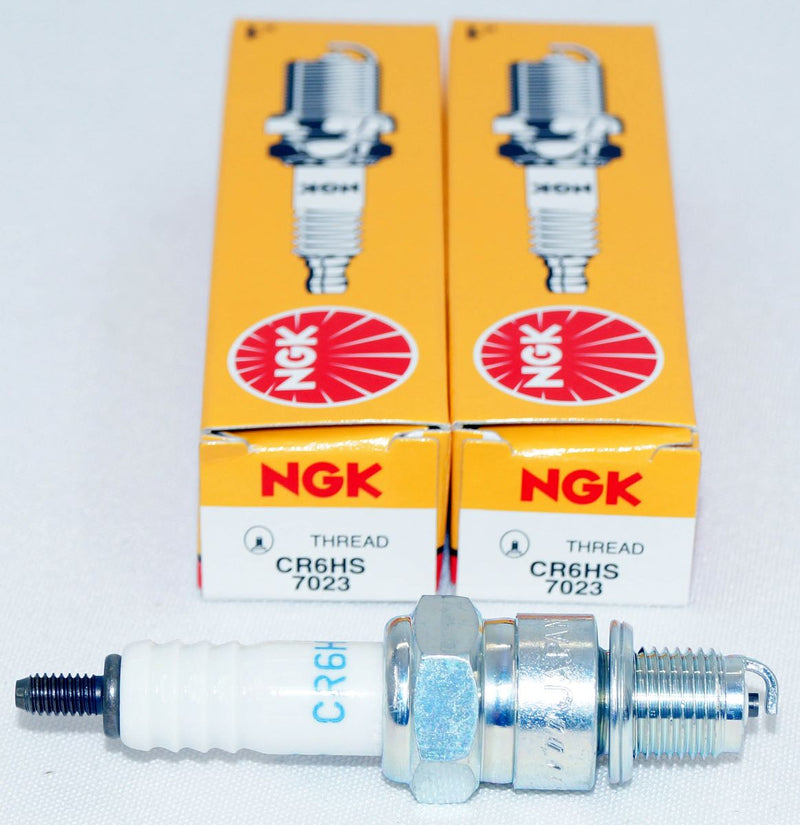

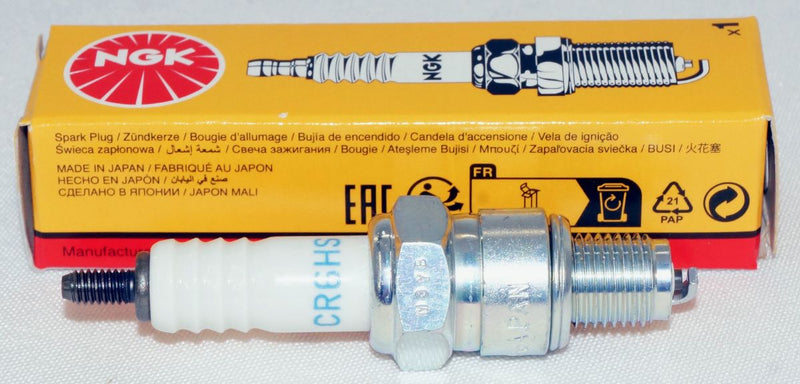

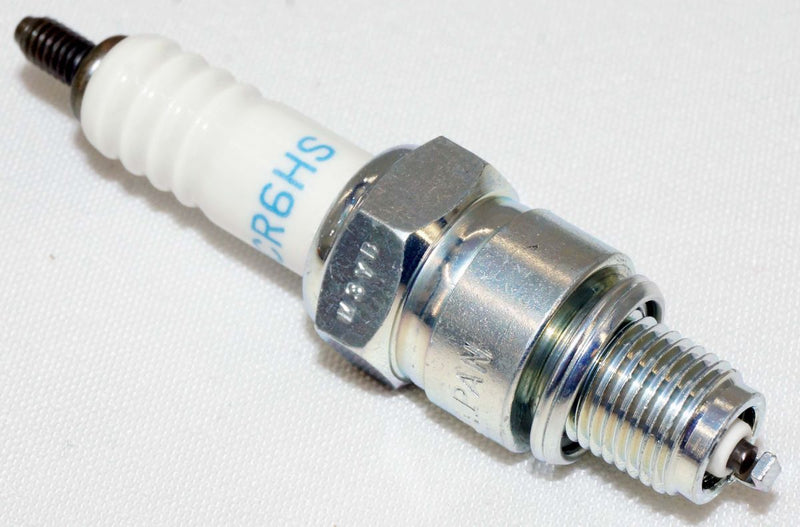

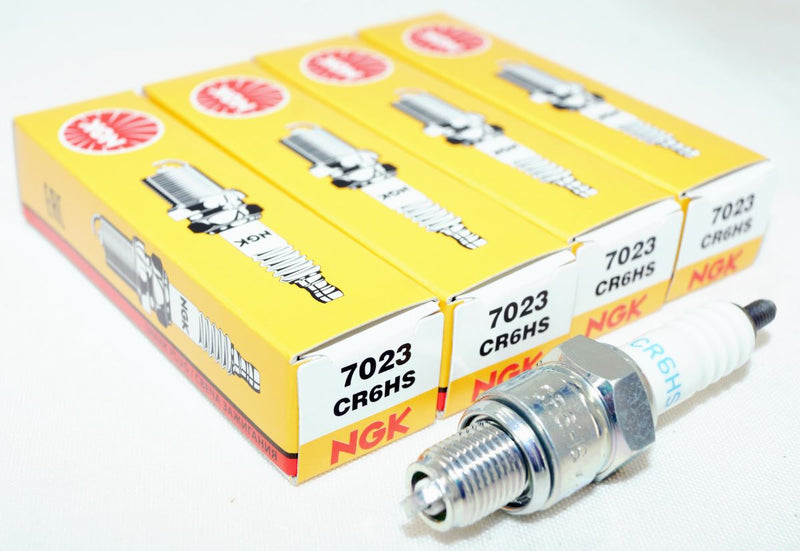

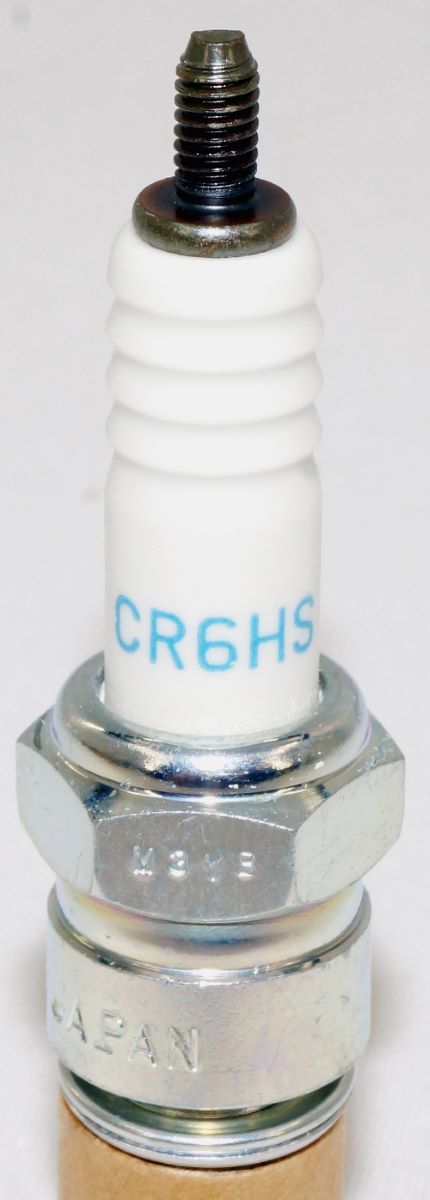

NGK 7023 Nickel Spark Plug CR6HS

NGK 7023 CR6HS Nickel Spark Plug

NGK standard plugs are constructed for longer life and optimum performance.
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Copper core aids in heat removal
Triple seals prevent leakage

Shell
Thread Diameter: 10mm
Thread Pitch: 1.0mm
Seat Type: Gasket
Reach: 12.7mm (1/2")
Hex Size: 5/8" (16mm)
Terminal Type: Threaded Stud
Overall Height: ISO
Gap: .028" (0.7mm)

Center Electrode
Material: Nickel
Type: Standard
Size: 2.5mm
Projection: Non-Projected

Ground Electrode
Material: Nickel
Type: Standard

Specifications
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 6
Torque Specs: Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.

• Mfg Part No: 7023 CR6HS
• Related Part No: 7023 CR6HS
