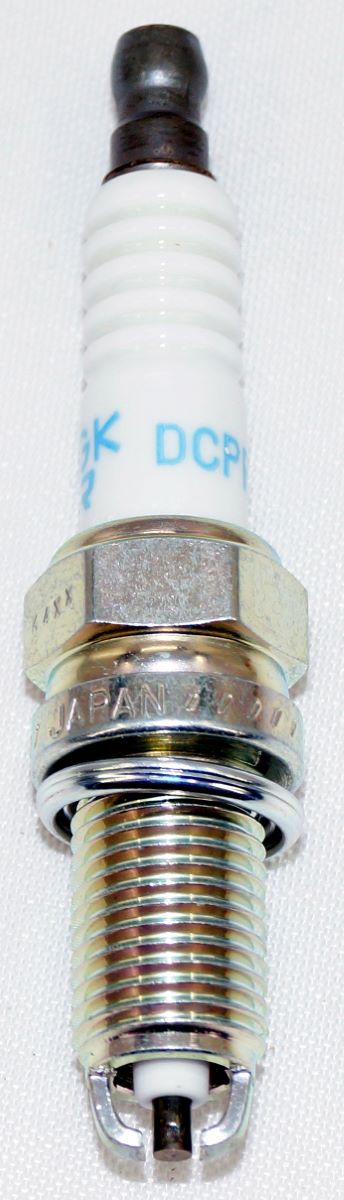

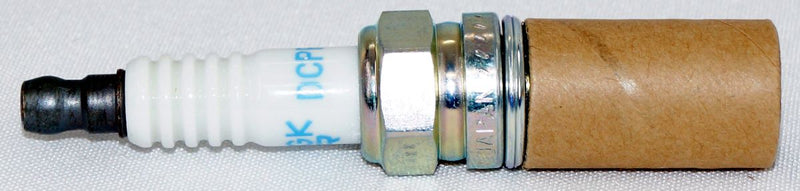

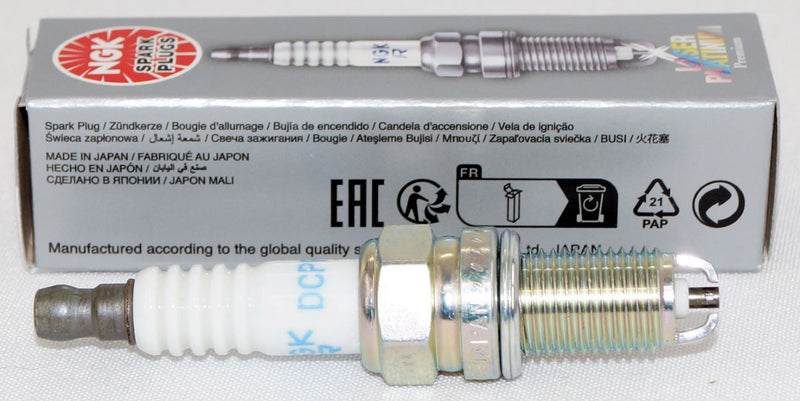

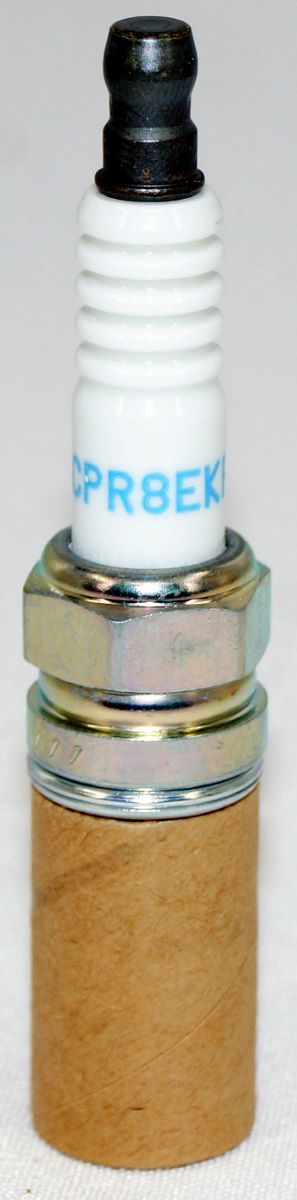

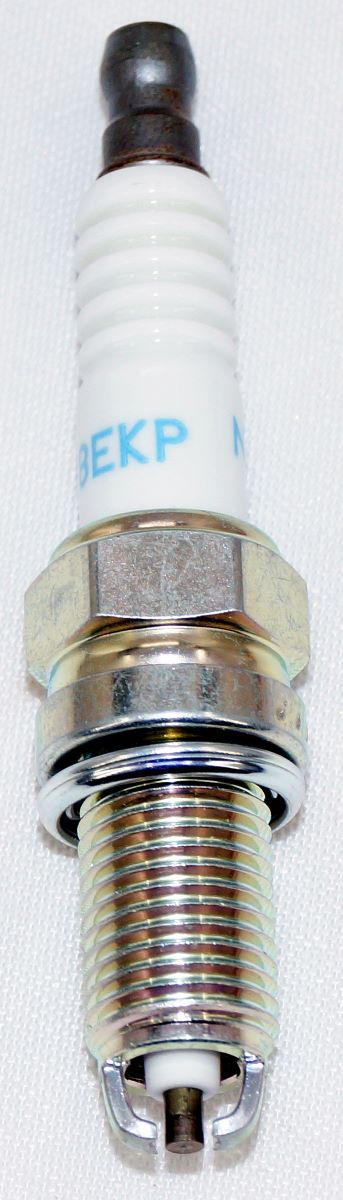

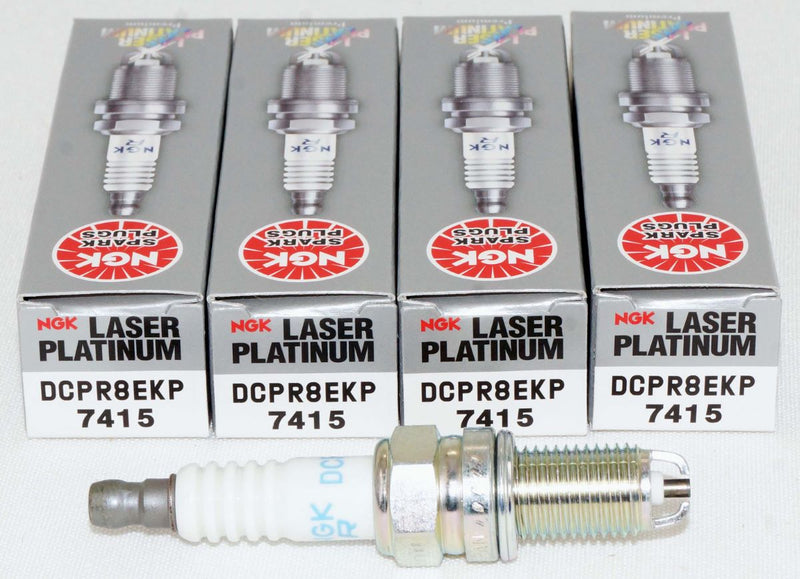

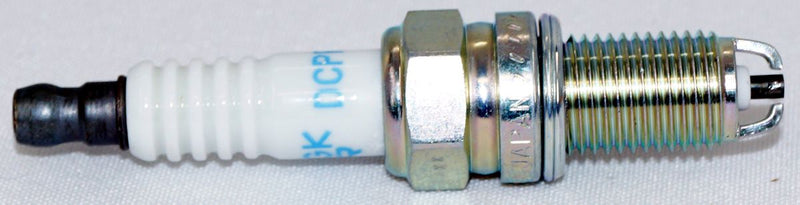

NGK 7415 DCPR8EKP Multi-Ground Spark Plug

NGK 7415 / DCPR8EKP Multi-Ground Spark Plug by NGK. Multi-ground electrodes improve ignition capabilities and are less sensitive to increased voltage requirements due to gap growth. Designed to specific manufacturer ignition requirements, NGK's multi-ground plugs maintain all the features of their standard plugs, including:
Corrugated Ribs to Prevent Flashover
Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
Copper core to aid in heat removal
Triple seals to prevent leakage

Thread Diameter-12 mm
Thread Pitch-1.25 mm
Seat Type-Gasket
Reach-19 mm (3/4")
Hex Size-5/8" (16 mm)
Terminal Type -Solid
Overall Height-ISO
Gap-.035" (0.9 mm)
Material-Platinum
Type-Standard
Size-2.5 mm
Projection-Extended Projection
Material-Nickel
Type-Multi-Ground
Resistor-Yes
Resistor Value-5k Ohm
Heat Range-8
Features-Intermittent Gap
Torque Specs-Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.
Electrode Material-Platinum
Insulator Type-Long Projection
Nominal Gap-0.9 mm

• Mfg Part No: 7415 DCPR8EKP
• Related Part No: 7415 DCPR8EKP
