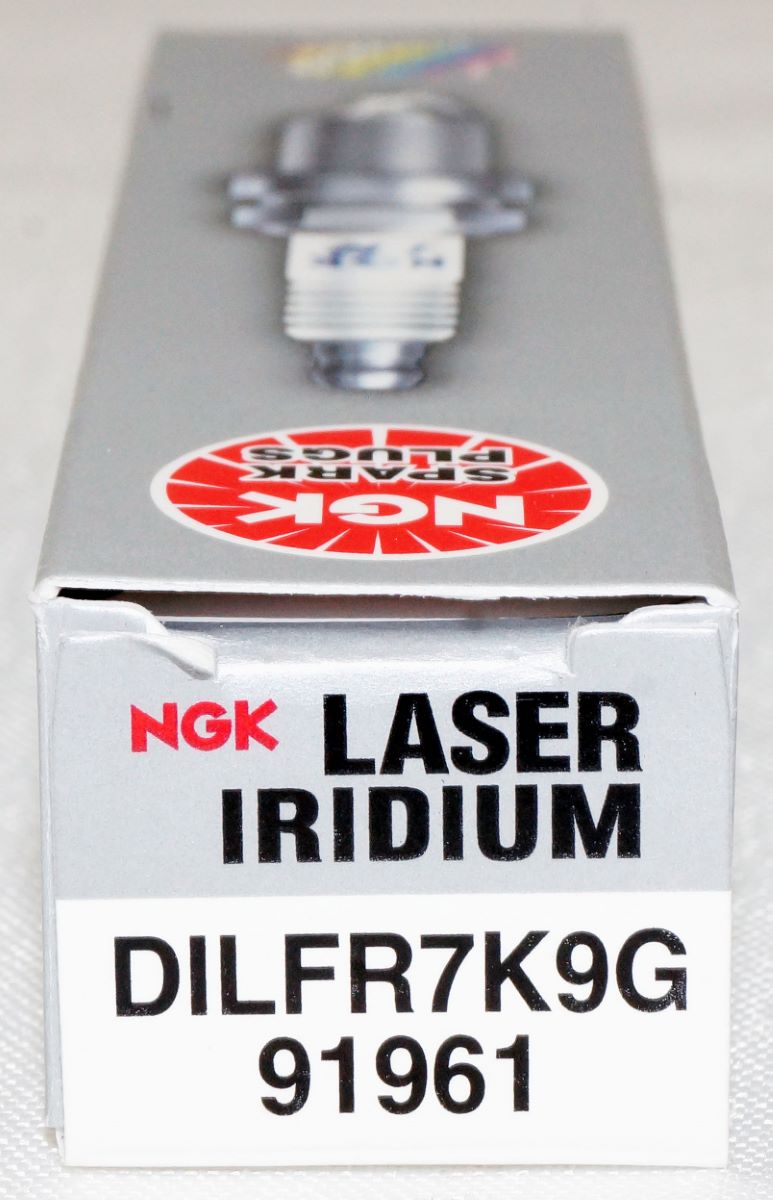

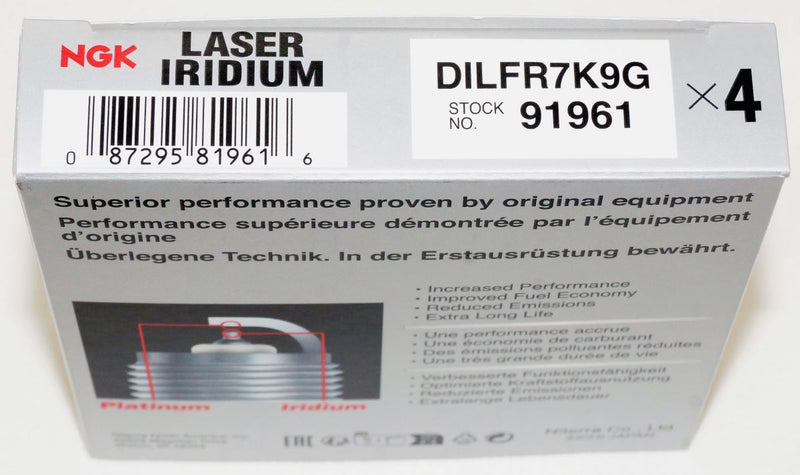

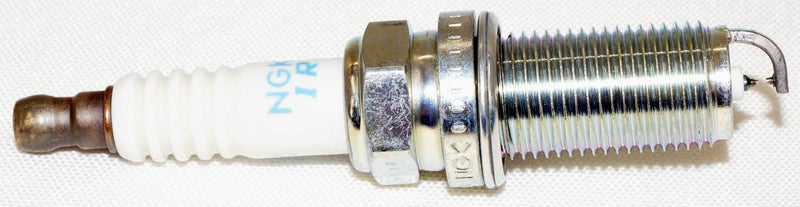

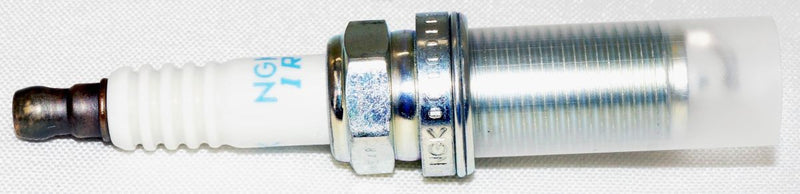

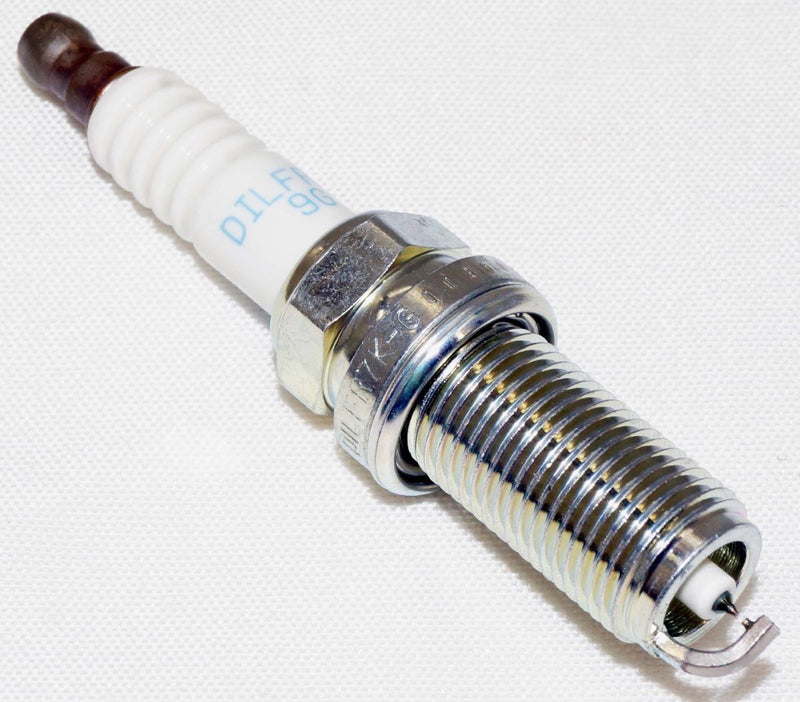

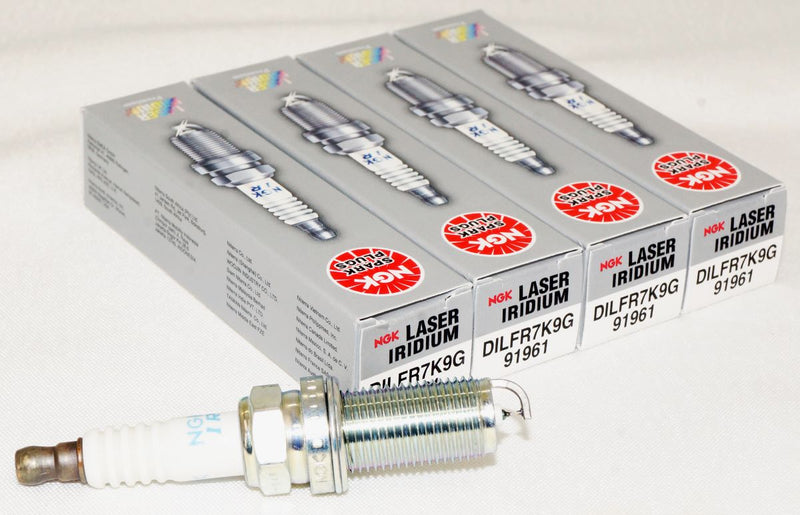

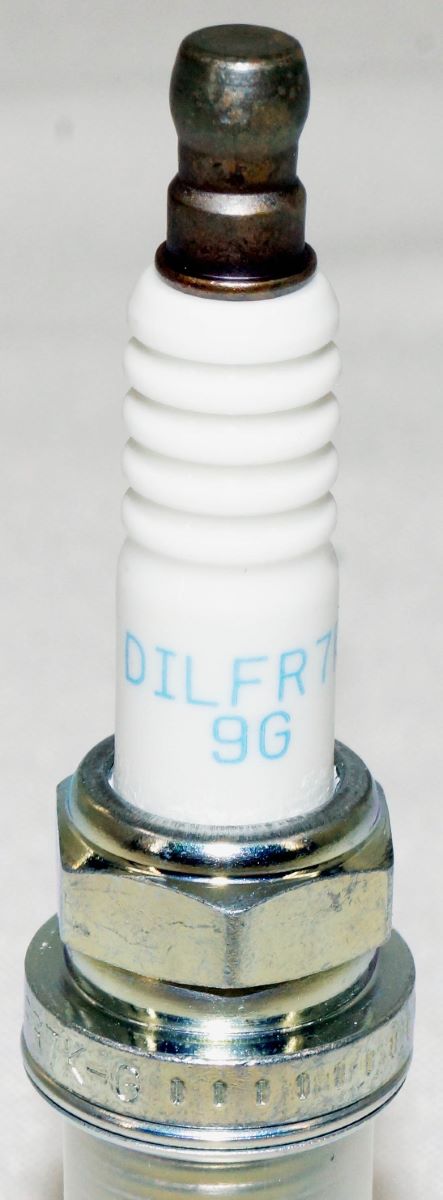

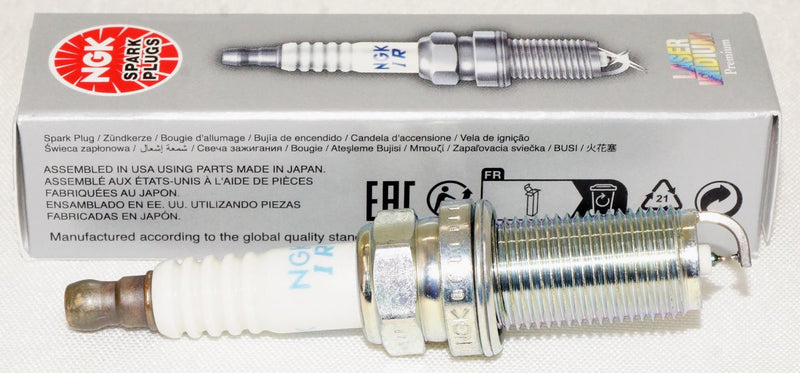

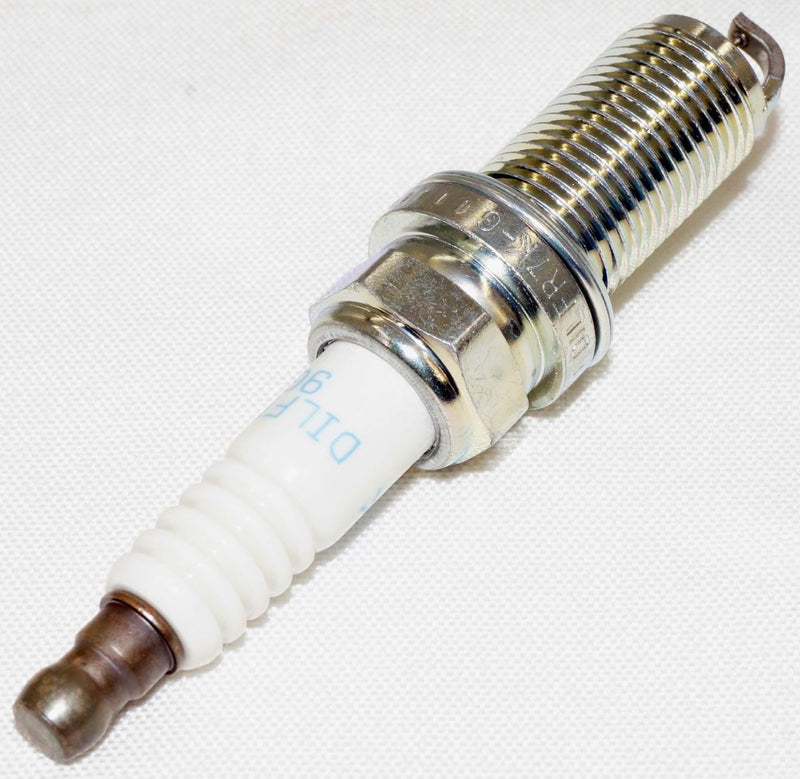

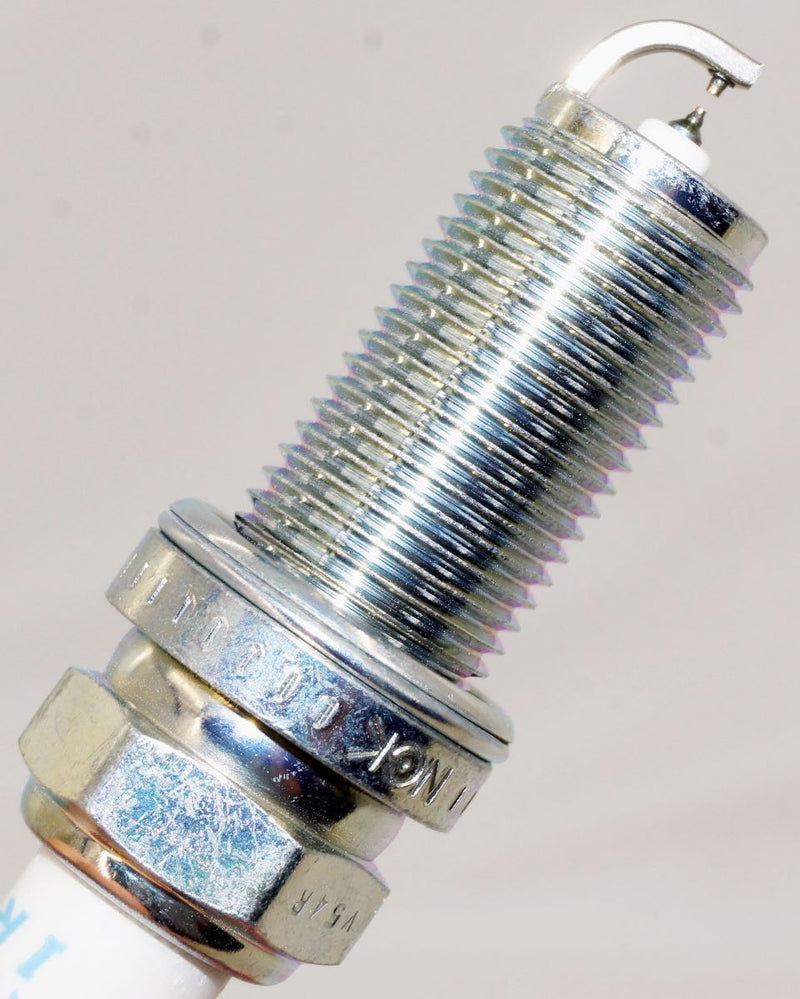

NGK 91961 DILFR7K9G Laser Iridium Spark Plug

NGK single iridium plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Copper core aids in heat removal
Triple seals prevent leakage

Shell
Thread Diameter: 14mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Reach: 26.5mm (1.04")
Hex Size: 5/8" (16mm)
Terminal Type: Solid
Gap: .035" (0.9mm)

Center Electrode
Material: Iridium
Type: Fine Wire
Size: 0.6mm
Projection: Projected

Ground Electrode
Material: Platinum
Type: Fine Wire
Quantity: 1

Specifications
Resistor: Yes
Resistor Value: 5k Ohm
Heat Range: 7
Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

• Mfg Part No: 91961 DILFR7K9G
• Related Part No: 91961 DILFR7K9G
