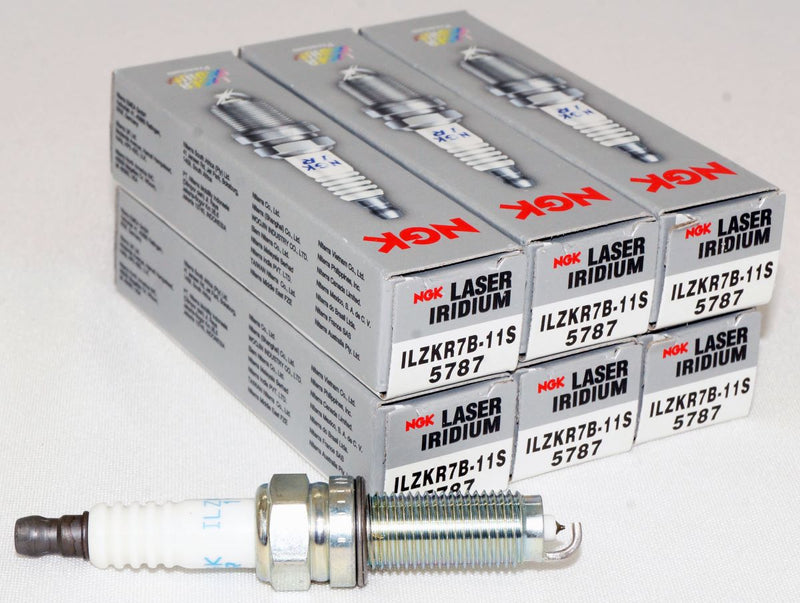

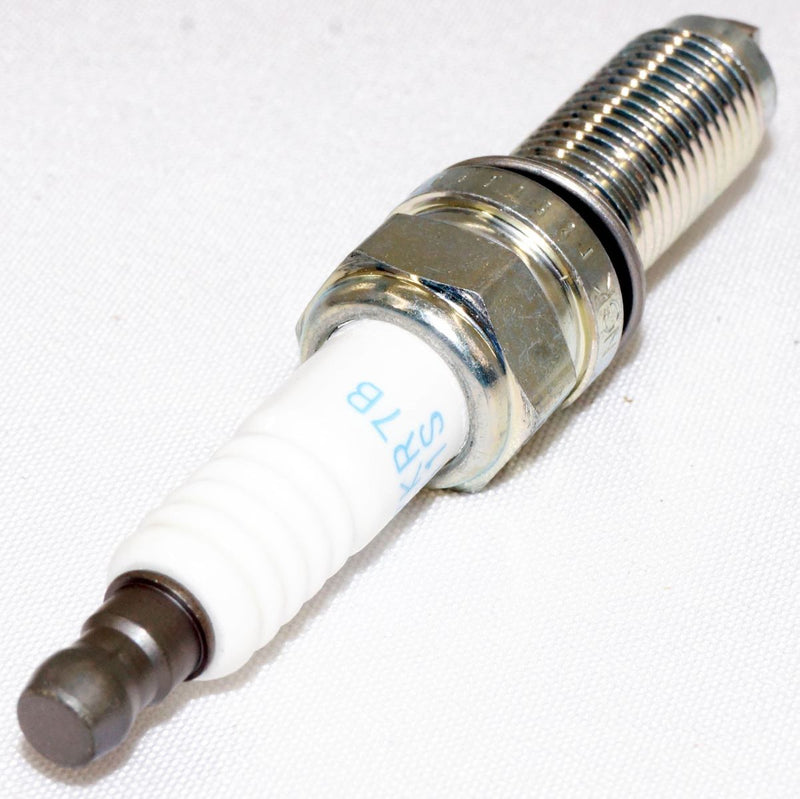

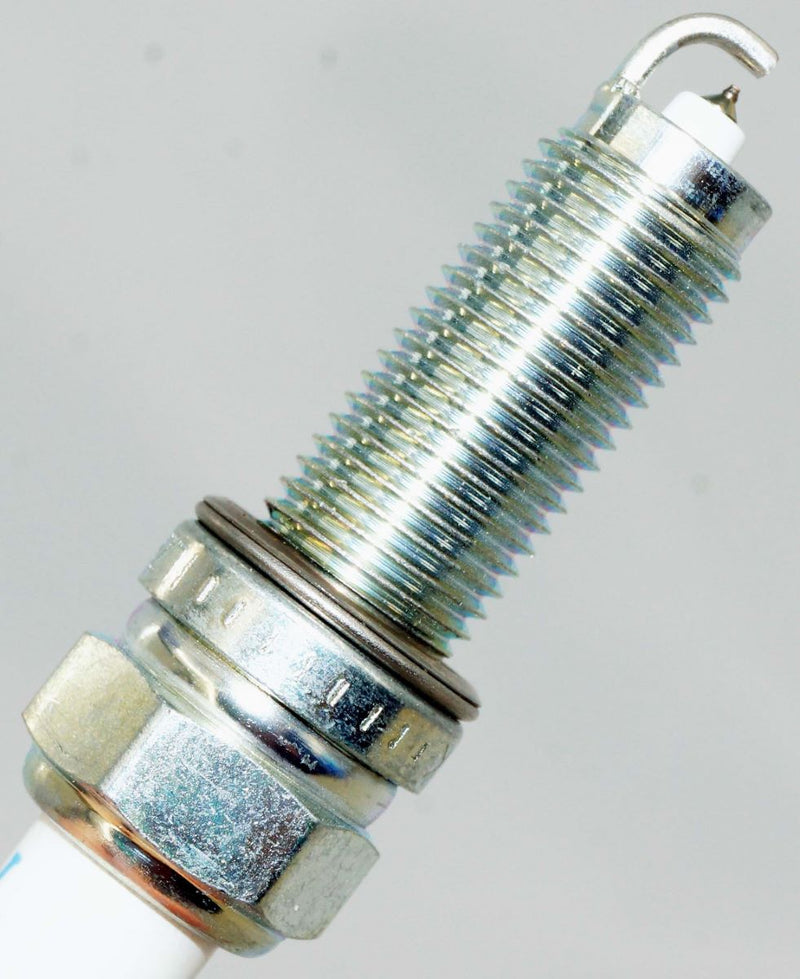

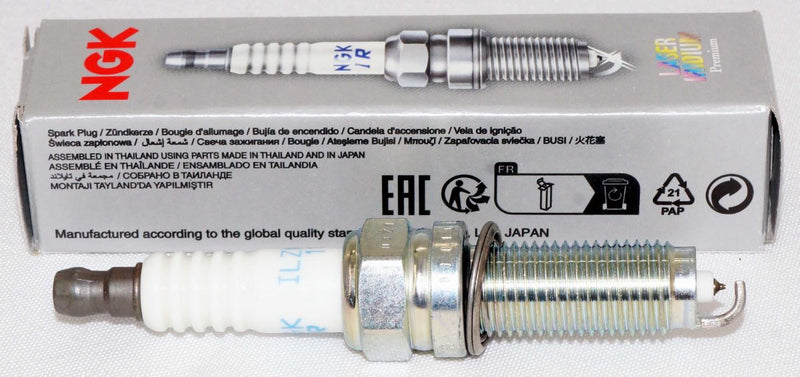

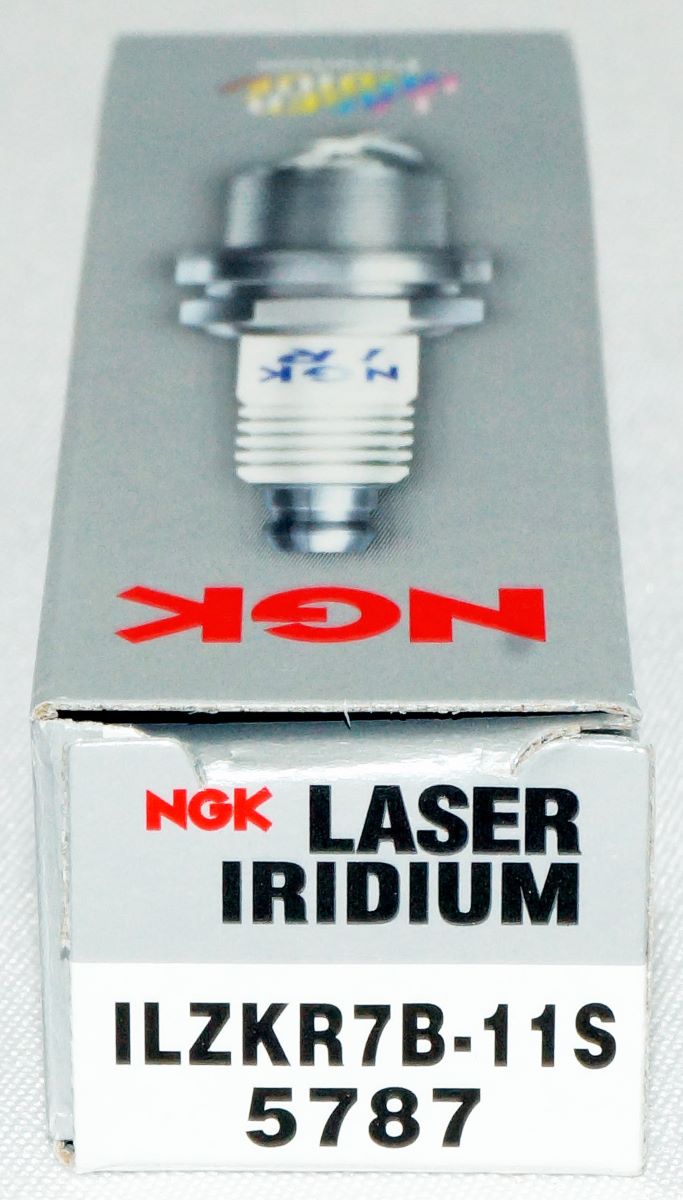

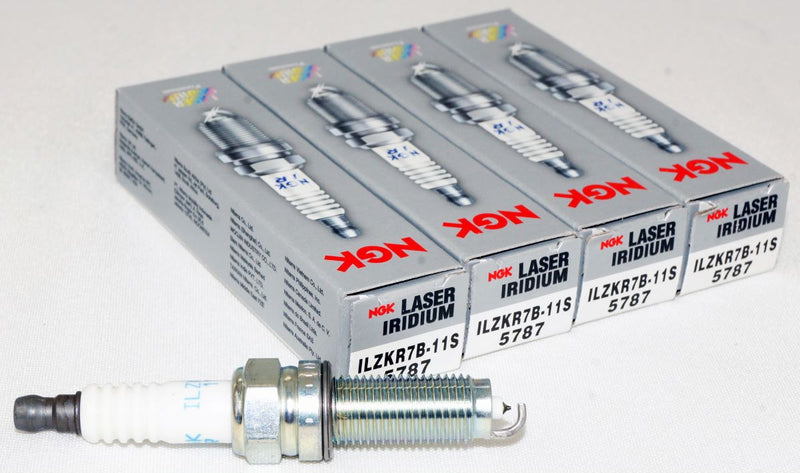

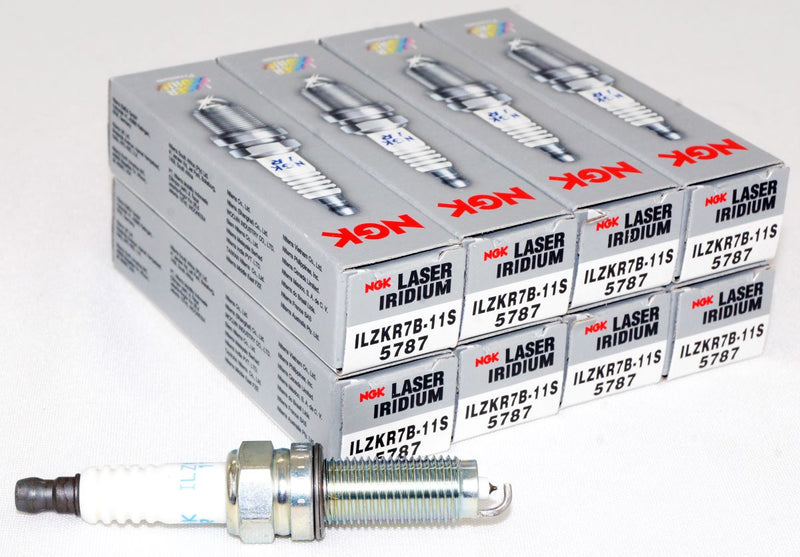

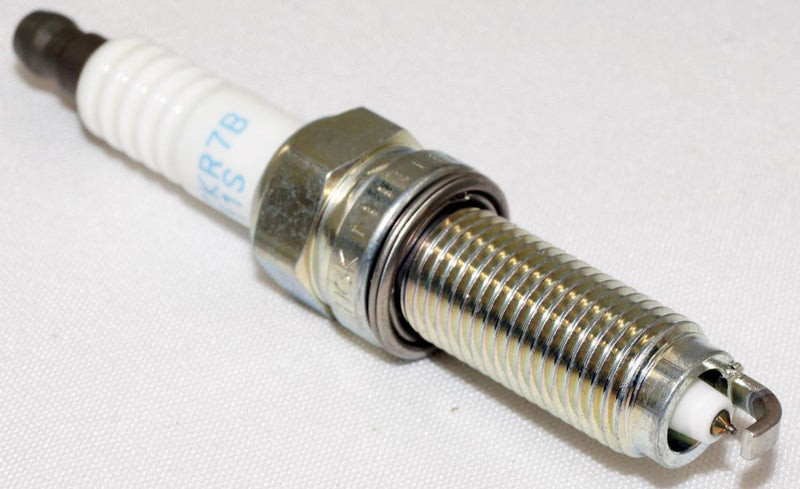

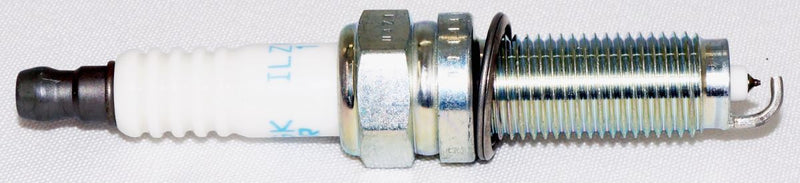

NGK 5787 Laser Iridium Spark Plug - ILZKR7B11S

ILZKR7B11S Laser Iridium Spark Plug (5787) by NGK. Often specified as original equipment, NGK Laser Iridium spark plugs are the best combination of performance and longevity. Iridium tip is six (6) times harder than platinum providing the strongest ignitability and the longest life possible. Most Laser Iridium spark plugs feature a platinum pad on the ground electrode for even wear in DIS ignition systems. OE engineered for specific vehicle applications.

Electrode Material: Iridium
Thread Size: 0.472"
Thread Reach: 26.5 mm
Ground Electrode Quantity: 1
Gap: 0.044"
Spark Plug Seat Style: Flat
Heat Range: 7
Longevity: 80-100k Miles
Thread Diameter: 12 mm
Overall Height: ISO
Resistance: 5 kOhm
Insulator Height: 50 mm
Center Electrode Core Material: Copper Core
Ground Configuration: Standard
Ground Electrode Core Material: Nickel Core
Ground Electrode Tip Design: Standard
Insulator Type: Long Projection
Nominal Gap: 0.044"

Designed for faster starts and quicker acceleration
Better fuel economy and lower emissions
OE approved design
Laser welded iridium center electrode tip
Platinum disc welded to backside of ground electrode
Ideal for applications with DIS (Distributorless Ignition System) “waste spark” ignition systems that require double precious metal spark plugs
Manufactured using triple-gasket sealing process to prevent leakage through the shell
Alumina silicate insulator for strength and optimal heat transfer
Cold-rolled threads for easier removal and installation
Corrugated ribs eliminate misfire causing “flashover”
Trivalent metal plating
Last 80 to 100 thousand miles

• Mfg Part No: 5787 ILZKR7B11S
• Related Part No: 12290-r40-a01 5787 ILZKR7B11S
